Free ShippingProduct Specifications for BatteryMINDer 244CEC2-AA-S3 24 Volt, 4 Amp GILL LT 7000 Series Aviation Battery Charger
| BM Part #: | 244CEC2-AA-S3 |
|---|---|
| Voltage: | 24 Volt |
| Charging Rate: | 4 Amp |
| Input Voltage: | 90-140 VAC, 47-63 Hz |
| Length: | 4.9" |
| Width: | 7.3" |
| Height: | 2.1" |
| Shipping Weight: | 3.60Lbs |
| Warranty: | 5 Year Factory Direct |
| Product Manual: | Download |

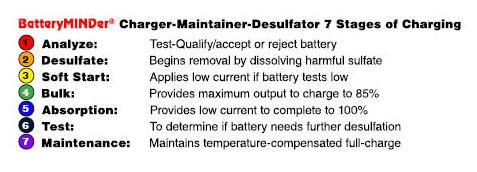

BatteryMINDer Charger-Maintainer-Desulfator 7 Stages of Charging
- Analyze: Test the battery and determine if good or bad.
- Desulfate: Begins removal by dissolving harmful sulfate.
- Soft Start: Applies low current if battery tests low.
- Bulk: Provides maximum output to charge to 85%.
- Absorption: Provides low current to complete to 100%.
- Test: Determines if battery needs further desulfation.
- Maintenance: Maintains temperature-compensated full-charge.
What's in the box:
- Model 244CEC2-AA-S3 Charger-Maintainer-Desulfator
- 6' AC cord, 6' DC cord with quick connector (SAE)
- Auto-Temp Compensation Sensor (Installed)
- 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
- For use with the Gill LT7000 Series & HAWKER-ODYSSEY aviation batteries.
- For other Gill Batteries, please see Item # 244CEC1-AA-S2
- Guaranteed to never overcharge/undercharge. (33°F to 130°F)
- Tested and endorsed by leading Battery makers.
- 100% Full - Time U.S. Patented Pulse-type Desulfation keeps battery free of sulfate or dissolves sulfate completely in older batteries.
- Detects and rejects batteries with bad cells. Terminate charge to prevent out-gassing.
- Maximize battery life and capacity, recovers weak batteries.
- Diagnoses battery’s condition / state-of-charge.
- Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
- Maintain up to 2 batteries at a time. (requires BatteryMINDer® Y-Connector Accessory 210-AY)
- Auto-Restart after power failure.
- Intrusion protected from water and dust per IEC STANDARD IP65.
- Bad cell detection with auto-shutdown.
- Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly.
- Very high efficiency. California CEC Approved. Certified to California Energy Commission Standards.
- Automatically detects input AC power.
- ECO-mode with hi-efficiency / low power consumption. This allows the unit to always remain connected to AC while consuming very low level of electricity.
- Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
- 12 LED indicators show state-of-charge and important status mode / battery condition.
- Rugged, vibration-resistant construction.
- Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
Product Description

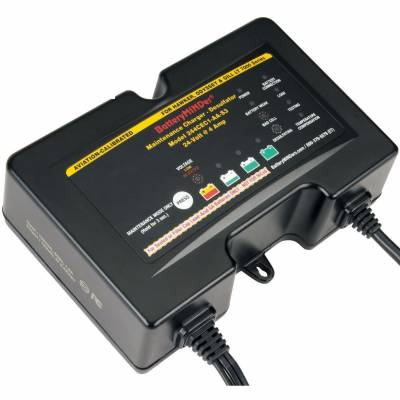

BatteryMINDer® Model 244CEC2-AA-S3: 24-Volt 4 AMP HAWKER-ODYSSEY® Aviation Battery Charger-Maintainer-Desulfator
BatteryMINDer's HAWKER-ODYSSEY® aviation battery specific line of BatteryMINDer® battery chargers-maintainers-desulfators are the most advanced they have ever produced. In addition to charging and maintaining sealed or wet cell (filler caps) HAWKER-ODYSSEY® aviation batteries users can now determine the level of charge remaining in their battery, and if weak and in need of replacement, before going bad. Units test for weak/dead cells and will recover weak or severely discharged batteries that other chargers would reject. Known as the CEC2-AA series they feature advancements in easy to understand battery analysis and condition not previously available in any other single model. Their high efficiency design, controlled by industrially-rated microprocessors, allow continuous operation (24 hrs./day) for less than $0.43/month*. Temperature sensors prevents over/under charging from freezing to 130-F.
SmarTECHnology™ = Advanced Technology made simple to use.
1 Year 100% Money Back Guarantee
5 Year "No Hassle" Warranty.
Cross Reference & Compatibility
Works with Gill LT 7000 Series & HAWKER-ODYSSEY Aviation Batteries.
