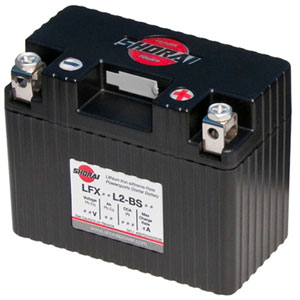

Free ShippingProduct Specifications for Shorai LFX09L2-BS12 Lithium-Iron Powersport Battery
| BM Part #: | LFX09L2-BS12 |
|---|---|
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Capacity: | 3 Ah (9 Ah Equivalent) |
| Type: | Lithium Iron |
| Length: | 4.45" |
| Width: | 2.28" |
| Height: | 3.50" |
| Cold Cranking Amps: | 135 CCA |
| Shipping Weight: | 1.23Lbs |
| Warranty: | 1 Year Free | 5 Year Prorated Factory Direct |
- Ultra light - The cheapest way to shave pounds off your racing motorcycle
- Twice to four times the service life of lead-acid batteries
- Fitted replacement for your OEM battery
- Military spec Carbon Fiber Composite Case
- Faster cranking for better starts
- Super-fast recharge rate
- SAFE! No explosive gasses during charge, no lead, no acid
- Environmentally friendly
- Bolt Size: 10mm bolt with 5mm threads.
- Powersport applications only. Do not install in cars.
Product Description
Shorai's Lithium Iron batteries are the ultimate fusion of light weight and power technologies. The LFX09L2-BS12 battery weighs in at 1.23 pounds and offers 135 CCA. These batteries will require no change to your charging systems and are a drop-in replacement for your original battery (Included shims may be required for installation).
What makes Shorai batteries different? They contain Shorai-proprietary eXtreme-Rate Lithium Iron prismatic cells (chemistry LiFEPO4). They contain no poisonous lead, no dangerous acid, and do not create explosive gases during charge, as traditional Lead-Acid batteries do. Compared to traditional batteries, Shorai lithium batteries are extremely light, have much lower self-discharge rate, do not sulfate, and are environmentally friendly.
Can I use Lead-Acid battery chargers or charger/tenders?
Yes. HOWEVER, you may NOT use a charger/tender if it has an automatic desulfation mode, which cannot be turned off. We have confirmed with Deltran, makers of the Battery Tender brand, that their products do NOT have a desulfation mode, and are therefore OK for use with Shorai batteries.
Can Shorai LFX be mounted in any position?
Yes. There are no liquids in these batteries.
What's the difference between the "equivalent" and "Actual" amp hour capacity?
The manufacturer includes the "equivalent" (PbEq, "lead equivalent") rating to show a more apples-to-apples comparison between the lithium chemistry and the lead-acid battery that you're likely replacing.
The lead-acid capacity rating itself is based on a complete discharge at a low discharge rate. Under actual cranking conditions they will deliver considerably less than spec capacity. And because lead-acid batteries begin sulfating when only a small percentage of the capacity has been used, and their internal resistance rises as they are discharged, the actual capacity which can be used may be as little as 20% of the mfg. rating. Discharge in excess will not only damage the lead-acid battery, it may not allow proper starting as voltage sags.
For example, the Shorai LFX18 12V series have 6Ah cells internally. But, the cells are capable of 80% discharge without damage while still retaining more cranking power. As such, the usable capacity (or "reserve capacity") of an LFX18 12V battery is very close to 18Ah-rated lead acid batteries, while also providing superior cranking and huge weight reductions.
Cold Weather Performance Expectations
Down to about 20° Fahrenheit (-7°C) most users find that they can start normally on first crank. If your headlight comes on at key-ON, it is good for the batteries to flow some current before cranking in cold weather. The suggested headlight-on time before cranking depends on the temperature. If starting at 40°F/5°C, 30 seconds will help wake the battery and increase cranking performance. If at 0°F/-17°C, leave the lights on for 4~5 minutes before cranking. The result will be a better first crank, and longer battery life. If the engine fails to start on first crank, that first crank has warmed the battery, and the second attempt will be much stronger. Other accessories that can be turned on before cranking can also be used for this purpose, such as heated gear, radio, etc... Insuring that the battery is fully charged after storage also improves first-start performance in cold weather.
Customer Reviews
This is my second Shorai, the first was still kicking after 7 years of punishing desert riding. I only replaced it because I ride baja in winter and I wasn't sure about getting another one down there. Battery is amazingly light and powerful, highly recommmended
Based on several year's experience with a Shorai battery in my Ariel Atom, I have nothing but praise for this technology and supplier. It's been trouble-free, obviously light weight, and maintains a charge without charging. It's redefined what a battery should be for me.
Seems to be a great product. My first battery of this type. Cranked strongly on the first try. Unfortunately, I missed the polarity options on this battery. This particular battery had the wrong poles for my XR650L. This bike needs the positive and negative terminals swapped around. Alas I was able to use the battery by laying it on its side. This worked well, but the stock battery support strap (made of painted steel) runs right across the positive terminal. I padded the terminal with plastic and leather to avoid a short. I will have to check often to make sure the insulation remains intact after riding bumpy trails.
Battery Mart had a good price and shipped it quick. I have put these Shorai's in 2 mopeds and two dirt bikes. No complaints so far and it's been over a year on my first one. 2013 Yamaha WR450f and 2014 KTM 300 XCW
Replaced my motorcycle battery with a lithium ion unit. Everything to make it fit was supplied. Much lighter than original battery. No problems so far. I based my choice on reviews of this manufacturer.
Very light weight and powerful. Long warranty for the price paid. 100% satisfied at this point.
Helps make my dirt bike less top heavy.
