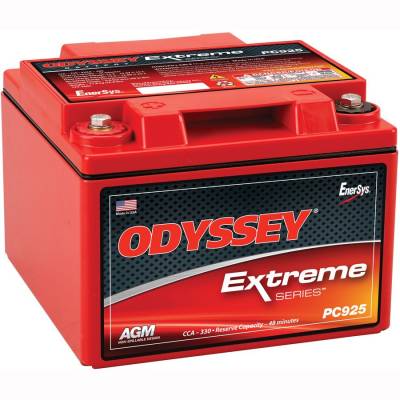

Free ShippingProduct Specifications for Odyssey ODS-AGM28MJ Extreme Powersport Battery with Metal Jacket (PC925LMJ)
| BM Part #: | PC925LMJ |
|---|---|
| Made In: | U.S.A. |
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Capacity: | 28 Ah |
| Type: | AGM |
| Length: | 6.64" |
| Width: | 7.05" |
| Height: | 5.04" |
| Cold Cranking Amps: | 330 CCA |
| Shipping Weight: | 27.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
Additional Specs:
- 330 CCA, 480 MCA, 610 HCA
- 900 Cranking Amps for 5 Seconds
- 53 Minute Reserve Capacity
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- Replaces 278001763, 278001882, 278001882, 515176151, 66010-97C
- More Specs: (Adobe PDF)
- Catalogue number 0765-2028
- Made in the USA
- The Odyssey L Terminal Adapters may be required by some models to connect to the Odyssey battery. (Sold separately)
- For Maintaining This Battery: The Odyssey OBC-6A charger can be used.
- For Ongoing Deep Cycle Recovery: The Odyssey OBC-12A charger is recommended.
Odyssey trademark is the property of Enersys and affiliates.
- Made in the USA. Why it matters:
- Superior craftmanship; rigorously tested; high-quality parts.
- Better warranty
2 Years:- Auxiliary Power Unit (APU)
- Non-engine Start Cycling Applications.
- PowerSports Applications.
- Commercial, Industrial, Marine and Automotive Applications
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
This 12v dry cell battery has the characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! 12v dry cell battery design with resealable venting system. - Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
Product Description
New! Odyssey PC925 with positive terminal reversed.
Direct fit HARLEY DAVIDSON 1997 and later FLHR, FLHT & FLTR battery. Here is a OEM comparison image.
2 Batteries in 1
The Odyssey PC925LMJ battery with metal jacket combines in one box the characteristics of two separate batteries. It can deep cycle (be recharged) as well as provide enormous cranking power.
Military Grade
Only Hawker Odyssey batteries are based on the same battery technology offered by Hawker to the military for aircraft and tank batteries. Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.
Superior cranking and fast charge capability
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as - 40° C. Also, with simple constant voltage charging (alternator or independent charger), there is no limitation on the inrush current, so the user is assured of a fast charge.
- 12v dry cell battery
- With Metal Jacket: Provides a slightly higher operating temperature range, slightly more vibration resistance, and protection again debris that may hit the battery (when used in compatible applications).
- 12 Volt
- 26 Ah @ 10hr rate
- 330 CCA
- 480 MCA
- 610 HCA
- 900 Cranking Amps for 5 Seconds
- 53 Minute Reserve Capacity
- Catalogue number 0765-2028
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- More Specs: (Adobe PDF)
Features:
- 3 to 10 year service life, when properly maintained.
- 99.9% pure lead providing minimal plate corrosion
- Explosion proof
- Corrosion proof
- 2 to 3 times the cranking power of equivalent size battery
- Spill and leak proof
- Superior vibration resistance
- Fully Charged out of the box
- When fully charged can be stored for up to 2 years at 77° F
- May be installed on its sides at any angle without sacrificing performance attributes
- Military grade version of the Hawker Genesis
- 2 Year Full Powersports Warranty
Note: Please check dimensions and terminal configuration to ensure this is the proper battery for your application.
 | Tech Tip: Special InstallationsMounting flexibility is one of the Odyssey battery's strongest features. It may be installed in just about any orientation (the only exception being inverted) without sacrificing any of its world-class performance attributes. Have no fear about acid spillage-- the battery recycles internal gas during operation/charging and the valve regulated design eliminates the need for an acid vent tube. All in all, this offers two awesome benefits:
|
Cross Reference
Customer Reviews
This is the second time I have purchased this battery from Battery Mart. Last battery was 5 years old and performing flawlessly. I replaced it precautionary as I am heading out on a long trip.
It is a difficult install on a tri glide ultra as the factory battery terminals are vertical and this battery terminals face forward. I managed with the enclosed brackets but it was a struggle.
I hope this battery outlasts the motorcycle.
Great product for the best price. Arrived in a timely manner and in good shape! Excellent to do business with!!
If you own a Harley this is the battery for you. Price and warranty are great for what the other battery companies have to offer. If you're looking for a battery you just found it. Ride Safe!!
I got this same battery over 6 years ago from Battery Mart and it is still good but I am so used to battery's only lasting 2 or 3 years (even Optima's now) that I went ahead and got another one. This has to be the best battery out there! Thanks Battery Mart!
Read a few bad reviews about cheap hardware and not easy install,i am glad i took them with a grain of salt. Very easy install in my ultra. And hardware was fine.used the L brackets and longer terminal screws for the top.
Quick shipping. Received in 2 days
The PC925LMJ battery is an upgrade to my side by side and along with the strap UTV inc makes for the X3, it was an easy install. Glad it can be installed on it's side! It's working fine and I'll likely forget about it for a few years now. Thanks.
