MADE IN THE USA!

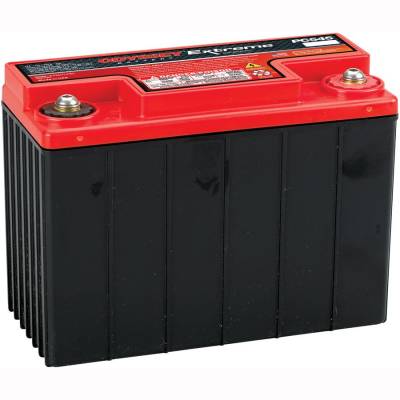

Free Economy ShippingProduct Specifications for Odyssey ODS-AGM15L Extreme Powersport Battery (PC545)
| BM Part #: | PC545 |
|---|---|
| Brand: | Odyssey |
| Made In: | U.S.A. |
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 150 CCA |
| Capacity: | 12 Ah |
| Type: | AGM |
| Length: | 6.9" |
| Width: | 3.3" |
| Height: | 5.1" |
| Terminal Height: | 4.9" |
| Shipping Weight: | 12.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
| Datasheet: | Download |
Additional Specs:
- Drycell Battery
- Without Metal Jacket
- 12 Volt
- 12 Ah @ 10hr rate
- 150 CCA, 220 MCA, 280 HCA
- 460 Cranking Amps for 5 Seconds
- 18 Minute Reserve Capacity
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- Catalog number 0770-2019
- The Odyssey L Terminal Adapters may be required by some models to connect to the Odyssey battery. (Sold separately)
Odyssey trademark is the property of Enersys and affiliates.
- Made in the USA. Why it matters:
- Superior craftsmanship; rigorously tested; high-quality parts.
- Better warranty
2 Years:- Auxiliary Power Unit (APU)
- Non-engine Start Cycling Applications.
- PowerSports Applications.
- Commercial, Industrial, Marine and Automotive Applications
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system. - Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
Product Description
2 Batteries in 1
The Hawker Odyssey PC545 battery combines in one box the characteristics of two separate batteries. It can deep cycle (be recharged) as well as provide enormous cranking power.
Military Grade
Only Hawker Odyssey batteries are based on the same battery technology offered by Hawker to the military for aircraft and tank batteries. Odyssey batteries are of military grade and have endured rigorous tests that demonstrate their overall ruggedness and exceptional tolerance of mechanical abuse.
Why Buy the Odyssey ODS-AGM15L Extreme Powersport Battery (PC545)
Discover even more benefits to buying the PC545 battery:
- 99.9% pure lead providing minimal plate corrosion
- Explosion proof
- Corrosion proof
- Fully charged out of the box
- When fully charged, it can be stored for up to 2 years at 77° F
- May be installed on its sides at any angle without sacrificing performance attributes
- Military-grade version of the Hawker Genesis
- 2 Year Full Powersports Warranty
Note: Please check dimensions and terminal configuration to ensure this is the proper battery for your application.
Frequently Asked Questions
How long can the Odyssey ODS-AGM15L be stored for without recharging?
A: A fully charged ODS-AGM15L battery can be stored for up to 24 months. We recommend periodically checking its voltage with a battery tester and recharging if needed to avoid any permanent damage.
What is the difference between the ODS-AGM15L and the Odyssey PC545?
A: Nothing. They are the same battery. The manufacturer has updated the part number from PC545 to ODS-AGM15L. If you are replacing a PC545 battery, the ODS-AGM15L is a direct replacement.
What are common applications the ODS-AGM15L is used for?
A: This battery is ideal for Powersports vehicles, including:
How long will my Odyssey PC545 last?
A: This battery is designed to last for 3 to 10 years. Actual lifespan depends on usage, maintenance habits, and climate. When replacement is eventually needed, you can send the old battery back to us, and we will recycle it for you.
Do I need a special charger for my Odyssey ODS-AGM15L battery?
A: We recommend using an AGM-specific or Odyssey-branded charger. This is the best way to make sure you are getting optimal performance and extending your battery's life. Check out our guide on finding the perfect charger for your Odyssey battery.
Cross Reference & Compatibility
Customer Reviews
I just replaced an Odyssey PC 545 (July 2025) that I installed in my Kawasaki KLR 650 back in 2008. It finally gave up after 55000 miles and 17 years of extreme temperatures and lots of vibration. I highly recommend Odyssey Batteries.
Best battery made. Lasts a long time, no leaks, no problems
Just what I needed and fast shipping thanks Battery mart!!!
Installed this in Nov of 2001, now at 13 1/2 years and it might finally be time to replace it. I’ve had it in an 09 RZR 800 and always on a tender when not being used. The CCA, AH, and reserve mins are all less than the larger stock battery it replaced and it’s still held up. I used this one because it’s only 12lbs vs the 30ish of the stock lead acid battery. Currently on a charger in repair mode just to see, but it’s probably time!
It finally died. Had this battery in my dragbike for several years then moved it to my ultralight plane. Always kept it on a charger when not in use. It lasted a total of 10 years. Ordering a new one. Great product!!
I built a VW powered experimental airplane and I selected this battery for it. I have more than sufficient torque to turn over the engine and then provide power to my EFIS and EMS screens. It is helped by a 20A alternator and provides a nice steady 12.4VDC for all of my electrical needs.
I've been using these batteries for a few years now with excellent results! Sadly, even the best age out of service. Time to replace and Battery Mart advertised the best price and excellent shipping. Battery Mart is certainly my #1 'go to' source. Thanks again
