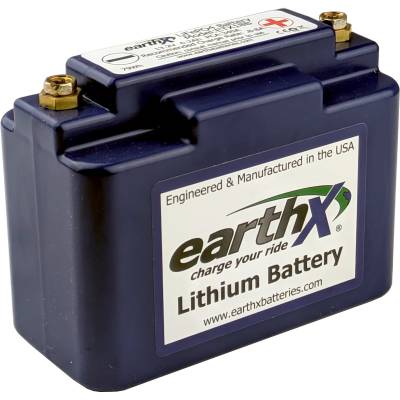

Product Specifications for EarthX ETX18B High-Performance Powersports Lithium Battery
BM Part #: | LTX18B |
---|---|
Made In: | U.S.A. |
Voltage: | 13.2 Volt |
Capacity: | 6.2 Ah |
Type: | LiFePO4 |
Length: | 5.3" |
Width: | 2.6" |
Height: | 4.1" |
Cold Cranking Amps: | 230 CCA / 340 PCA |
Shipping Weight: | 2.20Lbs |
Warranty: | 2 Year Factory Direct |
Product Manual: | Download |
Datasheet: | Download |
Typical Charging Times
Charging Amps | Charging Time |
1 amp | 6 hours |
5 amp | 1.2 hours |
8 amp | 45 min. |
- Made in the USA. Why it matters:
- Superior craftmanship; rigorously tested; high-quality parts.
- Due to shipping regulations regarding shipping lithium batteries, the EarthX batteries can only be shipped via FedEX or UPS Ground.
- Includes terminal adapter kit (Item # MB-ADAPTER)
- Extremely light weight, 70-80% lighter than lead acid batteries.
- Very low self-discharge rate, it can hold a charge for the entire off-season (over six months) except in bikes with continuous draws such as a Harley.
- Environmentally friendly, no hazardous lead or acid, non poisonous, non-toxic.
- 4,000 charge cycle life versus 350 charge cycle life of a lead acid battery. Can last up to eight years!
- Maintenance free.
- Fast charging (as little as 30 minutes).
- Higher voltage while cranking means faster starts.
- Wide operating temperature range, will not freeze or boil-over.
- Made in the USA with imported cells
Product Description
Engineered and assembled in the U.S.A.
EarthX Lithium batteries, Lithium Iron Phosphate (LiFePO4), are designed to be a light-weight, maintenance free replacement of your standard lead-acid battery. These batteries will work with all vehicle charging systems and "modern" lead-acid battery chargers, thanks to the exclusive built-in electronics (Battery Management System, BMS). No other motorsport lithium battery offers built-in electronics which protect it from over-discharging or over-charging while keeping the cell's charge level balanced.
EarthX batteries are an exceptional value given the fact they can last four times longer than your conventional lead-acid battery, lasting up to 8 years. The battery includes a full 2 year warranty (not prorated like others). Your satisfaction is 100% guaranteed with EarthX's Factory Direct warranty!
What Makes EarthX Different?
- Built-in circuitry (Battery Management System, BMS) to ensure the charge levels are equally balanced 100% of the time for optimal performance and life.
- Built-in circuitry to protect from over-charging and over-discharging
- No special cell balancing charger needed due to our built-in BMS.
- Custom designed cells for maximum cranking amps, lightest on the market and up to an 8 year life span.
- Cranking amps are rated using an American standard (SAE), not a Chinese standard so our CCA rating is equivalent to existing lead acid batteries.
- Torture tested to extreme temperatures (-22F to 140F) and vibration (2G 25hz).
What's the difference between the "equivalent" and "Actual" amp hour capacity?
The manufacturer includes the "equivalent" rating to show a more apples-to-apples comparison between the lithium chemistry and the lead-acid battery that you're likely replacing.
In performance and real life usability for lead acid starting batteries, they only use ~30% of the stated amp hours before the voltage drops so low you can not start your vehicle. Lithium batteries, however, have a 98% depth of discharge.
For example, the EarthX ETX36 is a replacement for a YTX20 battery, which has 18ah capacity. The amount of usable amp hours are [18ah x 0.3 = 5.4ah]. The ETX36 uses a 12.4ah lithium cell which is actually 7 amp hours more than the lead acid battery it's replacing.
Cross Reference
Customer Reviews
I was using Ballistic Battery's in my 1974 kick only Harley sportsters that I converted to electric start, i wanted to keep the original battery boxes, with Ballistic I had mixed results, with the EarthX it spines the old iron head with little effort, I am a EarthX fan for sure
Product is great. It's light and compact and very powerful. Started my 1850 V-twin Roadliner up very easily. They give you spacer cushions if you are replacing a leaf acid battery. Would definitely but from Battery Mart again.
I upgraded from a Shorai battery to the EarthX after years of weak starting in cold weather. I've only had it installed for a week but used it at about 40 deg F. and have been pleased with its performance. I'm also looking forward to its internal cell maintenance. My old battery required a special charger and procedure to balance cell charge.
Cranks my Formula Vee very well, and saved me 13 pounds over my previous battery.
granted it is new ,we will see in a couple of years,keeping my fingers crossed john m
This may very well be the lightest battery in the world ? I use the battery to power my Lowrance hds gen 3 fish finder on my kayak . The power draw is less than 1 amp per hour and since this battery is 18 amp equivalent , I should have no problems running the meter all day . Since the battery is new, I really can not comment on the life cycle . I will be putting the battery through constant discharging and recharging , and the manufacturer is claiming that it is superb in this category . The fact that the battery is so super light really pleases me , because it allows me to keep the overall weight of the kayak low . Less weight = more speed , and less fatigue throughout the day . I have another lightweight battery from different a manufacturer that is 15 amps and weighs almost double of this battery . Would I recommend the use of this product ? Yes . In time we will see how it fairs under the extreme torture I will be putting it under . I sold my high performance bike , but this would be a great product for someone trying to shave weight.
