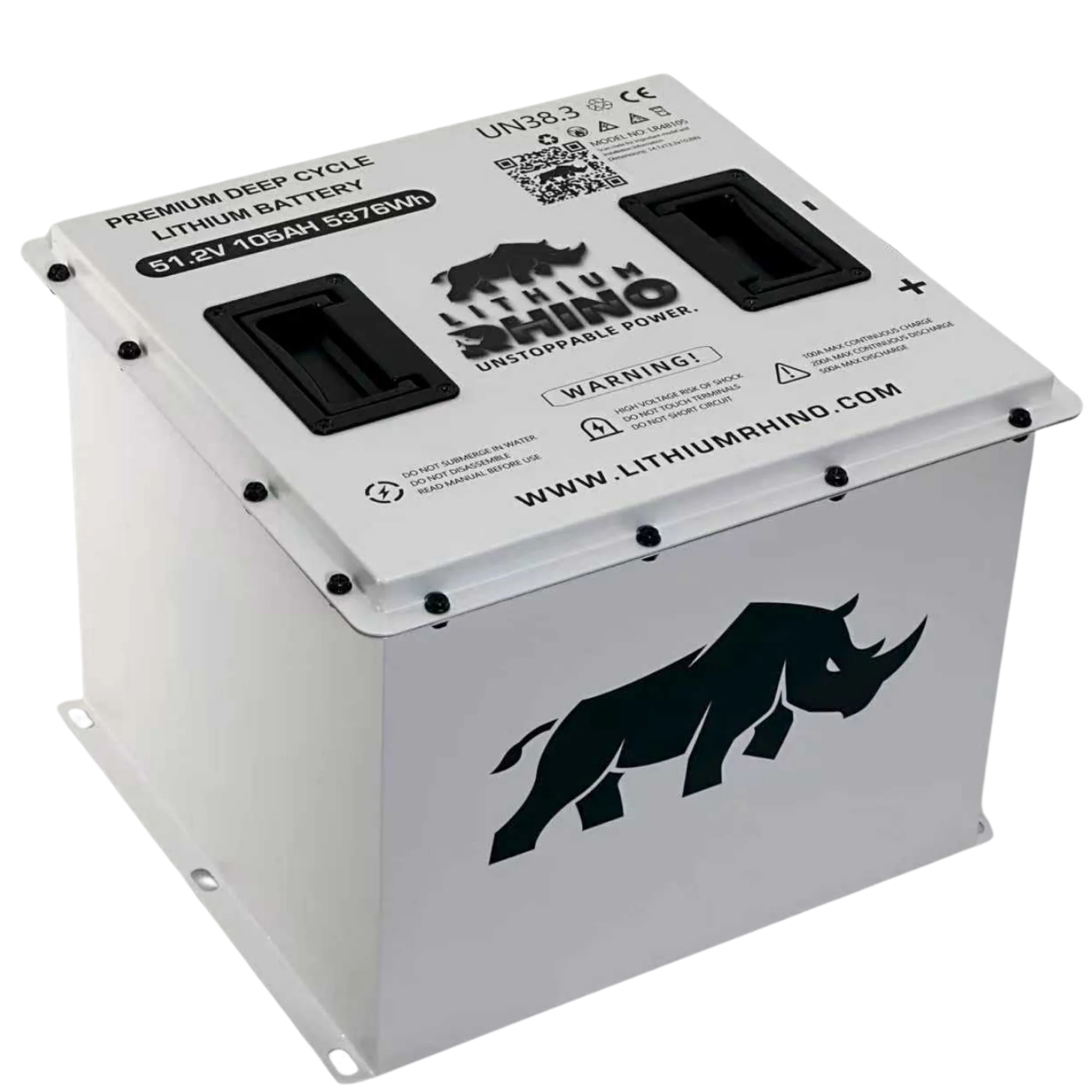

Product Specifications for 48V 105Ah Lithium Rhino CUBE Conversion Kit
| BM Part #: | LR51V105AH-CUBE |
|---|---|
| Voltage: | 51.2 Volt |
| Capacity: | 105 Ah |
| Energy Capacity: | 5376 Wh |
| Type: | LiFePO4 |
| Length: | 14" |
| Width: | 13.3" |
| Height: | 10.8" |
| Shipping Weight: | 151.00Lbs |
| Warranty: | 8 Year Factory Direct |
- Compact CUBE Design: Fits tight battery trays, including older Club Car DS and 2004-2008 models.
- Full 105Ah Capacity: Delivers 50 miles of range per charge, matching our standard 105Ah kit's power.
- Lightweight Build: At 105 lbs, it's less than half the weight of a lead-acid battery bank.
- Complete Kit: Includes the charger, LCD gauge, wiring, mounting hardware, and safety gear you need.
- Smart Monitoring: Free Bluetooth app shows live voltage, range, and battery health from your phone.
- Long-Term Value: Backed by an 8-year warranty and rated for 6,000+ charge cycles.
Product Description
If you've ever tried to fit a golf cart battery kit into an older Club Car DS or a 2004 to 2008 model with that center control panel sitting right in the battery bay, you already know the problem: most "universal" kits just don't fit. The 48V 105Ah Lithium Rhino CUBE was built to solve exactly that.
It's the same full-power 105Ah lithium pack as our standard conversion kit, just repackaged into a smaller, more compact case. That means you still get 50 miles of range and all-day power, but now it slides into tighter trays and sits on either side of that center control panel without you having to relocate anything.
One Battery, Full-Day Power
Lead-acid banks lose steam as the day goes on, especially uphill or with a full load. The CUBE's LiFePO4 cells hold a constant voltage from a full charge down to nearly empty, so your cart drives the same at hole 18 as it did at hole 1.
Built to Disappear Into Your Cart
At 105 lbs and roughly 14 x 13.1 x 9.3 inches, the CUBE trims well over 100 lbs of dead weight compared to a lead-acid bank while taking up meaningfully less space than our standard 105Ah kit. That's a real advantage if your cart's battery bay is tight, oddly shaped, or already crowded with a controller panel.
Every kit ships with the charger, wiring, mounting hardware, and safety gear you need, so there's no extra trip to the parts store. Most owners have it installed and running in a single afternoon.
Set It and Forget It
Once it's in, maintenance basically disappears. No more topping off water, no more corroded terminals, and no more watching your range shrink year over year. Just plug in the 25A smart charger and you're back to full power in hours, not overnight.
Backed by an 8-year warranty and rated for 6,000+ charge cycles, the CUBE is built to be the last battery your cart needs. If you've been putting off a lithium upgrade because nothing seemed to fit right, this is the kit that finally does.
Order your 48V 105Ah Lithium Rhino CUBE Conversion Kit today and give your cart a battery that fits, and lasts.
Choose the Right Rhino for Your Ride
Compare our three 48V lithium conversion options to find the best fit for your driving habits.
| Feature | 48V 50Ah (Standard) | 48V 65Ah (Extended) | 48V 105Ah (High-Capacity) |
|---|---|---|---|
| Tier | GOOD | BETTER | BEST |
| Estimated Range | 20 - 25 Miles | 27 - 35 Miles | 50 - 65 Miles |
| Continuous Power | 100A | 150A | 200A |
| Peak Power (30s) | 150A | 300A | 500A |
| Charger Included | 15-Amp Smart | 20-Amp Smart | 25-Amp Smart |
| Ideal For | Occasional golf & local cruising. | Daily neighborhood use & 36 holes. | Steep hills, long commutes & utility. |
| Warranty | 5-Year Limited | 8-Year Limited | 8-Year Limited |
| Item # | LR51V50AH | LR51V65AH | LR51V105AH |
Frequently Asked Questions
What's the difference between this and your standard 105Ah kit?
A: Same battery, different shape. The CUBE holds the same 105Ah/5,376Wh capacity and delivers the same 50-mile range, but it's built in a smaller, repackaged case at 105 lbs versus 151 lbs, so it fits into trays the standard kit can't.
Will this fit my Club Car DS or older cart with a center control panel?
A: Yes, that's exactly what the CUBE was designed for. Its compact footprint slides into either side of the battery tray on older Club Car DS and 2004-2008 models without you needing to relocate the center control panel.
How long does installation take, and do I need a professional?
A: Most owners finish the swap in an afternoon using basic hand tools. The kit includes mounting hardware, wiring, and a removal strap for your old batteries, so no professional installer or fabrication is required.
Can I install a 48V CUBE kit in a 36V golf cart?
A: No. This kit is built for 48V systems only. Installing it in a 36V cart can damage your motor and controller, so confirm your cart's voltage before ordering.
What should I do with my old lead-acid batteries?
A: Most local battery and auto parts shops will recycle lead-acid batteries for free, and some may pay scrap value. Check with a local recycler once your old batteries are out of the cart.
