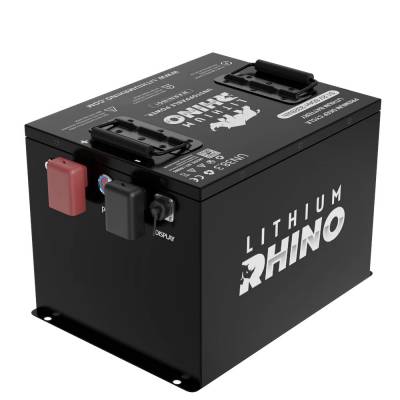

Product Specifications for 48V 65ah Lithium Rhino Conversion Kit (27+ Mile Range)
| BM Part #: | LR51V65AH |
|---|---|
| Voltage: | 51.2 Volt |
| Capacity: | 65 Ah |
| Type: | LiFePO4 |
| Shipping Weight: | 73.00Lbs |
| Warranty: | 8 Year Factory Direct |
- True Drop-In Ready Design: Specifically engineered to replace your heavy 48V lead-acid battery set with a single, compact unit that fits most standard battery trays.
- Massive Weight Reduction: At only 63 lbs, this battery is nearly 300 lbs lighter than lead-acid equivalents, significantly boosting your cart's speed, agility, and braking response.
- Extended Drive Range: Delivers a reliable 27+ mile range on a single charge—more than enough for 36 holes of golf plus a trip around the community.
- Smart Performance Monitoring: Includes an LCD Touch Screen and Bluetooth connectivity to the Lithium Rhino mobile app for real-time tracking of voltage, range, and battery health.
- Unmatched Longevity: Rated for 6,000+ charge cycles and backed by a robust 8-year warranty, providing over a decade of worry-free power.
Product Description
Transform Your Ride with the 48V 65Ah Lithium Rhino Conversion Kit
Say goodbye to the "dead weight" of lead-acid and hello to the future of golf cart power. The 48V 65Ah Lithium Rhino Conversion Kit is the ultimate mid-range solution for cart owners who want the perfect balance of performance and value. This kit is designed for standard and stock carts reaching speeds up to 30mph, offering a seamless "Drop-In" installation that takes only minutes.
Performance You Can Feel
By shedding approximately 300 lbs of weight from your cart, the Lithium Rhino instantly improves your vehicle's power-to-weight ratio. You'll experience faster acceleration, better hill-climbing torque, and less strain on your suspension components. With 150A continuous discharge and 300A max discharge, this battery provides consistent, full-speed power whether you are at 100% or 20% charge.
The "Everything You Need" Kit
No more running to the hardware store or searching for extra cables. This comprehensive conversion kit includes every component required for a professional-grade installation, including an ultra-fast 20 Amp smart charger that can fully replenish your battery in under 4 hours. The addition of the LCD Touch Screen mount ensures you always have a digital eyes-on view of your remaining capacity.
What's Included in the Box:
- 48V 65Ah Lithium Rhino Battery
- High-Output Smart Charger (20A)
- LCD Touch Screen & Dashboard Mount
- Heavy Gauge Connection Wires
- Charge Port Adapter
- Lead-Acid Removal Strap & Mounting Hardware
- Safety Gear (Glasses & Gloves)
Lithium Rhino vs. Standard Lead-Acid
| Feature | Lithium Rhino (48V 65Ah) | Standard Lead-Acid Set |
|---|---|---|
| Weight | 63 lbs (Single Unit) | 350 - 450 lbs (6-8 Batteries) |
| Drive Range | 27+ Miles | 12 - 18 Miles |
| Lifespan | 10+ Years (6,000+ Cycles) | 3 - 5 Years (500 Cycles) |
| Maintenance | Zero (Sealed LiFePO4) | High (Watering & Acid Cleaning) |
| Warranty | 8-Year Limited Factory Warranty | 1 - 2 Years |
10-Year Estimated Cost Savings
While lithium has a higher upfront cost, it is significantly cheaper over the life of your golf cart. Here is how the math breaks down over a 10-year period:
| Expense Category | Lithium Rhino 65Ah | Lead-Acid Battery Set |
|---|---|---|
| Initial Purchase | $1,699.00 | $1,000.00 |
| Replacements (Years 4 & 8) | $0.00 | $2,000.00 |
| Maintenance Supplies | $0.00 | $250.00 |
| Total 10-Year Cost | $1,699.00 | $3,250.00 |
Total Estimated Savings: $1,551.00
*Calculations based on average market prices for a premium lead-acid set and scheduled replacements every 4 years.
Technical Specifications:
- Voltage: 48V (Nominal)
- Capacity: 65Ah
- Weight: 63 lbs
- Chemistry: Lithium Iron Phosphate (LiFePO4)
- Cycle Life: 6,000+ Cycles
- BMS: Integrated Smart JBD Management System
- Warranty: 8-Year Limited Factory Warranty
Technical Installation Notes
EZGO RXV Interlock:
The RXV requires the blue wire from the factory charging port to be tied into the system (or bypassed) for the cart to move. This kit includes the necessary components to handle this.
OBC Bypass (Club Car):
For older Club Car models with an On-Board Computer (OBC), the OBC must be bypassed for the new lithium charger to function. The kit provides clear instructions for this simple 10-minute step.
Tray Modifications:
Unlike larger 105Ah batteries that may require cutting the battery tub, the 65Ah unit is compact enough to fit in almost any standard battery tray without permanent modifications.
Voltage Reducer:
If the cart has 12V accessories (lights, horn, radio), we recommend using the included voltage reducer to ensure a steady 12V output and prevent damage to your accessories.
Choose the Right Rhino for Your Ride
Compare our three 48V lithium conversion options to find the best fit for your driving habits.
| Feature | 48V 50Ah (Standard) | 48V 65Ah (Extended) | 48V 105Ah (High-Capacity) |
|---|---|---|---|
| Tier | GOOD | BETTER | BEST |
| Estimated Range | 20 - 25 Miles | 27 - 35 Miles | 50 - 65 Miles |
| Continuous Power | 100A | 150A | 200A |
| Peak Power (30s) | 150A | 300A | 500A |
| Charger Included | 15-Amp Smart | 20-Amp Smart | 25-Amp Smart |
| Ideal For | Occasional golf & local cruising. | Daily neighborhood use & 36 holes. | Steep hills, long commutes & utility. |
| Warranty | 5-Year Limited | 8-Year Limited | 8-Year Limited |
| Item # | LR51V50AH | LR51V65AH | LR51V105AH |
Cross Reference & Compatibility
Golf Cart Compatibility List
The Lithium Rhino 48V 65Ah kit is designed as a universal, drop-in replacement for any 48V system. It is specifically tested and compatible with the following brands and models:
EZGO
- TXT: All 48V models.
- RXV: (Note: Requires connection of the charge port interlock/blue wire to the battery system to operate).
- Liberty & Express: All 48V series.
Club Car
- Precedent: All i2 and i3 models (Direct fit, replaces 4x12V or 6x8V setups).
- DS: 48V models (Typically 1995-newer).
- Tempo / Onward: All 48V lead-acid versions.
Yamaha
- G29 / The Drive: All 48V models.
- Drive2: All 48V lead-acid models.
Other Major Brands
- ICON EV: i40, i40L, i60, i60L, and i20 models.
- Evolution: Classic 4, Classic 6, and Carrier series.
- Advanced EV: All 48V models.
- Star EV / Sirius: Standard 48V setups.
- Specialty Brands: Bintelli, GEM, Epic, Madjax X-Series, and Vivid.
