Product Specifications for Schauer JAC0324 Charger: 24 Volt, 3 Amp with Clips
BM Part #: | JAC0324 |
---|---|
Voltage: | 24 Volt |
Capacity: | 3 Amp |
Input Voltage: | 115 VAC |
Length: | 6.5" |
Width: | 3.5" |
Height: | 1.8" |
Shipping Weight: | 3.50Lbs |
Warranty: | 2 Year Factory Direct |
Product Manual: | Download |
Datasheet: | Download |
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
- Cooling fan runs in Bulk/Absorption mode only. It does not run in Float mode to conserve energy.
- Have a specific connector, like for Bruno chairlifts? You can splice from your original charger connector to this charger without voiding your warranty.
Product Description

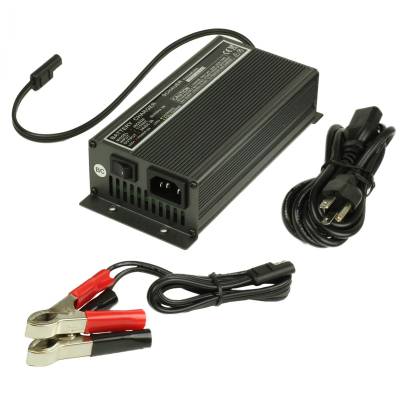

Aluminum-cased 24 Volt, 3 Amp Battery Charger with Clips
The fully automatic Schauer JAC0324 24 volt, 3 amp battery charger with clips confirms operation with three colored LED lights. Red indicates AC power is on, yellow shows the battery is charging, and green lets you know that charger has entered float mode.
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: The Schauer JAC0324 24 volt, 3 amp battery charger with clips can be left on the battery indefinitely without overcharging.
- Have a specific connector, like for Bruno chairlifts? You can splice from your original charger to this charger without voiding your warranty.
Cross Reference
Customer Reviews
Everything was as advertised. Product performed as needed. So far very satisfied.
its a very good charger i love it, for a good product.
Worked great to replace my Bruno chair lift factory charger
I was hesitant to purchase this but the salesperson and reviews supported the risk. I didn't want to damage the Bruno chairlift electronics. Well, it has been about two weeks now and no problems. I guess it works.
very goood
Delivery was prompt as expected. Used for charging 24 volt batteries.
Used to replace a Bruno OEM 2402 charger for a stair lift that failed. I ordered a cheaper charger from another company that immediately failed. Found this one was easy to connect and has been operation for a few weeks without a problem. The stair lift does not get a lot of use so I cannot comment on long term reliability but it appears to be a quality unit.
