Schauer JAC0524 Charger: 24 Volt, 5 Amp with XLR Connector
Item #: JAC0524-PLUG |
In Stock
(1) Read a Review / Write a Review
Free ShippingSpecs
Product Specifications for Schauer JAC0524 Charger: 24 Volt, 5 Amp with XLR Connector
Specifications:
| BM Part #: | JAC0524-PLUG |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 5 Amp |
| Input Voltage: | 115 VAC |
| Length: | 1.8" |
| Width: | 6.5" |
| Height: | 3.5" |
| Shipping Weight: | 3.40Lbs |
| Warranty: | 2 Year Factory Direct |
| Product Manual: | Download |
| Datasheet: | Download |
Features:
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
- Not intended for use as a DC power supply.
- Full load at 2.1 volts per cell continuous - 100% duty cycle.
- Short circuit proof.
- Reverse polarity protection.
Description
Product Description

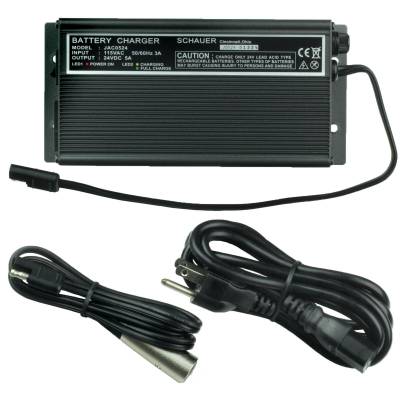

Aluminum-cased 24 Volt, 5 Amp Battery Charger with XLR Connector
This fully automatic charger confirms operation with three colored LED lights. Red indicates AC power is on, yellow shows the battery is charging, and green lets you know that charger has entered float mode.
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
- Not intended for use as a DC power supply.
- Full load at 2.1 volts per cell continuous - 100% duty cycle.
- Short circuit proof.
- Reverse polarity protection (except 2 amp model).
Replaces
Cross Reference
The Schauer JAC0524 Charger: 24 Volt, 5 Amp with XLR Connector has been cross-referenced to be compatible with or replace these OEM part numbers and models:
Hoveround C64003010
Reviews
Customer Reviews
What our Customers are saying
Works great
by Dave on February 6, 2022
Our old charger died and it was a challenge finding a replacement that came with an XLR connector. This charger was great recharging the two 12v batteries wired in series in my plane.
Dave
Would recommend to a friend?
Yes
