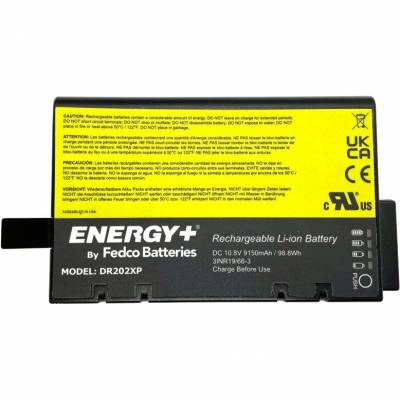

Product Specifications for DR202XP Extended SMBus Smart Battery | 10.8V 9150mAh for Philips Efficia, Suresign & IntelliVue
| BM Part #: | DR202XP |
|---|---|
| Voltage: | 10.8 Volt |
| Capacity: | 9150 mAh |
| Energy Capacity: | 98.82 Wh |
| Type: | Li-Ion |
| Length: | 5.88" |
| Width: | 3.50" |
| Height: | 0.78" |
| Shipping Weight: | 1.00Lbs |
| Warranty: | 1 Year |
| Certifications: | UN38.3, IEC62133, UL62133, UKCA, EMC |
- Designed for Philips Efficia CM, Suresign VM/VS, IntelliVue MP/MX, Micron Transport, and PageWriter series — direct replacement for ME202EK, RRC2020, RRC2020-L, 989803194541, and 453564509341 across a wide range of Philips patient monitoring, transport, and cardiograph platforms.
- Industry-leading certifications: UN38.3, IEC62133, UL62133, UKCA, EMC — the most extensively certified battery in this catalog; validated for safety, performance, and regulatory compliance across international clinical environments.
- Extended capacity: 10.8V 9150mAh / 98.82Wh — higher capacity than the standard ME202EK OEM battery at 9150mAh, supporting extended monitoring sessions in high-utilization clinical environments.
- SMBus smart battery with Texas Instruments BQ40Z50 chipset — full smart battery communication including state-of-charge, cycle count, and health reporting; integrated LED fuel gauge; ships fully tested, programmed, and calibrated.
- Designed and assembled in the USA; 12-month warranty — UL94V-rated ABS housing with sonic weld construction; primary and secondary circuit protection; backed by a full one-year warranty.
Product Description
DR202XP SMBus Smart Battery — ME202EK / RRC2020 Platform Replacement
The DR202XP is a 10.8V 9150mAh Lithium-Ion SMBus intelligent battery pack designed and assembled in the USA by Energy+. It is a direct replacement for Philips ME202EK, RRC2020, and 989803194541 batteries across a broad range of Philips patient monitoring, transport, and cardiograph equipment. With extended capacity and a comprehensive certification portfolio — including UN38.3, IEC62133, UL62133, UKCA, and EMC — it is the most extensively validated battery in the Energy+ medical catalog.
Firmware Compatibility Note
For Philips Suresign VM and VS series monitors, this battery is compatible with units updated to firmware A.07.033 or later. Confirm your monitor's firmware version before ordering. Contact Philips Healthcare or your biomedical engineering department if firmware status is unknown.
Compatible Philips Equipment
Vital Signs & Patient Monitors
- Philips Suresign: VM3, VM4, VM6, VM8, VS2, VS3, VS4, V24E
- Philips Efficia: CM10, CM12, CM120, CM150, CM100
- Philips IntelliVue: MP5, MP20, MP30, MP40, MP50, MP60, MP70, MP80, MP90, MX400, MX450, MX500, MX550, M8000, M8001A, M8002A, M8100, TC30, TC70
- Philips Goldway: G30E, G50, G60, G60E, G70, G80, P80E
- Philips 740 Select Vital Signs Monitor
Transport Monitors
- Philips Micron Transport: GX, GX+, GX2, GX3, VX, XT, XT2, ZX, CTG7
Cardiographs & ECG
- Philips PageWriter: TC10, TC20, TC30, TC50, TC70
- Philips ELI 380 ECG
Fetal & Maternal Monitoring
- Philips FM20, FM30
Confirm your equipment model and OEM battery part number against your documentation before ordering. Key OEM part numbers covered: ME202EK, ME202C, ME202, ME202A, ME202B, ME202BB, ME202BE, ME202H, RRC2020, RRC2020-L, 989803194541, 453564509341, A-989803194541-3, 989803135861, 989803144631, 989803160981, 989803170371, 989803189981, M4605A, MB4605A, M2702A, M2703A, M8003A, M8004A, M8105A, M8105AS, M8105AT, R202i, and related Philips 860xxx/863xxx/866xxx series part numbers.
SMBus Smart Battery Technology
The DR202XP uses a Texas Instruments BQ40Z50 SMBus chipset, providing full smart battery communication to Philips host equipment. This includes accurate state-of-charge reporting, cycle count tracking, and state-of-health data — essential for clinical equipment maintenance programs and regulatory compliance. An integrated LED fuel gauge indicator allows charge verification independent of the host device.
Certifications
The DR202XP carries the following safety and regulatory certifications: UN38.3 (transport safety), IEC62133 (battery safety), UL62133 (UL-listed battery safety), UKCA (UK Conformity Assessed), and EMC (electromagnetic compatibility). These certifications support use in regulated clinical environments and international procurement.
Specifications
Part Number: DR202XP
Nominal Voltage: 10.8V
Capacity: 9150mAh / 98.82Wh
Max Charge Voltage: 12.60V
Max Charge Current: 5.0A
Max Discharge Current: 5.0A
Charge Temperature: 0°C to 45°C
Discharge Temperature: -20°C to 60°C
Storage Temperature: -20°C to 25°C (recommended)
Connector: 5-position 146845-1
Dimensions: 5.88" × 3.50" × 0.78"
Chipset: Texas Instruments BQ40Z50
Certifications: UN38.3, IEC62133, UL62133, UKCA, EMC
Assembled: USA
Warranty: 12 months
Frequently Asked Questions
What Philips equipment is the DR202XP compatible with?
The DR202XP covers Philips Suresign VM/VS series, Efficia CM series, IntelliVue MP/MX series, Micron Transport series, PageWriter TC series, Goldway G series, FM20/FM30 fetal monitors, and the ELI 380 ECG. See the full compatible equipment list above for all confirmed models.
What is the ME202EK / RRC2020 battery platform?
The ME202EK (Philips/Molicel OEM designation) and RRC2020 (Inspired Energy platform designation) refer to the same battery platform used across a broad range of Philips patient monitoring, transport, and cardiograph equipment. The DR202XP is designed to replace all major variants of this platform.
How does the DR202XP differ from the DR202I?
Both batteries share the same physical dimensions, connector (5-position 146845-1), and voltage (10.8V), but differ in capacity and target platforms. The DR202XP (9150mAh) is programmed for the ME202EK/RRC2020 platform used in Philips Suresign, Efficia, IntelliVue, and related equipment. The DR202I (7800mAh) is programmed for the SM202/Li202SX platform used in Spacelabs monitors, TSI particle counters, Agilent/Keysight instruments, and other equipment. Despite the physical similarity, these batteries are not interchangeable across platforms — confirm your OEM part number before ordering.
Is the DR202XP compatible with Philips Suresign monitors on all firmware versions?
The DR202XP is compatible with Philips Suresign VM and VS series monitors updated to firmware A.07.033 or later. Monitors on earlier firmware may not recognize the battery correctly. Confirm your monitor's firmware version with your biomedical engineering department before ordering.
What certifications does the DR202XP carry?
The DR202XP is certified to UN38.3 (transport safety), IEC62133 (battery safety standard), UL62133 (UL-listed), UKCA (UK market conformity), and EMC (electromagnetic compatibility).
Does this battery require programming before use?
No. The DR202XP ships fully tested, programmed, and calibrated for immediate clinical deployment without additional bench setup.
Is this an OEM Philips battery?
No. The DR202XP is an aftermarket replacement battery manufactured by Energy+ in the USA. It is not an official Philips, Molicel, or Inspired Energy product.
What is the warranty?
The DR202XP carries a 12-month warranty.
Cross Reference & Compatibility
- Philips 453564509341
- Philips 989803135861
- Philips 989803144631
- Philips 989803160981
- Philips 989803170371
- Philips 989803189981
- Philips 989803194541
- Philips A-989803194541-3
- Philips M2702A
- Philips M2703A
- Philips M4605A
- Philips M8003A
- Philips M8004A
- Philips M8105A
- Philips M8105AS
- Philips M8105AT
- Philips MB4605A
- Philips ME202
- Philips ME202A
- Philips ME202B
- Philips ME202BB
- Philips ME202BE
- Philips ME202C
- Philips ME202EK
- Philips ME202H
- Philips R202i
- Philips RRC2020-L
- Philips RRC2020
This battery can be used in these models:
- Philips 740 Select Vital Signs Monitor
- Philips Efficia CM10
- Philips Efficia CM100
- Philips Efficia CM12
- Philips Efficia CM120
- Philips Efficia CM150
- Philips ELI 380 ECG
- Philips FM20
- Philips FM30
- Philips Goldway G30E
- Philips Goldway G50
- Philips Goldway G60
- Philips Goldway G60E
- Philips Goldway G70
- Philips Goldway G80
- Philips Goldway P80E
- Philips IntelliVue M8000
- Philips IntelliVue M8001A
- Philips IntelliVue M8002A
- Philips IntelliVue M8100
- Philips IntelliVue MP20
- Philips IntelliVue MP30
- Philips IntelliVue MP40
- Philips IntelliVue MP5
- Philips IntelliVue MP50
- Philips IntelliVue MP60
- Philips IntelliVue MP70
- Philips IntelliVue MP80
- Philips IntelliVue MP90
- Philips IntelliVue MX400
- Philips IntelliVue MX450
- Philips IntelliVue MX500
- Philips IntelliVue MX550
- Philips IntelliVue TC30
- Philips IntelliVue TC70
- Philips Micron Transport CTG7
- Philips Micron Transport GX
- Philips Micron Transport GX+
- Philips Micron Transport GX2
- Philips Micron Transport GX3
- Philips Micron Transport VX
- Philips Micron Transport XT
- Philips Micron Transport XT2
- Philips Micron Transport ZX
- Philips PageWriter TC10
- Philips PageWriter TC20
- Philips PageWriter TC30
- Philips PageWriter TC50
- Philips PageWriter TC70
- Philips Suresign V24E
- Philips Suresign VM3
- Philips Suresign VM4
- Philips Suresign VM6
- Philips Suresign VM8
- Philips Suresign VS2
- Philips Suresign VS3
- Philips Suresign VS4
