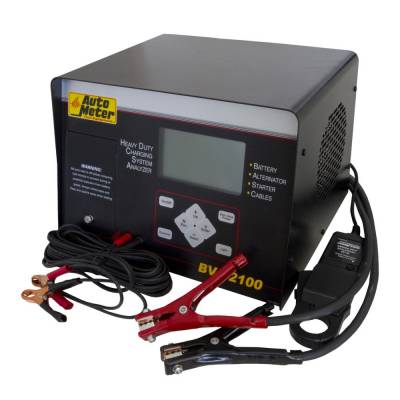

AutoMeter Heavy Duty Automated Electrical System Analyzer
Item #: ACC-BVA2100 |
Special Order: Ships In 2-4 weeks
Be the first to Write a Review

Specs
Product Specifications for AutoMeter Heavy Duty Automated Electrical System Analyzer
Specifications:
BM Part #: | ACC-BVA2100 |
---|---|
Length: | 9.5" |
Width: | 12" |
Height: | 13" |
Shipping Weight: | 25.00Lbs |
Warranty: | 1 Year (90 Days on Cables) |
Product Manual: | Download |
Test Capacity: | 500 Amp |
Battery Sizes: | 200-1600 CCA |
Battery Voltages: | 6, 12, and 24 Volt |
Charging System Voltages: | 12 and 24 Volt |
Starting System Voltages: | 12 and 24 Volt |
Load Clamps: | 10 ft., 6 ga. |
Features:
- Accurately pinpoints electrical system problems (battery, starter, alternator, wiring, and connections).
- Features advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allows technicians to rapidly measure a battery's ability to provide the adequate cranking power necessary to start the vehicle.
- True-Load – This AutoMeter Analyzer is unique compared with other products on the market. It has the ability to apply a specific load (True-Load) directly through the tester connections allowing for a more rapid and accurate test.
- V-Drop Technology – this unique AutoMeter feature utilizes a patented process to automatically measure the voltage drop in the charging circuit during starter engagement to ensure vehicle systems are operating at peak performance.
- Includes internal battery charger, inductive amp clamp, and external volt leads.
- Includes two separate and specific options for automotive and heavy-duty truck applications.
- Quickly and accurately tests nearly all 6V and 12V batteries and battery banks up to 4 batteries and 24V (including AGM).
- Features liftgate testing - using AutoMeter's truck/trailer adapters, the BVA-2100 quickly isolates exact truck or trailer electrical system issues before they become a problem.
- No external power required - runs on a rechargeable 6V SLA battery, which charges when cables are hooked up to the battery. Also includes its own 120 VAC battery charger.
Description
Product Description
The BVA-2100 is the ultimate electrical system tester specifically designed for the Heavy Duty market. Through the use of state of the art digital circuitry and a 400 amp True Load system , the BVA-2100 delivers the word's most accurate, reliable, and fastest testing results for batteries, charging systems, starting systems, and voltage drop testing for heavy duty applications.
Replaces
Cross Reference
The AutoMeter Heavy Duty Automated Electrical System Analyzer has been cross-referenced to be compatible with or replace these OEM part numbers and models:
BVA-2100
