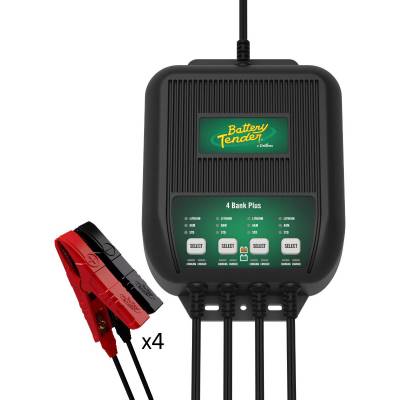

Product Specifications for Battery Tender 12 Volt 1.25 Amp Battery Charger - 4 Banks (California Compliant)
BM Part #: | 022-0148-DL-WH |
---|---|
Voltage: | 12 Volt |
Charging Rate: | 5 Amp (1.25 Amp Per Bank) |
Input Voltage: | 120VAC @ 60 Hz |
Length: | 8.75" |
Width: | 7.0" |
Height: | 3.6" |
Shipping Weight: | 7.55Lbs |
Warranty: | 2 Year Factory Direct |
Product Manual: | Download |
- Includes four Clamp Harness and four Lug Harness
- 48" Charging Leads supplied with unit (4 leads)
- 4 independent charging stations
- 12 volts @ 1.25 amps per station
- Extremely lightweight; Less than 6 lbs
- Temperature Range: 0°F to 122°F nominal
- Optional 25 ft leads available
- Microprocessor controlled constant current charging
- Reverse Polarity Protected
- Spark Proof
- Charger for virtually all lead-acid batteries, either flooded or sealed, maintenance free, AGM (Absorbed Glass Mat) or Gel Cell.
- Will comply to all International safety standards (UL/CSA/CE)
Product Description
The 4 Bank Battery Tender Charging Station is four encased 1.25 amp battery chargers designed to fully charge a battery and maintain it at proper storage voltage without the damaging effects caused by trickle chargers.
Tech Tip: Using A Multi-Bank Charger
Each bank of this charger is 1.25 amps. Combined, this is an output of 5 amps (4 banks of 1.25 amps each). This is commonly used in two ways:
- Connect each bank to separate battery systems, charging both by 1.25 amps each.
- Connect both amps to the same battery system, charging it by 5 amps total.
