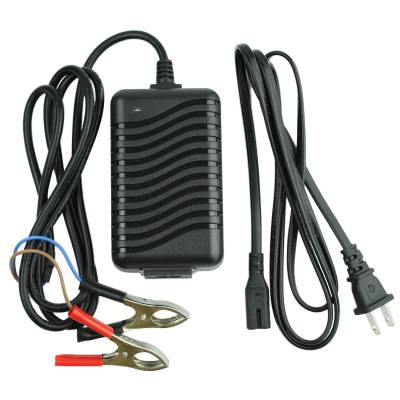

Soneil 36 Volt 1.2 Amp Battery Charger
Item #: CS3603SR |
Special Order: Ships in 1-2 Weeks
(2) Read a Review / Write a Review
Specs
Product Specifications for Soneil 36 Volt 1.2 Amp Battery Charger
Specifications:
| BM Part #: | CS3603SR |
|---|---|
| Voltage: | 36 Volt |
| Charging Rate: | 1.2 Amp |
| Shipping Weight: | 2.15Lbs |
| Warranty: | 1 Year |
| Product Manual: | Download |
| Datasheet: | Download |
Features:
- U.S. Patent Pending
- Protect your batteries: Maintaining your batteries at full charge will help prevent sulfation..
- Small size & light weight: Portability is a major feature. The charger can be installed on-board.
- One charger for any type of lead acid battery (no switch): The charger will charge lead acid and AGM batteries. The charger will adjust itself as the battery gets old.
- Short circuit protection: If you touch the output +ve & -ve wires (with AC ON) and there will be no failure (no fuse will blow).
- Reverse polarity protection: If you connect the battery in reverse, there will be no failure (no fuse will blow).The charger will just not work. When the problem is corrected, the charger will operate normally.
- No current drain: If the AC is OFF and the charger is connected to the battery, there will be no drain of current from the battery.
- Low voltage start: The charger will start charging from 0.5 volts. This means a very deeply discharged battery can be charged. Other chargers cannot do this.
- Maintain full charge & no overcharging: The charger can be left connected to the battery indefinitely without harming (overcharging) the battery.
- UL, ULc (Canada), T-mark (Japan), TUV and CE (electrical EN 60335-1, Charger EN 60335-2-29, EMC - listed above) safety approvals.
- DC Output: 36 Volt 1.2 Amp
- Input: 90-130 Volts ~ 1.2 Amp Max. 60Hz
- LED Indicator: Orange: Charging Green: Charged
- 1 Year Warranty
Description
Product Description
Not for golf cart batteries. For maintaining golf cart batteries, we recommend the 4.5 Amp Soneil Model 3610S
This 36 volt, 1.2 amp charger features clamps, one of the most common battery leads. It will also maintain your batteries, which will help prevent sulfation.
Replaces
Cross Reference
The Soneil 36 Volt 1.2 Amp Battery Charger has been cross-referenced to be compatible with or replace these OEM part numbers and models:
3602S
Reviews
Customer Reviews
What our Customers are saying
Neuton Battery rebuild charger replacement.
by JIM on May 14, 2022
I needed a new charger for my lawn mowers battery pack. This charger worked out just fine.
A simple adapter to connect to the outputs of the battery was all I had to fabricate.
JIM
MI
Would recommend to a friend?
Yes
Good charger
by Adam on August 18, 2013
Used charger to charge 3 x 12V (7Ah) batteries at a time. With top-off charging, charger gets slightly warm, and green light comes on when fully charged in ~1hr.
Adam
Tarzana, CA
Would recommend to a friend?
Yes
