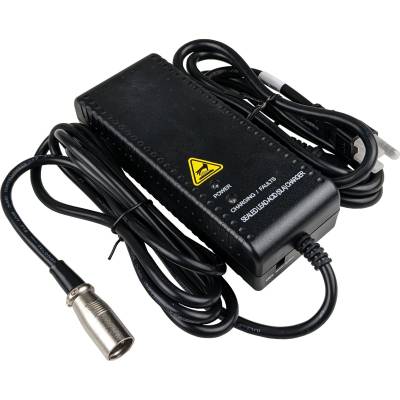

3-Stage Switch Mode SLA/GEL Charger: 24 Volt, 5 Amp with XLR Connector
Item #: 24BC5000T-4 |
Ships Directly from Manufacturer
Be the first to Write a Review
Specs
Product Specifications for 3-Stage Switch Mode SLA/GEL Charger: 24 Volt, 5 Amp with XLR Connector
Specifications:
| BM Part #: | 24BC5000T-4 |
|---|---|
| Voltage: | 24 Volt |
| Charging Rate: | 5 Amp |
| Charging Battery Capacity: | 15 - 50 Ah |
| Input Voltage: | 100-240VAC, 50-60Hz |
| Length: | 8" |
| Width: | 3.30" |
| Height: | 2.04" |
| Shipping Weight: | 6.00Lbs |
| Warranty: | 1 Year |
| Datasheet: | Download |
| Output Cord | 6' long, SJT type (Hard Usage) with XLR 3-pin Male Connector |
| Operation Temperature | -25°C to 50°C |
| Storage Temperature | -25°C to 60°C |
Two LEDs for Status Indication
1. Power LED (Clear Lens - Red Color)
| Description | LED |
|---|---|
| Power On | On |
| No AC Power | Off |
2. Charging / Faults - LED (Clear Lends - Red / Green Color)
| Charging - Description | Red LED | Green LED |
|---|---|---|
| No Battery / Full Charge (20 Hrs) | Off | Off |
| Bulk / Absorbtion Charge | On | Off |
| Float Charge | Off | Continuous Blinking |
| Maintenance Charge | Off | On Steady |
Features:
- Charges AGM and GEL batteries. To charge GEL batteries, move the switch located on the front end of the charger to the GEL position.
- For AGM batteries, the charger provides three charging states. The charger monitors and controls both output voltage and current of the charger through these states.
- High Current Fast Charge State: Battery charges at a 3,500mA fast charge current rate until battery voltage reaches 29.6V
- Topping Charge State: Battery charges at 29.6V constant voltage and current begins to taper until current is less than 500mA.
- Precision Float Charge State: The charger changes to the float state and holds battery voltage at 27.4V.
- For GEL batteries, the charger provides the prior charging states and also monitors and controls both output voltage and current. The voltages are lower due to the GEL chemistry.
- High Current Fast Charge State: Battery charges at a 3,500mA fast charge current rate until battery voltage reaches 28.6V
- Topping Charge State: Battery charges at 28.6V constant voltage and current begins to taper until current is less than 500mA.
- Precision Float Charge State: The charger changes to the float state and holds battery voltage at 26.6V.
- Note: For battery maintenance, this charger is equipped with "Auto-Restate" that will resume charging when the battery voltage drops to 25.3VDC.
- Protections:
- Short Circuit Protection.
- Over Current Protection.
- Over Voltage Protection.
- Battery Polarity Reversal.
Description
Product Description
This high-quality 24 volt, 5 amp charger is fitted with the 3-prong XLR connector. It is suitable for use on sealed lead acid (SLA) and GEL batteries with capacities of 15Ah to 50Ah. Chargers with XLR connectors are commonly used in applications such as electric scooters, mobility scooters, and power chairs. This charger automatically shuts off when the battery charging is complete. Charging times vary greatly depending on the battery's state of charge and its maximum capacity.
Features of this charger include:
- Short Circuit Protection: Protects the charger from damage in case of short-circuiting. The charger will resume operation when safe.
- Reverse Polarity Protection: The charger will not operate if the positive and negative is incorrect.
- Fully Automatic Operation: 100% safe to leave connected to a battery indefinitely. Once charging is complete, the final stage of charge is the "Float Mode", which keeps the battery at a fully charged state.
- Designed to Prevent Over-Charging: The Float Mode will not overcharge the battery.
- Complete 3-Stage Process: Bulk Charge, Absorbtion, and Maintenance/Float Mode.
- Low Voltage Protection: If the battery voltage is below a preset value, the charger will not start charging.
- LED Display.
- Light Weight.
Replaces
Cross Reference & Compatibility
The 3-Stage Switch Mode SLA/GEL Charger: 24 Volt, 5 Amp with XLR Connector has been cross-referenced to be compatible with or replace these OEM part numbers and models:
24BC5-XLR
24BC5000T-4
24BC5000TF-1
71698
71704
