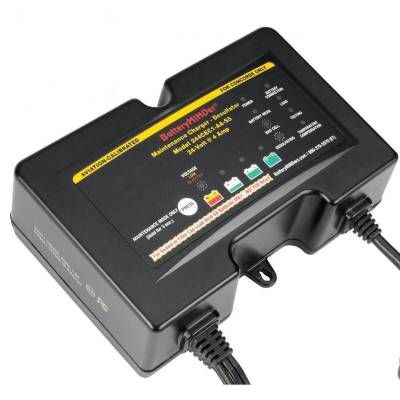

Free ShippingProduct Specifications for BatteryMINDer 24 Volt, 4 Amp Charger for Concorde Aviation
| BM Part #: | 244CEC2-AA-S5 |
|---|---|
| Voltage: | 24 Volt |
| Charging Rate: | 4 Amp |
| Input Voltage: | 90-140 VAC, 47-63 Hz |
| Length: | 4.9" |
| Width: | 7.3" |
| Height: | 2.1" |
| Shipping Weight: | 4.10Lbs |
| Warranty: | 5 Year Factory Direct |
| Product Manual: | Download |
BatteryMINDer Charger-Maintainer-Desulfator 7 Stages of Charging
- Analyze: Test the battery and determine if good or bad.
- Desulfate: Begins removal by dissolving harmful sulfate.
- Soft Start: Applies low current if battery tests low.
- Bulk: Provides maximum output to charge to 85%.
- Absorption: Provides low current to complete to 100%.
- Test: Determines if battery needs further desulfation.
- Maintenance: Maintains temperature-compensated full-charge.
What's in the box:
- BatteryMINDer 244CEC1-AA-S5 Maintenance Charger-Desulfator
- Auto-Temp Compensation Sensor (Installed)
- 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
- Instruction Manual
- Guaranteed to never overcharge/undercharge. (33°F to 130°F)
- Tested and endorsed by Concorde Battery Co. and other leading makers. Also works with Pifer M600.
- Auto-selection for charge rate and battery types ensures 100% compliance with Concorde® specifications
- 100% Full - Time U.S. Patented Pulse-type Desulfation keeps battery free of sulfate or dissolves sulfate completely in older batteries
- Detects and rejects batteries with bad cells with auto-shutdown. Terminates charge to prevent out-gassing
- Maximizes battery life and capacity, recovers weak batteries.
- Diagnoses battery's condition / state-of-charge
- Recovers weak or deeply discharged batteries.
- Auto-Restart after power failure
- Intrusion protected from water and dust per IEC STANDARD IP65.
- Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly
- Very high efficiency. California CEC Approved. Certified to California Energy Commision Standards.
- Automatically detects input AC power.
- ECO-mode with hi-efficiency / low power consumption. This allows the unit to always remain connected to AC while consuming very low level of electricity.
- Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
- 12 LED indicators show state-of-charge and important status mode / battery condition.
- Rugged, vibration-resistant construction.
- 6' AC cord, 6' DC cord with quick connector (SAE).
Product Description
Our new CONCORDE® aviation battery specific 2016 line of BatteryMINDer® battery charger/maintainers/desulfators are the most advanced we have ever produced!
In addition to charging and maintaining sealed or wet cell (filler caps) CONCORDE® aviation battery users can now determine the level of charge remaining in their battery, and if weak and in need of replacement, before going bad. Units test for weak/dead cells and will recover weak or severely discharged batteries that other chargers would reject.
Known as the CEC1-AA series they feature advancements in easy to understand battery analysis and condition not previously available in any other single model. Their high efficiency design, controlled by industrially-rated microprocessors, allow continuous operation (24 hrs./day) for less than $0.43/month.
Temperature sensors prevents over/under charging from freezing to 130°F.
