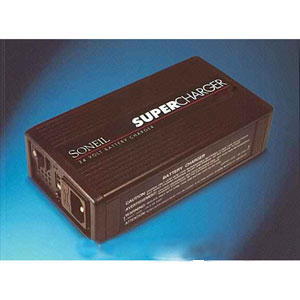

Product Specifications for Soneil 24 Volt, 6 Amp Battery Charger with Clamps: For Gel, AGM, Sealed, and Wet Batteries
| BM Part #: | 2412SRF-B |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 6 Amp |
| Length: | 7.1" (180 mm) |
| Width: | 3.7" (94 mm) |
| Height: | 1.8" (46 mm) |
| Shipping Weight: | 3.85Lbs |
| Warranty: | 1 Year |
| Datasheet: | Download |
Additional Specs:
- Input Rating: Dual: 100-240 Volts ~ 4.0A/2.0A Amp Max. 50/60Hz
- Output Rating: 24 Volt ~ 28.8V Max. 6 Amps
- Charges: Wet Flooded, GEL, SLA, AGM

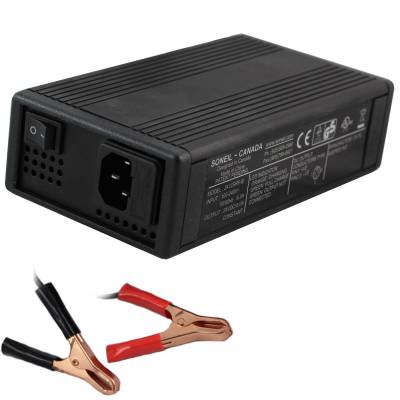

- Includes: Alligator Clamps
- One Charger for Every Lead-Acid Type: Charges gel, AGM, sealed and wet batteries with no switch to set.
- Low Voltage Start: Revives deeply discharged batteries by starting the charge from just 0.5 volts.
- Automatic Maintenance Mode: Stays connected safely without overcharging, so your battery is ready when needed.
- Reverse Polarity Protection: Hooked up backward? Nothing blows, and charging resumes once corrected.
- Short Circuit Protection: Accidentally touching the clamps together won't blow a fuse or damage the unit.
- No Current Drain: Stays clipped to the battery without pulling power when unplugged from the wall.
- Dual Voltage Input (100-240V): Plugs into outlets at home or abroad with the right plug adapter.
- Two-Color LED Indicator: Orange means charging and green means done, so there's no guesswork.
Product Description
Are you tired of finding a dead battery right when you need your equipment? A reliable 24 volt battery charger fixes that, and the Soneil 2412SRF-B makes it easy.
This fully automatic 6 amp charger comes with alligator clamps already attached. Clip on, plug in, and let it handle the rest.
Keep Batteries Healthy Between Uses
Batteries rarely die all at once. They fade when they sit partly charged for weeks, a problem called sulfation that shortens battery life. This charger holds your battery at full strength so it is ready when you are, even after a long off-season.
It is also forgiving. Many chargers refuse to start on a battery that has been drained nearly flat. This one will give it a shot.
Small Enough to Take Anywhere
At about 7 inches long and under 2 pounds, it fits in a tote bag, a scooter basket, or a toolbox. Keep one at home and one in your travel kit, and you are never stuck waiting on a bulky shop charger.
What Is This Charger Used For?
It is built for any 24 volt lead-acid system, including two 12 volt batteries wired in series. Popular uses include:
- Mobility scooters and power wheelchairs
- Floor scrubbers and other material handling equipment
- Electric vehicles and small utility carts
- Deep cycle batteries in 24 volt systems
- Backup power and off-grid battery banks
Buy With Confidence
Soneil is a respected Canadian charger maker, and this model carries UL, ULc, TUV, and CE safety approvals. It is backed by a 1-year warranty and our US-based support team, so help is a phone call away.
Not what you expected? Our easy returns and satisfaction guarantee have you covered.
Ready to stop worrying about dead batteries? Add the Soneil 24 volt, 6 amp charger to your cart today and keep your equipment charged, protected, and ready to go.
Frequently Asked Questions
Will this charger work with my battery?
A: It works with 24 volt lead-acid batteries of any brand, including wet (flooded), gel, sealed lead acid, and AGM. It also works with two 12 volt batteries wired in series. It is not meant for a single 12 volt battery, so use a 12 volt charger for that. If you have a lithium battery, please contact us before ordering.
How do I connect it?
A: Attach the red clamp to the positive terminal and the black clamp to the negative terminal. Then plug the charger into a wall outlet. The LED glows orange while charging and turns green when the battery is full.
Can I leave it connected all the time?
A: Yes. Once the battery is full, the charger switches to maintenance mode and will not overcharge it. If the charger is unplugged from the wall, it will not drain the battery either.
How long will it take to charge my battery?
A: A good rule of thumb is to divide your battery's amp-hour (Ah) rating by 6, then add extra time for the final top-off. A 35 Ah battery that is half empty, for example, usually takes roughly 3 to 4 hours. Larger batteries take longer.
My equipment has a plug, not battery terminals. Which version do I need?
A: This listing is the clamp version, which connects directly to open battery terminals. If your scooter or wheelchair charges through a round plug port, check out our 2412SRF with XLR connector. Not sure? Call us at 800-405-2121 and we will help you match it.
