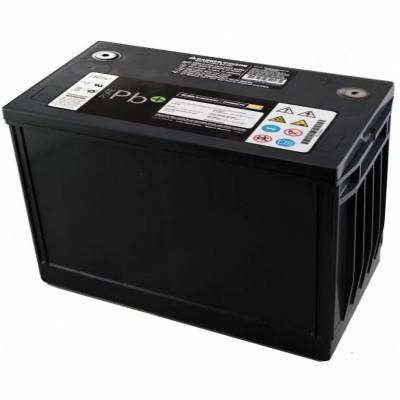

Product Specifications for C&D Technologies UPS12-405PLP Battery - 12V 104Ah Pure Lead Plus AGM
| BM Part #: | UPS12-405PLP |
|---|---|
| Voltage: | 12 Volt |
| Capacity: | 104 Ah |
| Type: | Sealed Lead Acid |
| Length: | 13.42" |
| Width: | 6.80" |
| Height: | 8.52" |
| Shipping Weight: | 78.00Lbs |
| Warranty: | 3 Year |
- High-Rate Power: Rated for 405 Watts per cell at a 15-minute discharge rate
- Technology: Sealed Absorbed Glass Mat (AGM) with advanced Pure Lead Plus alloy for extended life and performance
- Design Life: 10-year design life at 25°C (77°F)
- Safety & Durability: Flame-retardant polypropylene case with thermally welded construction; UL 94 V-2 and V-0 compliant
- Maintenance: Maintenance-free, valve-regulated, and spill-proof design
- Storage: Can be stored for up to 24 months at 25°C without requiring a recharge
- Certifications: UL 1973, UL 1778, UL 1989, UL 924, BS 6290-4, IEC 60896-22
- Transport: Non-restricted for air transport, complying with IATA/ICAO Special Provisions A67
- Terminals: Insert terminals for a secure, low-resistance connection
- Primary Applications: Specifically designed for high-rate UPS systems, data centers, network operations, and emergency lighting
Product Description
The C&D Technologies UPS12-405PLP is a premium 12V, 104Ah Pure Lead Plus Absorbed Glass Mat (AGM) battery, specifically engineered for the demanding high-rate discharge requirements of Uninterruptible Power Supply (UPS) systems. This battery is designed to provide maximum power for critical short-term backup applications in data centers, network operations centers, hospitals, and other mission-critical facilities where uptime is non-negotiable.
Leveraging C&D's advanced Pure Lead Plus alloy and proprietary manufacturing processes, the UPS12-405PLP delivers superior performance and a longer service life compared to conventional VRLA batteries. This technology minimizes grid growth and gassing, resulting in a robust, high-performance battery that is more resistant to the effects of high-temperature operation. With a 10-year design life at 25°C (77°F), it is built to provide reliable, long-term standby power.
The battery features a flame-retardant polypropylene case and thermally welded construction, ensuring a leak-proof and maintenance-free design that is safe for installation in sensitive equipment rooms. Its sealed, valve-regulated design allows for flexible mounting in any orientation, while its compliance with IATA/ICAO Special Provisions A67 makes it non-restricted for air transport, simplifying logistics for your projects.
The UPS12-405PLP is a and meets numerous industry certifications, including UL 1973, UL 1778, UL 1989, and UL 924. This ensures it meets the highest standards for safety and reliability in critical backup power systems. Backed by a 3-year manufacturer's warranty, this battery is a trusted investment for your power infrastructure.
Recommended Charger: For optimal performance and to extend the life of your battery, consider pairing it with a quality charger. We recommend the NOCO GENIUS10 charger to keep your battery in peak condition.
Specifications (Expanded with Technical Data)
| Model | C&D Technologies UPS12-405PLP (Pure Lead Plus) |
|---|---|
| Chemistry / Type | Sealed Lead Acid (VRLA), AGM; Pure Lead Plus |
| Nominal Voltage | 12V |
| Capacity | 104 Ah (20-hour rate) |
| High-Rate Performance | 405 W/cell @ 15-minute discharge |
| Design Life | 10 years at 25 °C (77 °F) |
| Warranty | 3 years |
| Case / Safety | Flame-retardant polypropylene; thermally welded case-to-cover |
| Maintenance | Maintenance-free, valve-regulated; non-spillable, leak-proof |
| Shelf Life | Up to 24 months at 25 °C without recharge |
| Terminals | Insert type |
| Dimensions (L × W × H) | 13.42" × 6.80" × 8.52" (341 × 173 × 216 mm) |
| Weight | 75.8 lbs (34.4 kg) |
| Compliance & Certifications |
UL Recognized Component; UL 94 V-2/V-0 (flame ratings); UL 1973; UL 1778; UL 1989; UL 924; BS 6290-4; IEC 60896-22; IATA/ICAO Special Provision A67 (non-restricted for air transport) |
| Typical Applications | High-rate UPS systems, data centers, NOCs, emergency lighting, critical standby power |
| Recommended Charger | NOCO GENIUS10 (10A) – AGM compatible |
| Condition | Brand New |
Frequently Asked Questions (FAQ):
Q: What is the C&D Technologies UPS12-405PLP battery best suited for?
A: This battery is engineered for high-rate UPS systems and is the ideal choice for mission-critical applications such as data centers, telecom facilities, hospitals, network operation centers, and emergency lighting systems where reliable, short-term backup power is essential.
Q: What does "Pure Lead Plus" technology do?
A: C&D's Pure Lead Plus technology uses a proprietary pure lead paste and alloy. This advanced chemistry and manufacturing process extend the battery's service life, improve high-rate discharge performance, and enhance durability compared to conventional VRLA batteries.
Q: How long is the warranty on this battery?
A: The UPS12-405PLP battery comes with a 3-year manufacturer's warranty, ensuring reliable performance and peace of mind for your critical power systems.
Q: Is this battery safe for air travel?
A: Yes. Its sealed AGM design allows it to comply with IATA/ICAO Special Provisions A67, classifying it as a non-restricted item for air transport.
Q: What is the difference between VRLA and AGM?
A: VRLA (Valve-Regulated Lead-Acid) is a classification for maintenance-free, sealed lead-acid batteries. AGM (Absorbed Glass Mat) is a specific type of VRLA battery where the electrolyte is absorbed into a fiberglass mat, providing superior high-rate discharge performance, resistance to vibration, and a longer cycle life. The UPS12-405PLP is a VRLA battery that uses AGM technology.
Cross Reference & Compatibility
- C&D Technologies UPS12-370FR
- C&D Technologies MR12-400
- C&D Technologies UPS12-400MR
