Free Economy ShippingProduct Specifications for TOPDON TS004 Pro 19mm Thermal Monocular
| BM Part #: | TS004PRO |
|---|---|
| Capacity: | 5000 mAh |
| Length: | 7.1" |
| Width: | 2.5" |
| Height: | 2.1" |
| Shipping Weight: | 3.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- TS004 Pro
- USB-A to USB-C Cable
- Wrist Strap
- EVA Carrying Case
- User Manual
- 384×288 Thermal Sensor With TISR: High-resolution infrared sensor with <40mK sensitivity and TISR image enhancement delivers sharp, detailed thermal imagery at a smooth 50Hz frame rate — a noticeable step up from 256×192 entry-level sensors.
- 650-Yard Detection With AI Identification: Spot heat signatures up to 650 yards away with a 19mm lens, identify targets at up to 145 yards, and let the built-in AI automatically flag people and vehicles in the frame.
- 5 Color Palettes and Dual Fusion Mode: Choose from White Hot, Black Hot, Red Hot, Bird, and Fusion palettes, plus Dual Fusion mode for blended thermal and visible imagery and PIP for simultaneous wide and zoomed views.
- 10-Hour Battery With Built-In LED: A 5,000mAh rechargeable battery powers up to 10 hours of continuous use, and the built-in LED flashlight adds visible illumination without needing an extra piece of gear.
- 32GB Storage and TopInfrared App: Store up to 270,000 images or hours of video onboard, and connect wirelessly via the TopInfrared app for remote control, image capture, and OTA firmware updates.
- IP67 Waterproof and Ultra-Lightweight: Submersible to 1 meter, drop-resistant, and operating from 14°F to 122°F — all in a 0.68 lb body with a built-in tripod mount for hands-free use in the field.
Product Description

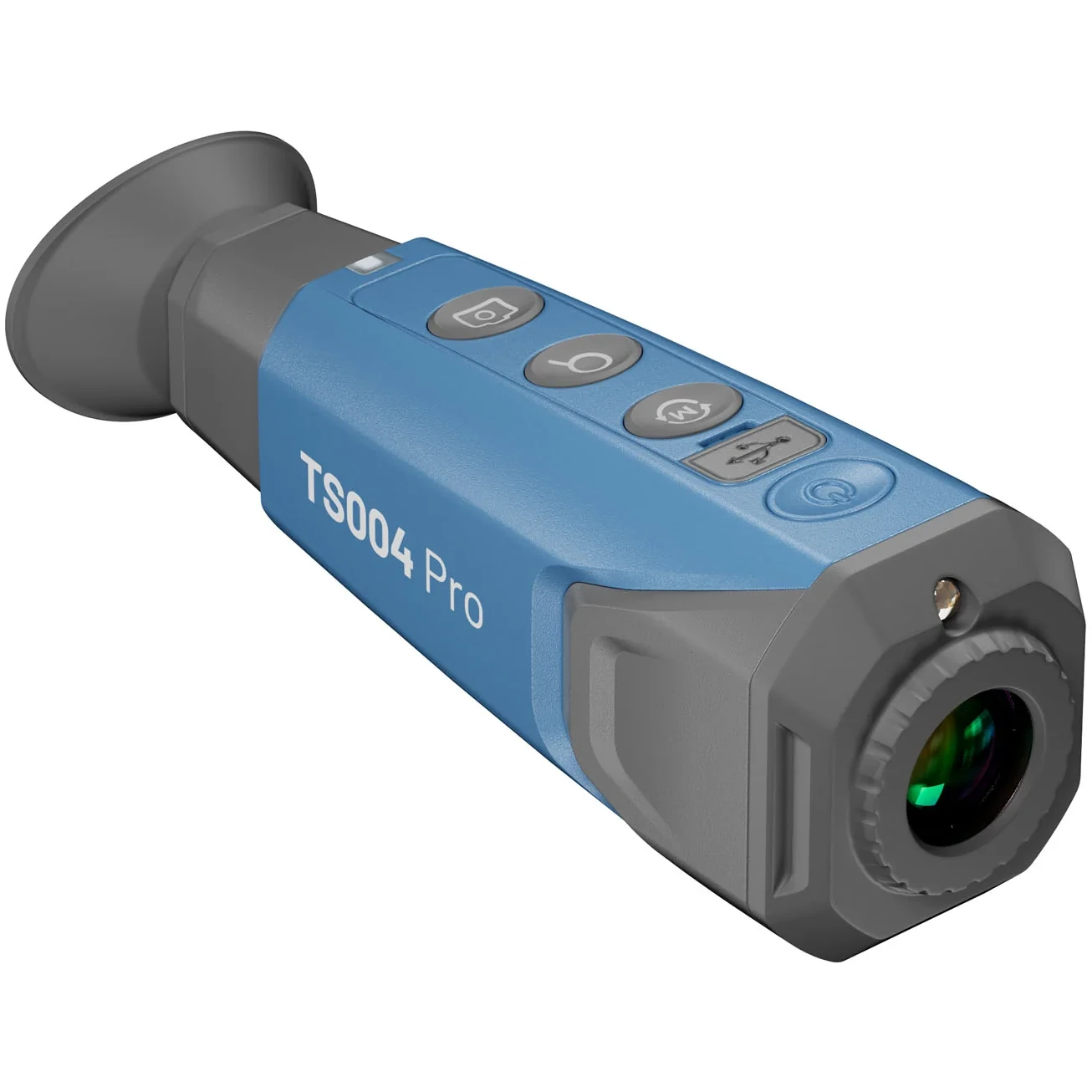

The TOPDON TS004 Pro is a compact, capable thermal monocular built for hunters, hikers, search and rescue teams, and anyone who needs to see clearly in the dark. It packs a high-resolution 384×288 thermal sensor into a lightweight 0.68 lb body with 10 hours of battery life and IP67 waterproofing — giving you dependable performance whether you're glassing fields before dawn or navigating a trail in a downpour.
384×288 Sensor With TISR Image Enhancement
The TS004 Pro steps up from standard entry-level thermal with a 384×288 infrared sensor — a meaningful resolution increase that translates to cleaner, more detailed imagery when scanning for animals or people at distance. TISR (Thermal Image Super Resolution) processing sharpens what you see on screen, and the <40mK thermal sensitivity picks up subtle heat differences that lower-grade sensors miss entirely. The 50Hz refresh rate keeps motion smooth, so targets don't blur or stutter as they move through the frame.
650-Yard Detection Range With AI-Assisted Identification
The 19mm fixed lens delivers a detection range of up to 650 yards, with an identification distance of roughly 145 yards — meaning you can spot a heat signature from far off and confirm what it is as you close distance. Built-in AI can automatically identify people and vehicles in the frame, giving you an extra layer of situational awareness when you're scanning a wide area in low light.
Five Color Palettes and Dual Fusion Mode
Five selectable color palettes let you tune the image for your environment and target type:
- White Hot
- Black Hot
- Red Hot
- Bird
- Fusion
Dual Fusion mode blends thermal and visible light imagery into a single combined view — useful when you need both heat detection and contextual visual detail at the same time. PIP (Picture-in-Picture) mode displays a 4x magnified close-up at the center of the screen while keeping the wider field of view active, so you can inspect a target without losing track of the surrounding area.
10-Hour Battery and Built-In LED Light
The internal 5,000mAh rechargeable battery delivers up to 10 hours of continuous runtime — enough to cover a full night of hunting or an extended patrol without stopping to recharge. When you need a bit of visible illumination, the built-in LED flashlight means you're not reaching for a separate light. Charging is handled via USB-C and takes approximately 4 hours from empty.
32GB Storage and TopInfrared App
With 32GB of onboard storage, the TS004 Pro can hold up to 270,000 thermal images or hours of recorded video. When connected wirelessly via the TopInfrared app, you can control the device remotely, capture photos and video from your phone, and receive OTA (over-the-air) firmware updates to keep the device current without cables or a computer.
IP67-Rated and Built to Travel Light
IP67 weatherproofing means the TS004 Pro can handle full submersion in water up to 1 meter deep for up to 30 minutes — a step above the IP65 rating on most outdoor scopes. It operates in temperatures from 14°F to 122°F and is drop-resistant to 1 meter. At just 0.68 lbs and 7.1 × 2.5 × 2.1 inches, it fits comfortably in a jacket pocket or pack. A tripod mount thread on the bottom lets you set it up for hands-free observation whenever you need a steadier view.
Frequently Asked Questions
What is the detection range of the TS004 Pro?
A: The TS004 Pro can detect heat signatures up to 650 yards away and identify targets at approximately 145 yards. Detection range indicates how far you can confirm a target is present, while identification range is where you can begin to make out what it is. Actual performance will vary depending on environmental conditions and target size.
What does the AI identification feature do?
A: The TS004 Pro has built-in AI that can automatically detect and flag people and vehicles in the thermal image. This provides an extra layer of awareness when scanning a wide area, helping you quickly identify what type of target is generating a heat signature without having to zoom in manually.
What is Dual Fusion mode?
A: Dual Fusion mode blends thermal infrared imaging with visible light imagery to create a combined view that shows both heat signatures and natural visual detail at the same time. It's particularly useful in situations where you need thermal detection capability but also want environmental context that a pure thermal image doesn't provide.
How does the TS004 Pro connect to a smartphone?
A: The TS004 Pro connects wirelessly via Wi-Fi to the free TopInfrared app. Through the app, you can remotely control the device, capture photos and video, view the live thermal feed on your phone's screen, and receive over-the-air firmware updates to keep the device up to date.
What is the IP67 rating, and how does it compare to IP65?
A: IP67 means the TS004 Pro is fully dustproof and can be submerged in water up to 1 meter deep for up to 30 minutes without damage. IP65, which is common on many outdoor thermal scopes, protects against water jets but not full submersion. For users hunting in rain, crossing streams, or working in wet conditions, IP67 provides a meaningful additional level of protection.
How long does the battery last, and how is it charged?
A: The built-in 5,000mAh battery provides up to 10 hours of continuous use and charges via the included USB-A to USB-C cable in approximately 4 hours. Because the battery is internal and non-removable, you can also top it up from a power bank in the field to extend your time out.
Does the TS004 Pro support a tripod?
A: Yes. The TS004 Pro has a standard tripod screw mount on the bottom of the body, making it compatible with most common camera tripods and monopods for steady, hands-free viewing during extended observation sessions.
