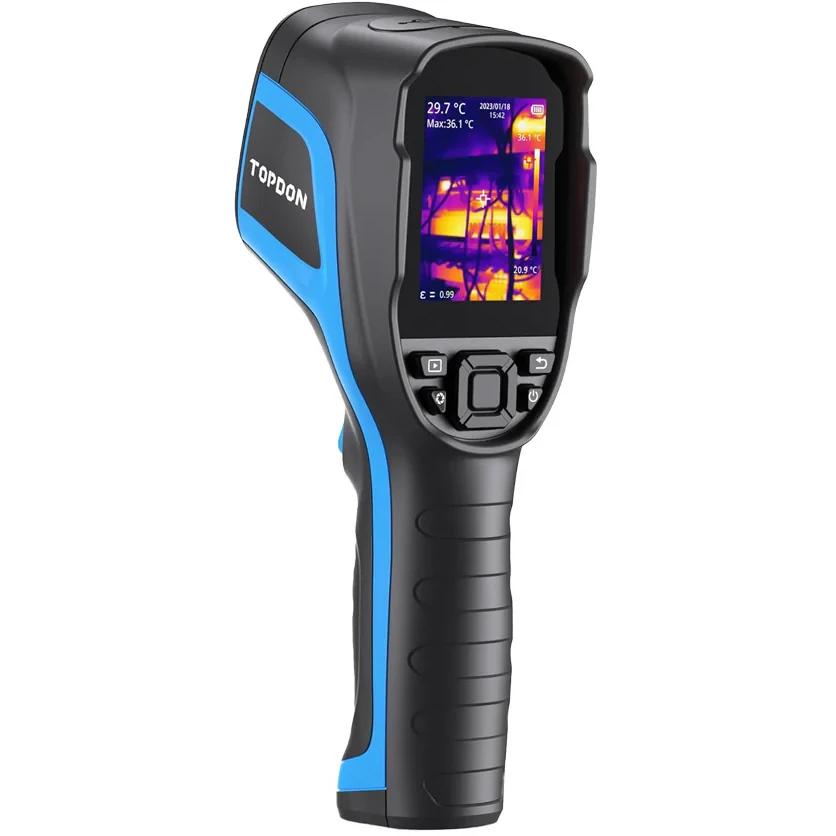

TOPDON TC004 Lite Handheld Thermal Imaging Camera

The TOPDON TC004 Lite is an entry-level thermal camera designed for homeowners, DIYers, hobbyists, and inspection professionals who want a reliable thermal imager without the cost or complexity of a higher-end unit. It's straightforward to use, runs for an exceptional 15 hours on a charge, and covers a wide enough temperature range to handle most real-world inspection tasks — from finding drafts around windows to checking for overloaded circuits and spotting moisture intrusion in walls.

160×120 Resolution With TISR Image Enhancement

The TC004 Lite uses a 160×120 infrared sensor — an entry-level resolution that produces clear, readable thermal images for general inspection work. TISR (Thermal Image Super Resolution) processing enhances the output to an effective 240×180 display resolution for sharper on-screen imagery. Thermal sensitivity is less than 40mK with a temperature resolution of 0.1°C, so subtle temperature differences show up visually rather than disappearing into the background. The 25Hz refresh rate keeps the image smooth as you move the camera around.

It's worth setting expectations honestly: the 160×120 sensor won't match the image detail of the TC004 or TC005. For general detection work — finding where heat is escaping, spotting a hot component, or identifying a moisture problem — it does the job well. For fine-grained inspection of complex electrical systems or tight mechanical components, a higher-resolution model will serve you better.

-4°F to 1,022°F Measurement Range

Despite its entry-level positioning, the TC004 Lite covers a measurement range of -4°F to 1,022°F (-20°C to 550°C) with an accuracy of ±2°C or ±2% of the reading. That's the same range as the more expensive models in the TC004 family, which means it's not limited to low-temperature home inspection work. Checking engine components, exhaust temperatures, electrical panels, and HVAC systems all fall well within its capability. Three measurement modes — center spot, hot spot, and cold spot — with automatic high/low temperature alarms round out the measurement toolkit.

Five Color Palettes for Any Environment

Five selectable color palettes give you visual flexibility depending on your inspection environment and what you're looking for. Switching palettes can make a hard-to-see heat gradient immediately obvious, and the TC004 Lite makes it simple to do on the fly without navigating through layers of menus.

15-Hour Battery — The Longest in the TC004 Family

The TC004 Lite's 2,900mAh battery delivers an impressive 15 hours of continuous runtime — the longest of any model in the TC004 lineup. This is partly a function of the lower-powered sensor and smaller display, but the end result is a camera you can use all day and into the next without stopping to recharge. When the battery does run low, a full charge takes approximately 4 hours via the included USB cable and power adapter.

Simple, Standalone Operation

The TC004 Lite is a fully self-contained device with a 2.8-inch display, onboard 512MB of storage for saving images, and a straightforward interface that doesn't require a learning curve to get useful results. It does not include Wi-Fi connectivity or PC software, keeping the workflow simple: capture images on the device, review them on the screen, and act on what you find. For users who don't need report generation or wireless transfer capabilities, this is a practical tradeoff that keeps the device easy to use and affordable.

Rugged Build for Everyday Use

The TC004 Lite carries an IP54 rating for dust and water splash resistance and withstands drops up to 6.6 feet (2 meters). It operates in ambient temperatures from -10°C to 50°C (14°F to 122°F). At 18.3 oz, it has a solid feel in hand, and the 1x/2x/4x zoom gives you flexibility when inspecting targets at different distances. A 40°×30° field of view is well suited for focused, close-range inspection work.
