Free Economy ShippingProduct Specifications for TOPDON TC003 5-Inch Thermal Imaging Camera Tablet
| BM Part #: | TC003 |
|---|---|
| Length: | 7" |
| Width: | 3.8" |
| Height: | 0.8" |
| Shipping Weight: | 4.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- TC003 Thermal Camera
- Power Adapter
- USB Cable
- User Manual
- Cleaning Cloth
- Carrying Case
- 256×192 IR Sensor With <40mK Sensitivity: High-resolution thermal imaging with 0.1°C temperature resolution and a 25Hz refresh rate delivers smooth, detailed imagery for identifying even subtle heat anomalies.
- -4°F to 1,022°F Measurement Range: Covers the full spectrum of professional inspection scenarios — from cold-air drafts and refrigeration systems to high-heat electrical panels and engine components — with ±2°C / ±2% accuracy.
- 4 Imaging Modes and 11 Color Palettes: Switch between Thermal, Visible, Dual Fusion, and PIP modes, and choose from 11 palettes to make temperature data as clear and readable as possible for your application.
- Waveform Temperature Graphing: Log and visualize temperature changes over time in a waveform graph — ideal for diagnosing intermittent overheating issues, tracking thermal behavior under load, or monitoring equipment during operation.
- OTG Expansion for Endoscopes and More: Built-in OTG support lets you connect compatible USB accessories including endoscopes, oscilloscopes, and USB storage drives, extending the TC003's capability beyond standard thermal inspection.
- Self-Contained Android Tablet: Runs independently on Android 11 with a 5-inch touchscreen, 5,000mAh battery (4-hour runtime), built-in flashlight, 2MP low-light camera, tripod mount, and Windows compatibility via TopView software — no phone or external device required.
Product Description

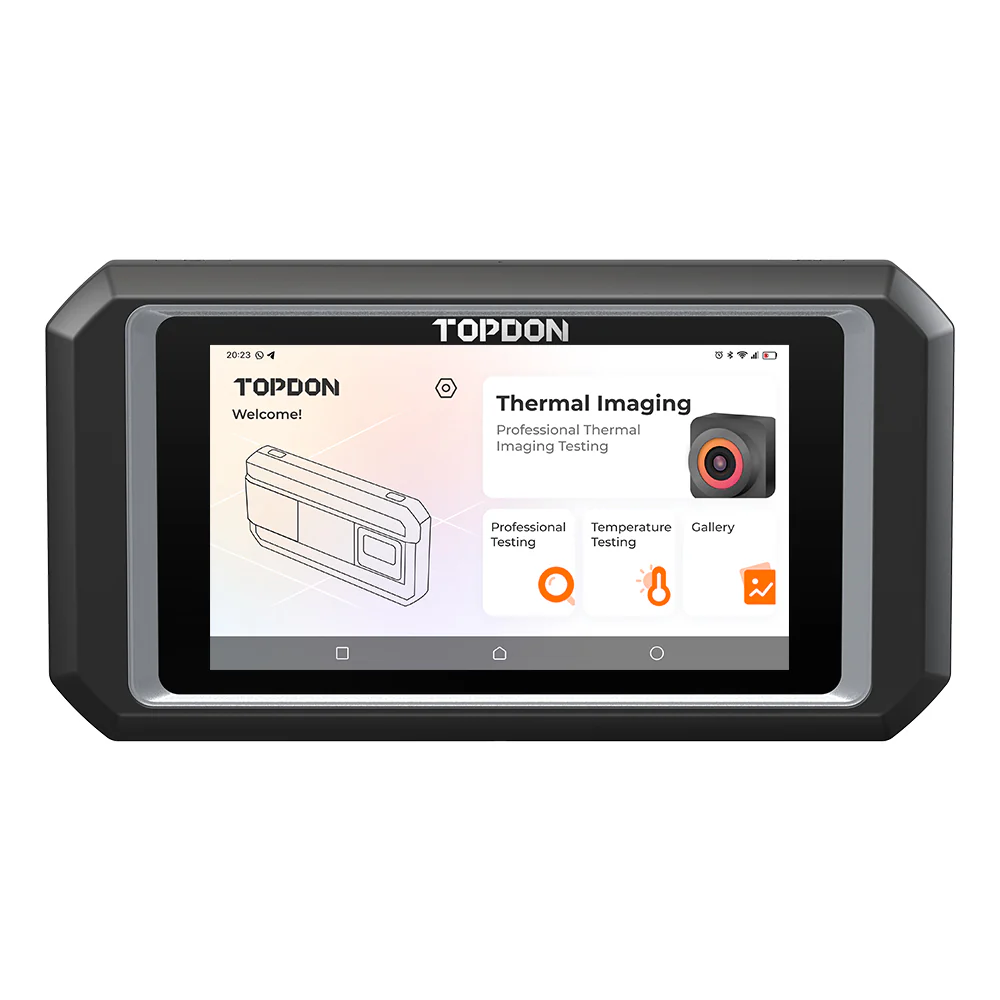

The TOPDON TC003 is a self-contained thermal imaging tablet built for mechanics, HVAC technicians, electricians, and inspectors who want a dedicated tool — not a smartphone attachment. Running on Android 11 with its own 5-inch touchscreen and 5,000mAh battery, the TC003 is ready to work the moment you pick it up, with no phone required and no apps to configure on a separate device.
256×192 IR Resolution With <40mK Sensitivity
The TC003's 256×192 infrared sensor captures detailed, high-contrast thermal imagery with a thermal sensitivity of less than 40mK and a temperature resolution of 0.1°C. In practice, this means you can see subtle heat differences that lower-resolution sensors blur together — useful when inspecting circuit boards, HVAC components, or electrical panels where small anomalies matter. The 25Hz refresh rate keeps the image smooth and responsive as you scan.
-4°F to 1,022°F Measurement Range
With a measurement range spanning -4°F to 1,022°F (-20°C to 550°C) and an accuracy of ±2°C or ±2% of the reading, the TC003 handles just about any professional inspection scenario. From cold-air infiltration at the low end to high-heat engine components, industrial equipment, and electrical faults at the high end, you're covered. The optimal working distance for accurate temperature measurement is 8 inches to roughly 16 feet (0.2m to 5m).
4 Imaging Modes and 11 Color Palettes
The TC003 pairs its infrared sensor with a 2-megapixel low-light visible-light camera, giving you four imaging modes to work with:
- Thermal Only — pure infrared image for maximum heat contrast
- Visible Only — standard camera view for reference
- Dual Fusion — blends 50% visible light into the thermal image for clearer object context
- PIP (Picture-in-Picture) — displays a zoomed thermal view within the wider visible image simultaneously
Eleven color palettes — including Iron Red, White Hot, Black Hot, Arctic, Rainbow, Red Hot, Medical, Jungle, Golden Red, Shimmer, and Aureate — let you tailor the display to whatever makes temperature data most readable in your current environment.
4 Temperature Reading Modes for Precise Data
Rather than locking you into a single measurement style, the TC003 supports four distinct temperature reading modes: single-point spot, line (showing the highest and lowest along the line), area plane (highest and lowest within a defined zone), and full-frame view showing the center spot alongside the overall high and low. You can select up to three areas per mode simultaneously, and the on-screen color bar updates in real time to show the temperature range of whatever area you're targeting. High and low temperature alarms can be set to automatically flag readings that fall outside your defined range.
Waveform Graphing for Tracking Temperature Over Time
One of the TC003's standout capabilities is its ability to log temperature data over time and generate a waveform graph directly on the device. This is especially useful for diagnosing intermittent issues — if a component overheats only under load or during a drive cycle, the waveform will show you exactly when and how sharply the temperature spiked. It's the kind of data that makes the difference between finding a problem confidently and guessing.
Advanced Secondary Analysis on Saved Images
The TC003 doesn't just capture thermal images — it lets you go back and dig deeper into them. Saved images support per-pixel temperature analysis, so you can revisit a capture and pull exact temperature readings from any point in the frame. Swipe the color bar to highlight a specific temperature range, and add spot, line, or plane measurements after the fact for in-depth review.
OTG Support for Expanded Functionality
The TC003 includes OTG (On-The-Go) functionality, which allows it to act as a host device and connect to compatible USB accessories. This opens up the ability to pair it with an endoscope for thermal inspection of tight or enclosed spaces, connect to an oscilloscope for electrical diagnostics, or plug in a USB drive to offload captured data. It's a level of flexibility that most thermal cameras at this price point simply don't offer.
Self-Contained Hardware Built for the Job
The TC003 runs Android 11 on a 5-inch 854×480 touchscreen with 2GB of RAM and 32GB of onboard storage. The 5,000mAh battery provides up to 4 hours of continuous runtime and charges fully in about 3 hours. A built-in flashlight and low-light visible camera keep you working in dark spaces, and a standard 1/4-20 UNC tripod screw hole on the device lets you mount it hands-free when needed. The TC003 is also compatible with TopView software on Windows, which expands the palette selection to 99 colors and adds additional PC-based analysis tools. At about 13 oz (367g), it's light enough to carry comfortably through a full day on the job.
Frequently Asked Questions
Does the TC003 require a smartphone or computer to operate?
A: No. The TC003 is a fully self-contained Android 11 device with its own 5-inch touchscreen, battery, and onboard storage. It operates completely independently — no phone, tablet, or computer needed. It is also compatible with Windows computers via TopView software when you want to perform more advanced PC-based analysis.
What temperature range can the TC003 measure?
A: The TC003 measures temperatures from -4°F to 1,022°F (-20°C to 550°C) with an accuracy of ±2°C or ±2% — whichever is greater. The recommended working distance for accurate temperature measurement is approximately 8 inches to 16 feet (0.2m to 5m).
What is the waveform graphing feature and when would I use it?
A: The TC003 can log temperature readings over time from a selected spot, line, or area and display those readings as a waveform graph on screen. This is most useful for diagnosing intermittent problems — like a component that only overheats under load or during extended operation — where a single static reading won't tell the full story. It lets you see not just what the temperature is, but how it changes over time.
What does OTG support allow me to do?
A: OTG (On-The-Go) lets the TC003 act as a host device and connect compatible USB accessories directly to it. This includes endoscopes for inspecting tight or enclosed spaces, oscilloscopes for electrical diagnostics, and USB drives for data transfer. It's a meaningful capability upgrade that extends the TC003 well beyond a standard thermal camera.
What are the four imaging modes on the TC003?
A: The TC003 supports four imaging modes: Thermal Only (pure infrared), Visible Only (standard camera), Dual Fusion (blends 50% of the visible light image into the thermal view for clearer object context), and PIP — Picture-in-Picture — which displays a zoomed thermal overlay within the wider visible image at the same time.
Can I review and analyze saved thermal images after the fact?
A: Yes. The TC003 supports per-pixel temperature analysis on saved images, meaning you can pull exact temperature readings from any point in a previously captured frame. You can also add spot, line, or plane measurements after the image is taken and swipe the color bar to highlight a specific temperature range for detailed review.
Is the TC003 durable enough for fieldwork?
A: The TC003 is rated IP54 for protection against dust and water splashing from any direction, and is drop-resistant to nearly 5 feet (1.5 meters). It operates in ambient temperatures from 14°F to 122°F (-10°C to +50°C). It also includes overcharge protection to safeguard the 5,000mAh battery during charging.
Does the TC003 work with Windows?
A: Yes. When connected to a Windows laptop or desktop via USB, the TC003 works with TopView software, which provides PC-based thermal analysis, expanded dimension selection tools (point, line, and surface measurements), and access to 99 color palettes — significantly more than the 11 available on the device itself.
