Free Economy ShippingProduct Specifications for TOPDON TC001 Max Dual-Lens Thermal Camera — iOS, Android & Windows
| BM Part #: | TC001MAX |
|---|---|
| Length: | 2.8" |
| Width: | 1.6" |
| Height: | 0.5" |
| Shipping Weight: | 2.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- TC001 Max
- USB-A to USB-C Cable
- Adapters: USB-C to USB-C & USB-C to Lightning
- Microfiber Cleaning Cloth
- Carrying Bag
- User Manual
- Universal Plug-and-Play Compatibility: Connects via USB-C to iOS, Android, and Windows devices with no battery or charging required — USB-C and Lightning adapters included for broad out-of-the-box compatibility.
- Dual-Lens Thermal Fusion: A built-in visible-light camera blends with thermal imaging in Dual Fusion mode to produce overlaid images that are easier to read and faster to act on than thermal-only views.
- 256×192 IR With TISR Enhancement: The infrared sensor delivers an effective 512×384 display resolution through TISR processing, with <40mK sensitivity and 0.1°C temperature resolution for detecting subtle heat patterns.
- -4°F to 1,022°F Measurement Range: Covers cold-air leaks all the way to high-heat industrial equipment, with ±2°C / ±2% accuracy and spot, line, and area measurement modes for flexible data collection.
- 10 Color Palettes With High/Low Temp Alarms: Choose from 10 preset palettes including Medical, Arctic, Jungle, and Iron Red, plus a custom mode — with automatic alarms that flag readings outside your defined temperature thresholds.
- Pocket-Sized and Drop-Resistant: At just over 1 oz (30g) and 2.8 × 1.65 × 0.55 inches, the TC001 Max slips into any pocket and survives drops up to 6.6 feet — with TopInfrared and TopView app support and TopFix AI analysis built in.
Product Description

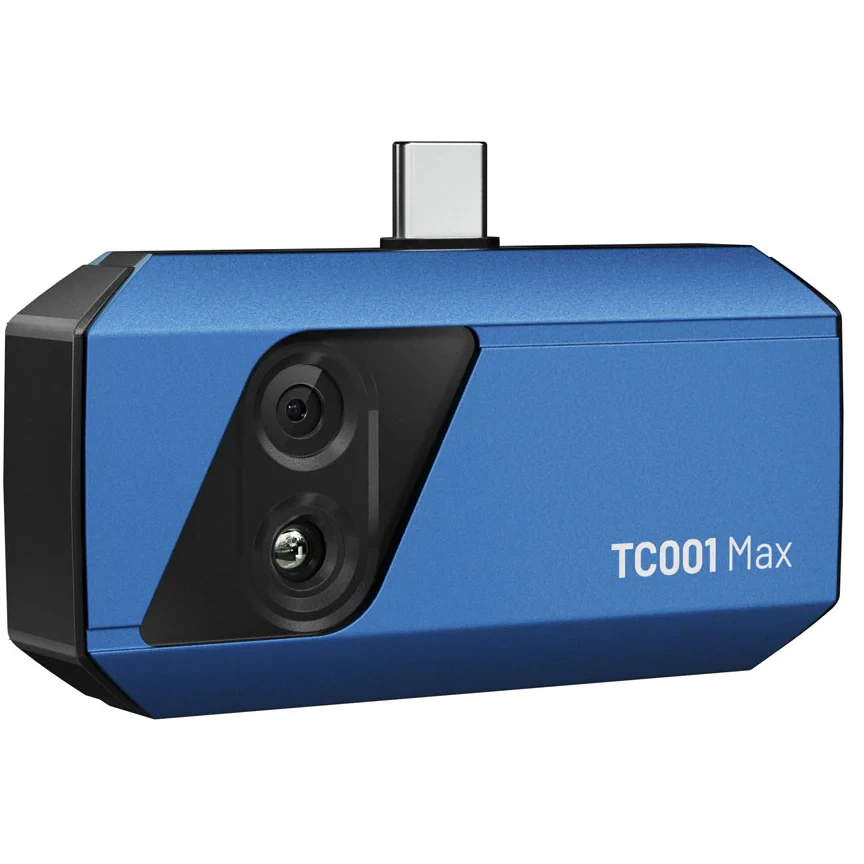

The TOPDON TC001 Max is a compact, plug-in thermal camera that turns your existing smartphone, tablet, or laptop into a capable thermal inspection tool. Whether you're an HVAC technician chasing a refrigerant leak, an electrician checking for overloaded circuits, a home inspector scanning walls for moisture intrusion, or a mechanic looking for a heat anomaly under the hood — the TC001 Max gives you clear, actionable thermal data without the bulk or cost of a dedicated handheld unit.
Plug In and Start Inspecting — No Battery Required
The TC001 Max connects directly via USB-C and draws less than 0.38W from your device, so there's no battery to charge, no separate power cable to manage, and no setup process to slow you down. It's ready the moment you plug it in. The kit includes both a USB-C to USB-C adapter and a USB-C to Lightning adapter, covering iOS, Android, and Windows devices right out of the box. Compatibility is as broad as it gets — iPhones, iPads, Android phones and tablets, and Windows laptops are all supported.
Dual-Lens Design for Sharper, More Useful Images
Most entry-level thermal cameras produce only infrared imagery, which can look soft and difficult to interpret without context. The TC001 Max includes a visible-light camera alongside the thermal sensor. The two are combined in Dual Fusion mode to produce a blended image where thermal heat patterns are overlaid on the natural visible-light picture. The result is thermal data that's much easier to read at a glance — you can see exactly where a heat signature is in relation to the physical object you're inspecting, without having to mentally piece it together.
256×192 IR Sensor Enhanced to 512×384 With TISR
The TC001 Max uses a 256×192 infrared sensor, with TISR (Thermal Image Super Resolution) processing that sharpens the output to an effective 512×384 display resolution. In practice, this means finer hotspot detection, cleaner edges, and more readable imagery — especially when inspecting smaller components or subtle temperature gradients. The <40mK thermal sensitivity captures temperature differences as fine as 0.1°C, so you won't miss a slow-developing hot spot just because it hasn't gotten critical yet.
Temperature Range and Accuracy Built for Professional Work
The TC001 Max measures temperatures from -4°F to 1,022°F (-20°C to 550°C) with an accuracy of ±2°C or ±2%, whichever is greater. That range covers nearly any professional inspection scenario — from detecting cold-air drafts at the low end to scanning high-heat industrial equipment, exhaust components, or electrical panels at the high end. The optimal measurement distance is 8 inches to roughly 16 feet (0.2m to 5m), which fits comfortably within most HVAC, electrical, and building inspection workflows.
10 Color Palettes and Flexible Measurement Modes
With 10 selectable color palettes — including Iron Red, White Hot, Black Hot, Arctic, Rainbow, Red Hot, Medical, Jungle, Golden Red, and Shimmer — you can tune the display for whatever makes the temperature data most visible in your current environment. A custom palette mode gives you additional flexibility when working with specific applications. Measurement modes support single-point spot readings, line measurements, and full-area plane measurements, so you can gather exactly the data the job calls for. High and low temperature alarms can be set to flag readings that fall outside your defined range automatically.
TopInfrared App and TopFix AI Analysis
The TC001 Max works with the TopInfrared mobile app for iOS and Android, and with TopView software on Windows. Both provide live thermal viewing, image capture, measurement overlays, and one-click export for reports. The TopFix AI assistant can analyze your thermal images to help identify potential issues and provide guidance — a useful second opinion when you're in the field and need to move quickly.
Genuinely Pocket-Sized
The TC001 Max weighs just over 1 ounce (30g) and measures 2.8 × 1.65 × 0.55 inches — about the size of a USB drive. It fits in a shirt pocket, clips into a tool bag, and goes wherever your phone goes. Despite its size, it's rated for drops up to 6.6 feet (2 meters) and operates in temperatures from 14°F to 122°F (-10°C to +50°C), so it holds up in job-site conditions.
Frequently Asked Questions
What devices is the TC001 Max compatible with?
A: The TC001 Max works with iOS devices (iPhone and iPad), Android smartphones and tablets, and Windows laptops and computers — all via USB-C connection. The kit includes a USB-C to USB-C adapter and a USB-C to Lightning adapter, so most current devices are covered right out of the box without needing to purchase additional accessories.
Does the TC001 Max need to be charged?
A: No. The TC001 Max draws its power directly from the device it's plugged into and uses less than 0.38W — a minimal draw that won't significantly impact your phone or tablet's battery during a normal inspection session. There's no internal battery to charge and no separate power source required.
What is Dual Fusion mode?
A: Dual Fusion mode blends the output from the TC001 Max's thermal infrared sensor with its built-in visible-light camera to create a single combined image. Thermal heat patterns are overlaid on the natural visual picture, making it much easier to identify exactly where a hot spot or cold area is located on the object you're inspecting — without having to mentally match up a separate thermal image to what you're physically looking at.
What is the temperature measurement range and accuracy?
A: The TC001 Max measures temperatures from -4°F to 1,022°F (-20°C to 550°C) with an accuracy of ±2°C or ±2% — whichever value is greater. The optimal working distance for temperature measurement is approximately 8 inches to 16 feet (0.2m to 5m).
What apps does the TC001 Max use?
A: On iOS and Android, the TC001 Max works with the TopInfrared app, which provides live thermal viewing, image capture, measurement tools, and access to the TopFix AI analysis assistant. On Windows computers, it works with TopView software, which offers the same core functions plus additional PC-based reporting and export tools. Both are available as free downloads.
What are the color palette options?
A: The TC001 Max offers 10 preset color palettes: Iron Red, White Hot, Black Hot, Arctic, Rainbow, Red Hot, Medical, Jungle, Golden Red, and Shimmer. A custom palette mode is also available for users who want to create their own color mapping for specific applications.
What types of inspections is the TC001 Max best suited for?
A: The TC001 Max is well suited for HVAC inspections (finding air leaks, refrigerant issues, duct problems), electrical inspections (identifying overloaded breakers, loose connections, hot components), building and home inspections (moisture intrusion, insulation gaps, heat loss), and mechanical or automotive inspections (engine hot spots, exhaust issues, brake heat). Its wide -4°F to 1,022°F range makes it equally useful for low-temperature and high-temperature applications.
Is the TC001 Max durable enough for job-site use?
A: Yes. Despite its small size, the TC001 Max is rated for drops up to 6.6 feet (2 meters) and operates in ambient temperatures from 14°F to 122°F (-10°C to +50°C). It's built to handle the day-to-day reality of working in the field, not just controlled indoor environments.
