Free Economy ShippingProduct Specifications for TOPDON TC001 High-Resolution Thermal Imaging Camera for Android & Windows
| BM Part #: | TC001 |
|---|---|
| Length: | 2.8" |
| Width: | 0.55" |
| Height: | 1.65" |
| Shipping Weight: | 0.75Lbs (12 oz) |
| Warranty: | 1 Year |
What's in the box:
- TC001 Thermal Camera
- Carrying Bag
- 50cm Multifunctional Adapter Cable
- Cleaning Cloth
- User Manual
- Superior 256x192 IR Resolution: Captures clear, detailed thermal images with no watermarks, ideal for circuit boards, electrical panels, and automotive diagnostics.

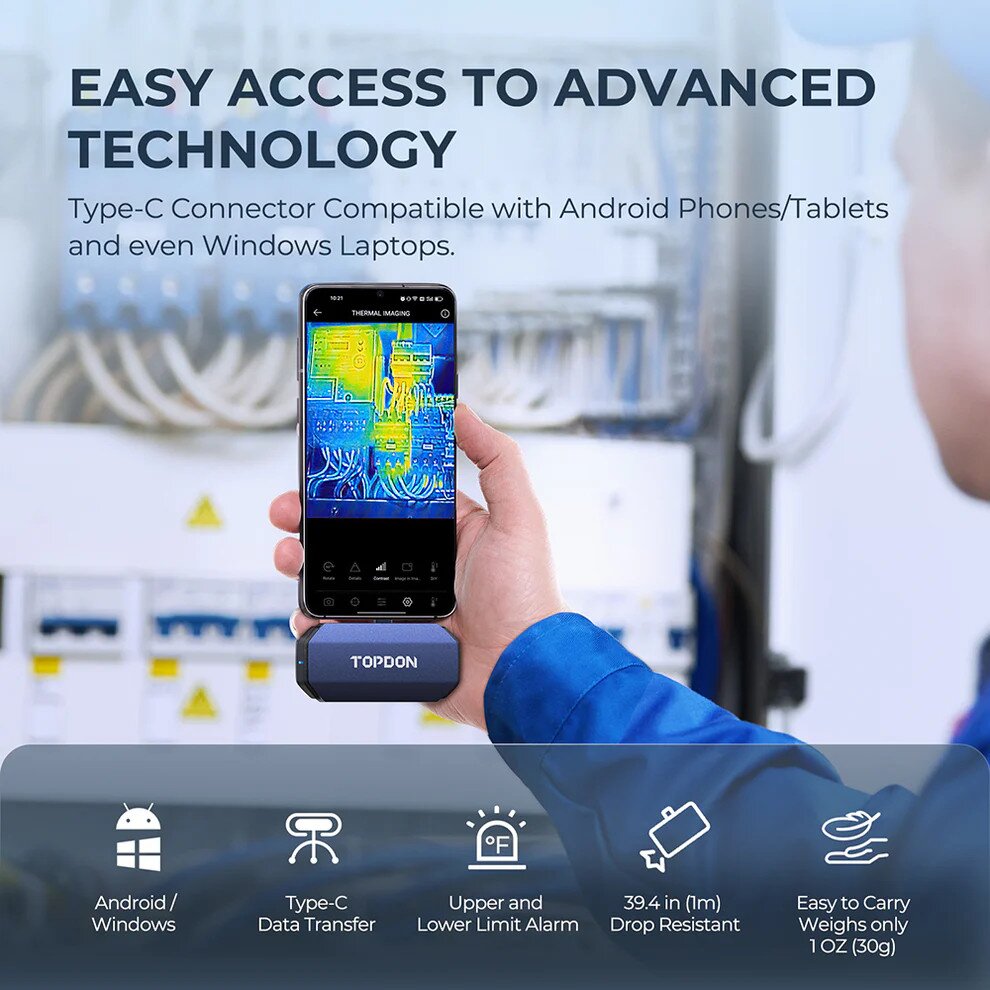

- Broad Compatibility & Portability: Plug-and-play with USB-C for Android phones, tablets, and Windows devices. Ultra-compact design (30g) for ultimate on-the-go convenience.
- Wide Temperature Range & Precision: Measures from -4°F to 1022°F (-20°C to 550°C) with ±3.6°F (2°C) or 2% accuracy, detecting subtle 0.1°C temperature variations.
- Advanced Thermal App Features: Monitor temperature changes with real-time graphs and waveform analysis. Customize temperature limits, and save data for easy reporting.
- Low Power Consumption: Draws only 0.35W, powered directly by your device for extended use without the need for an external battery.
- Enhanced Image Processing: Offers 10 color palettes, sharpness/contrast adjustments, and a picture-in-picture mode for improved target recognition.
Product Description
Unlock Professional-Grade Thermal Imaging with the TOPDON TC001
Turn your Android smartphone, tablet, or Windows laptop into a powerful, high-resolution thermal imager with the TOPDON TC001. This compact, plug-and-play camera delivers unmatched clarity and precision, making it the perfect tool for a wide range of applications—from professional HVAC and automotive diagnostics to DIY home inspections and electrical troubleshooting.
Why Choose the TOPDON TC001?
Unlike bulky, standalone thermal cameras, the TC001 leverages the power of your existing device, providing a massive, high-resolution display for viewing thermal data in real time. Its superior 256x192 IR resolution and advanced app features, including live waveform graphs and temperature recording, give you a level of detail and control that surpasses many competing models at a fraction of the cost.
Key Features:
- Superior Image Quality: The TC001's 256x192 IR resolution delivers crisp, detailed thermal images, making it perfect for identifying hot spots on circuit boards, verifying insulation integrity, or pinpointing engine component issues.
- Optimized Performance: With a broad temperature range of -4°F to 1022°F (-20°C to 550°C) and a temperature resolution of 0.1°C, this camera detects subtle temperature variations with extreme precision.

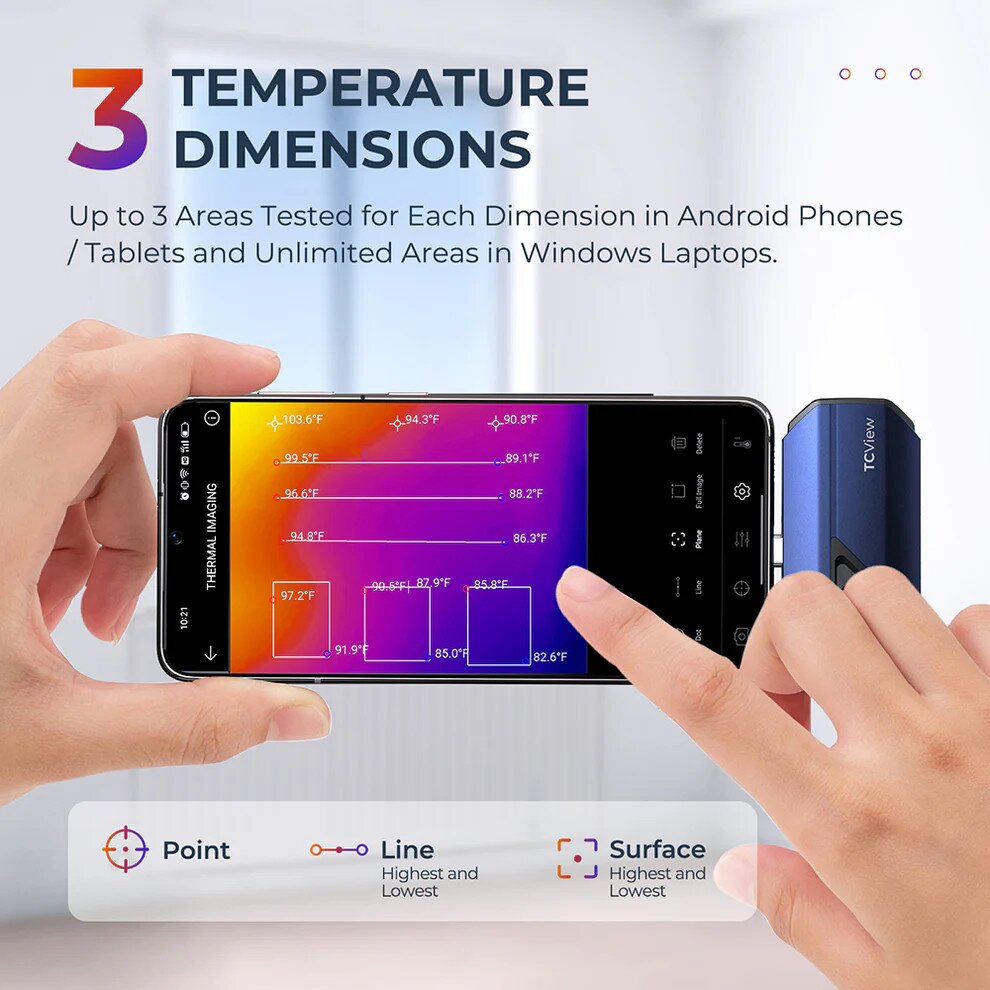

- Intuitive & Powerful App: The TOPDON TCView app provides professional-grade features, including customizable temperature limits, multiple measurement modes (Dot, Line, and Plane), and the ability to export data for detailed analysis and client reports.
- Rugged & Reliable: Weighing just 30g and built to withstand a 2-meter drop, the TC001 is designed for the rigors of any job site. It draws minimal power from your device, ensuring long-lasting operation.
- Versatile Applications: Ideal for HVAC professionals to detect air leaks, electricians to find overloaded circuits, mechanics to diagnose engine cooling systems, and homeowners to locate drafts or water leaks.
The TC001 is designed for hassle-free use, with no registration required and a simple plug-and-play setup. And when you buy from Battery Mart, you can count on fast shipping, friendly customer service, and a 60-day money-back guarantee to ensure you're completely satisfied with your purchase.
Frequently Asked Questions (FAQ):
Q: Is the TOPDON TC001 compatible with iOS devices?
A: No, the TC001 is designed for Android and Windows devices only. For iOS compatibility, consider the TOPDON TC002 model.
Q: Do I need to remove my phone case to use the TC001?
A: The TC001 is compatible with most phone cases. However, very thick or rugged cases may require removal for proper connection. The included multifunctional adapter cable can also be used for a more flexible connection without removing your case.
Q: What is the maximum operating distance for accurate temperature readings?
A: The TC001 is calibrated for optimal accuracy at distances between 0.2m to 5m (approximately 8 inches to 16 feet). For objects beyond this range, the temperature readings may be less precise.
Q: What is the clicking sound the camera sometimes makes?
A: The clicking sound is a normal part of the camera's operation. It indicates that the device's internal shutter is periodically calibrating the sensor to ensure accurate temperature readings. This is a common feature in uncooled thermal cameras and can be turned off in the app settings if desired.
Q: Can the TOPDON TC001 see through glass or walls?
A: No. The TC001 detects long-wave infrared radiation (8-14μm), which does not pass through solid objects like walls or windows. It is used to measure the surface temperature of the object you are viewing.

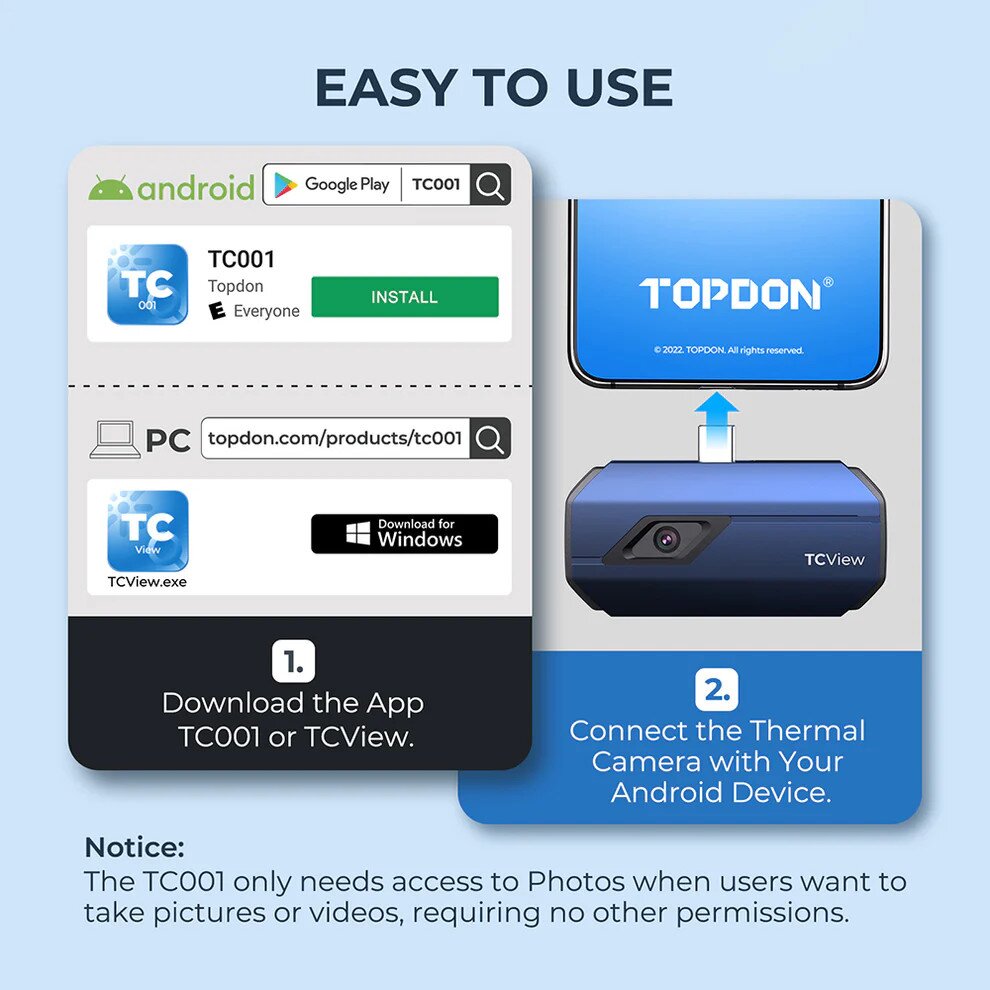

Q: What app do I need for the TC001?
A: For Android devices, you will use the TOPDON TCView or TopInfrared app, which can be downloaded from the Google Play Store. For Windows devices, the TCView software is available for download on the TOPDON official website.
