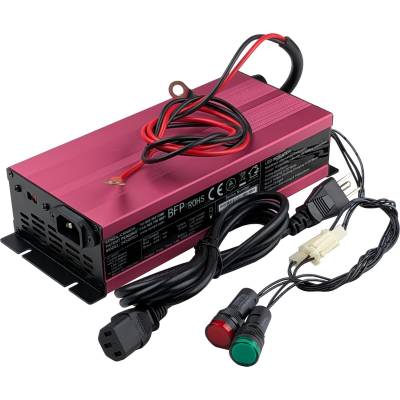

Product Specifications for Soneil 2424SR24 24V 12A Programmable Wi-Fi Battery Charger
| BM Part #: | 2424SR24 |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 12 Amp |
| Length: | 8.9" |
| Width: | 4.1" |
| Height: | 2.1" |
| Shipping Weight: | 3.00Lbs |
| Warranty: | 1 Year |
| Datasheet: | Download |
- Wi-Fi Connectivity: Connect from your phone or computer to monitor and adjust charging easily.
- 24V, 12A Output: Delivers strong current to refill 24V battery packs faster than small chargers.
- Custom Charging Curves: Upload your own curve to match the exact needs of your battery.
- Multi-Chemistry Support: Charge lead acid, gel, AGM, wet, and lithium packs with the right curve selected.
- 24-Hour Safety Timer: Stops charging automatically if float mode isn't reached, with a flashing red light alert.
- Remote LED Indicators: Red and green lights on cords flag issues where you can see them.
- Ready-to-Use Cords: A standard US three-prong plug and ring terminals make hookup simple.
- Compact, Lightweight Build: At just 3.6 lbs and 8.9 inches long, it tucks into tight equipment spaces.
Product Description
Are you tired of chargers that guess at what your battery needs? The Soneil 2424SR24 24V battery charger takes the guesswork out. It's a programmable charger that delivers up to 12 amps and lets you tailor the charge to your battery.
Why Choose a Programmable Charger?
Not every battery charges the same way. A generic charger can undercharge, overcharge, or leave you waiting around. With this one, you choose the charging profile, so power goes into your battery the way it was meant to.
That means better performance from your pack and fewer headaches for your team.
Smarter Charging, Stage by Stage
Soneil's example charging curve moves through seven stages, from a gentle start to long-term upkeep. Along the way, it can:
- Use a pulse stage to desulphate lead acid batteries
- Start deeply drained packs with low current first
- Test your battery to decide if reconditioning is needed
- Hold a float charge so you're ready when work starts
Easy to Set Up and Easy to Read
Hooking up is simple. Plug the standard three-prong cord into a US outlet and attach the ring terminals to your battery.
The red and green status LEDs sit on cords instead of the chassis. That lets you place them somewhere visible, even when the charger itself is tucked out of the way.
Built for Real-World Work
This charger is a great fit for electric vehicles, floor cleaning machines, material handling equipment, and rehabilitation equipment. These machines work hard and get charged often, so dependable performance matters.
The 2424SR24 delivers better than 80% efficiency and has been vibration tested along all three axes. It also operates in temperatures from 32°F to 122°F, with humidity between 20% and 90%.
Peace of Mind Built In
Soneil backs this charger with approvals including UL, cUL, DOE, TUV, GS, RoHS, BFP, and CE standards. You can plug in knowing it meets widely recognized safety and quality benchmarks.
Need to secure it to your equipment? Soneil offers a mounting plate option, so contact our team about availability.
Ready to charge smarter? Add the Soneil 2424SR24 to your cart today and give your 24V batteries the care they deserve.
Frequently Asked Questions
What types of batteries can I charge with the Soneil 2424SR24?
A: This 24V charger supports lead acid (gel, AGM, and wet) and lithium batteries. The charging curve must match your battery's chemistry, so confirm the recommended settings with your battery manufacturer. It delivers up to 12 amps, so also check your battery's maximum charge rate.
How do I connect it to my battery?
A: The charger has ring terminal battery leads. Attach them to your battery's terminals, matching positive to positive and negative to negative, and make sure the connections are tight before plugging in.
How do I choose or change the charging curve?
A: You can select a curve using the dip switch or the virtual dip switch. Built-in Wi-Fi lets you sync with a desktop or smart device to monitor live data and upload custom curves.
Can I use it with 220V power or outside the US?
A: Yes. The charger accepts 100 to 240Vac input. It comes with a standard US three-prong cord, so you'll need a plug adapter for non-US outlets.
What does the flashing red light mean?
A: The red LED flashes when the safety timer has stopped charging because the battery didn't reach float mode within 24 hours. Check your battery and connections. If it happens again, the battery may need to be tested or replaced.
