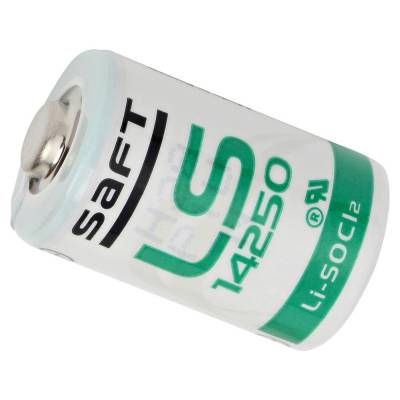

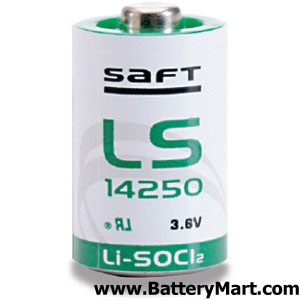

Product Specifications for Saft LS 14250 3.6 Volt 1/2 AA Lithium Battery
|BM Part #:||BAT-TL5101-S|
|Width:||0.57" (14.55 mm)|
|Height:||0.99" (25.15 mm)|
|Shipping Weight:||0.03Lbs (0.48 oz)|
|Warranty:||45 Day Return|
- Ability to operate from -60°C to +85°C
- Cells are non restricted for transport
- Non-flammable electrolyte
- Cells non-pressurized at room temperature
- High-energy concentric "bobbin" electrodes
- Corrosion-proof containers
- Hermetic sealing based on rugged glass-to-metal seals (TIG or laser weld) up to 110°C
- Safety vents, fuses
- Unrivaled nominal capacities
- Long shelf life when storage conditions respected
This Saft LS 14250 replacement 3.6 volt 1/2 AA lithium battery is made with high quality parts and is guaranteed to meet or exceed the original equipment manufacturers specifications at a reduced price.
Main applications for the battery include:
- Utility metering
- Automatic meter reading
- Alarms and security devices
- Tollgate systems
- Memory back-up
- Computer real-time clocks
- Tracking systems
- Automotive electronics
- Professional electronics
- High voltage response, stable during most of the lifetime of the application
- Wide operating temperature range (-60°C / +85°C)
- Low self-discharge rate (less than 1% per year of storage at +20°C)
- Easy integration into compact systems
- Superior resistance to atmospheric corrosion
Replaces these batteries:
1770-XZ, 3B26, 418-0076, 60-0576-100, 6135-01-435-4921, 6135-99-770-2535, 6ES5-980-0MA11, 6ES59800MA11, 742-0011, 922-1262, ER3, ER3S, ER3STC, ER4, LS14250, LS14250C, LS3, SB-AA02, T04/41, T04/51, TL-2150, TL-2150/S, TL-2151, TL-5101, TL-5112, TL-5151, TL-5151S, TL2150, TL2151, TL5101, TL5112, TL5151, TL5151S, TL5902, VL1/2AA
