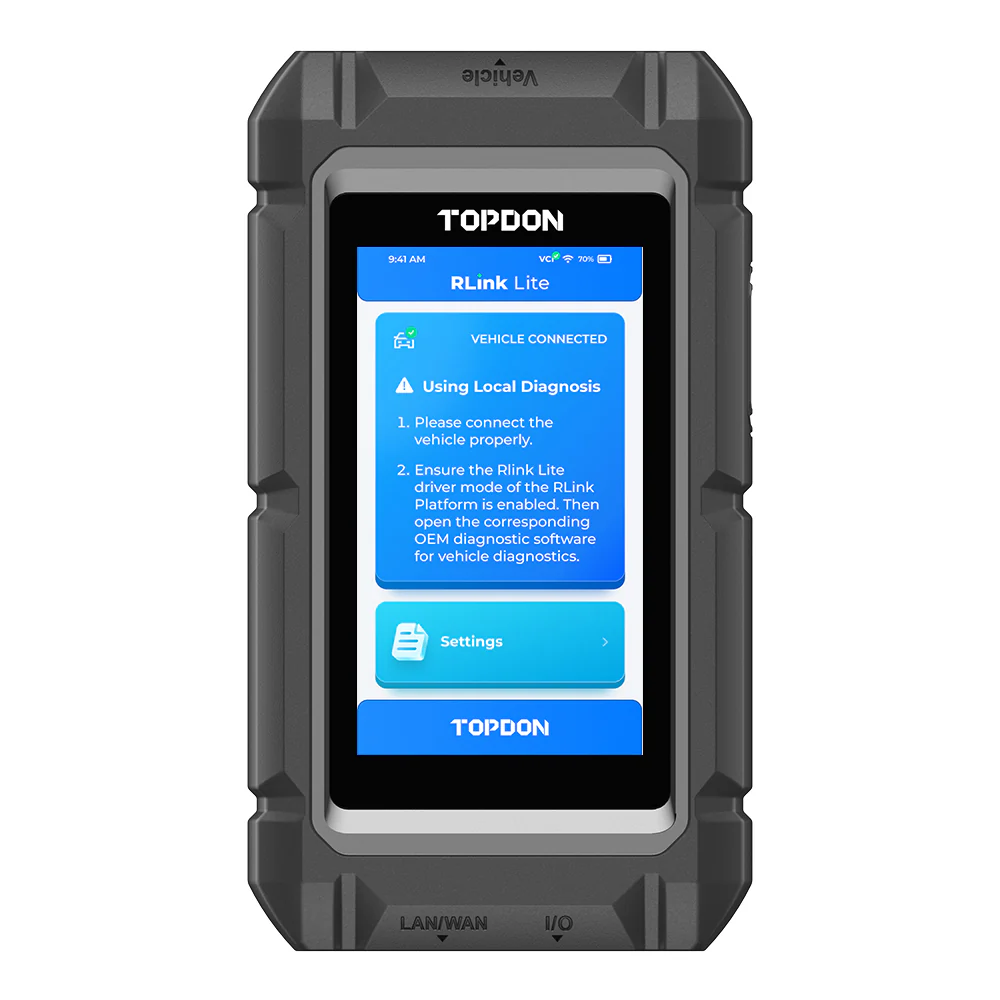

Free Economy ShippingProduct Specifications for TOPDON RLink Lite — J2534 Pass-Thru Programmer with Touchscreen
| BM Part #: | RLINK-LITE |
|---|---|
| Length: | 7.80" |
| Width: | 4.25" |
| Height: | 1.65" |
| Shipping Weight: | 1.00Lbs |
| Warranty: | 1 Year |
What's in the box:
- RLink Lite
- 6.5 Ft.OBD2 Diagnostic Cable
- 16 Ft. Network Cable
- 5 Ft. USB 2.0 Cable
- 12V DC Power Adapter
- Quick User Guide
- Carrying Case
- Package Box
- Full OEM Coverage Across 16 Brands: Supports all major OE software platforms including Mercedes-Benz, BMW, Porsche, Ford, GM, Toyota, Honda, VW/Audi, Nissan, Chrysler, Subaru, Volvo, Jaguar, and Land Rover — the most complete brand coverage in the RLink lineup.
- Three Diagnostic Standards — J2534, D-PDU, and RP1210: Broader protocol support than any other RLink device, plus DoIP, CAN-FD, J1850, and K-Line for comprehensive coverage of both current and emerging vehicle communication standards.
- Built-In 5-Inch Touchscreen with Android 11: Navigate OEM guides, manage drivers, and monitor diagnostics directly on the device — no laptop required for every step.
- Wired, Wi-Fi, or Ethernet Connectivity: Connect however suits your workflow — USB, 802.11 Wi-Fi, or RJ45 Ethernet for high-speed DoIP diagnostics on modern vehicles.
- Rechargeable Battery and Wide Voltage Range: The built-in 5,050mAh battery and 6–36V input range keep the device running reliably across virtually any vehicle or shop environment.
- Everything Included — Ready to Work Out of the Box: Comes with an OBD2 cable, network cable, USB cable, 12V power adapter, and carrying case — no extra purchases needed to get started.
Product Description
The TOPDON RLink Lite is the most capable tool in the RLink family — a full-featured OEM diagnostic and programming device that covers more brands, more protocols, and more situations than any other pass-thru in the lineup. With a built-in 5-inch touchscreen, Wi-Fi connectivity, and a rechargeable battery, it's as comfortable working standalone in the bay as it is connected to a laptop.
The Broadest Brand Coverage in the RLink Lineup
The RLink Lite supports all 16 major OEM software platforms, including Mercedes-Benz, BMW, Porsche (PIWIS-3), Ford, GM, Toyota, Honda, Chrysler, Volkswagen, Audi, Nissan, Subaru, Volvo, Jaguar, and Land Rover. Whether your shop handles domestic trucks in the morning and European imports in the afternoon, the RLink Lite keeps up without requiring a shelf full of brand-specific devices.
*OE diagnostic software is not included and requires a separate subscription purchased through the vehicle manufacturer or software provider.
Three Major Diagnostic Standards in One Device
Most pass-thru tools support one or two diagnostic protocols. The RLink Lite supports three industry standards — J2534, D-PDU, and RP1210 — along with a full suite of communication protocols including DoIP, CAN, CAN-FD, J1850, and K-Line. That combination gives it the flexibility to work with the widest possible range of OEM software platforms right now, while remaining ready for the newer standards showing up in late-model vehicles.
*Security-related functions in J2534 software are controlled by NASTF credentials as specified by each vehicle OEM. VAG and Nissan relay key status/position functions are supported.
A Built-In Screen Changes How You Work
Unlike the X3 and X7 — which rely entirely on a connected laptop — the RLink Lite has its own 5-inch LCD touchscreen running Android 11. That means you can navigate OEM operation guides, manage drivers, and monitor diagnostics directly on the device, without needing your laptop screen in front of you at every step. It's a meaningful advantage in tight spaces or when moving between vehicles.
Wired, Wireless, or Networked — Your Choice
The RLink Lite connects to your laptop or network however is most convenient. Use the USB connection for a direct wired link, connect over Wi-Fi for wireless freedom, or plug into an Ethernet network via the built-in RJ45 port for fast, stable DoIP diagnostics on vehicles that require it. High-speed DoIP support means faster data transmission during programming jobs — less waiting, more working.
Driver Management Made Simple
The RLink Platform handles everything driver-related with a single click — downloading, installing, updating, and removing drivers for any of the supported OEM platforms. Built-in OEM operation guides walk you through procedures step by step, and since the device can update directly over Wi-Fi, you're never dependent on a laptop to stay current.
Built for the Long Haul
With a 5,050mAh rechargeable battery, a wide input voltage range of 6–36V, and a rugged carrying case included in the box, the RLink Lite is built to handle the demands of a busy professional shop. Everything you need is ready to go right out of the box — OBD2 cable, network cable, USB cable, power adapter, and case all included.
How is the RLink Lite different from the RLink X3 and RLink X7?
The RLink Lite is the most fully equipped tool in the RLink lineup. The X3 is purpose-built for GM, Ford, and Chrysler. The X7 expands that to 18 brands as a compact dongle. The RLink Lite goes furthest — covering all 16 OEM platforms (including Mercedes-Benz, BMW, and Porsche, which the X7 does not support), adding a built-in touchscreen, Wi-Fi, Ethernet, a rechargeable battery, and support for a third diagnostic standard (RP1210). If your shop works across a broad mix of domestic and import vehicles and you want the most versatile single device, the Lite is the right choice.
Does the RLink Lite need to be connected to a laptop to work?
Not necessarily. The built-in 5-inch Android touchscreen lets you manage drivers, access OEM operation guides, and work through diagnostic procedures directly on the device. That said, full OEM diagnostic software still runs on a connected computer — the touchscreen adds flexibility and on-device guidance, but it doesn't replace the laptop for software execution.
What connectivity options does the RLink Lite support?
The RLink Lite offers three ways to connect to your laptop or network: a wired USB connection, built-in 802.11 Wi-Fi, and a physical RJ45 Ethernet port. The Ethernet port is particularly useful for DoIP diagnostics, which are required by some newer vehicles for high-speed programming tasks.
Does it include the OE software I need?
No — OE diagnostic software is not included and must be purchased separately through the vehicle manufacturer or software provider. The RLink Lite provides the hardware interface and driver management that makes your laptop and OE software communicate with the vehicle. Refer to TOPDON's software compatibility list for options and pricing.
What's included in the box?
The RLink Lite ships with everything you need to get started: the device itself, a 6.5-foot OBD2 diagnostic cable, a 16-foot network cable, a 5-foot USB 2.0 cable, a 12V DC power adapter, a quick start guide, and a carrying case.
