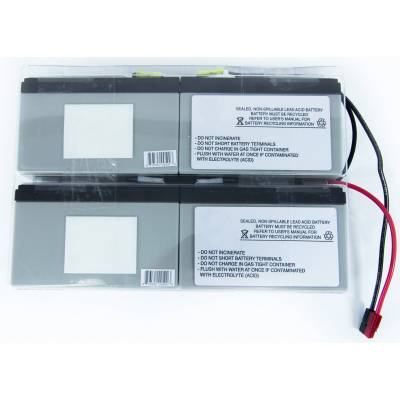

Product Specifications for RBC94-2U Replacement Battery Pack for Eaton Tripp Lite UPS Systems
| BM Part #: | RBC94-2U |
|---|---|
| Voltage: | 12 Volt |
| Capacity: | (4) 9Ah |
| Type: | Sealed Lead Acid |
| Length: | 8.38" |
| Width: | 12" |
| Height: | 2.75" |
| Shipping Weight: | 23.00Lbs |
| Warranty: | 2 Year |
- Direct Replacement: Designed specifically to replace the Eaton Tripp Lite RBC94-2U battery cartridge, restoring your UPS to full runtime performance without any guesswork.
- Four-Battery Configuration: Includes four pre-assembled 12V 9Ah sealed lead acid batteries wired together for a 48V DC output — comes ready to install right out of the box.
- Plug-and-Play Installation: No tools or electrical experience needed. Pre-wired and pre-assembled so you can swap the old pack and be back up and running in minutes.
- Maintenance-Free Design: Sealed, leak-proof construction means no watering, no venting requirements, and no ongoing upkeep — just reliable power when you need it.
- Wide UPS Compatibility: Works with a broad range of Eaton Tripp Lite SmartPro and SmartOnline 2U rackmount UPS systems from 1500VA to 3000VA, including SMART, SU, SMX, and SM series models.
- 2-Year Warranty: Backed by an 2-year warranty for added confidence and peace of mind in your purchase.
Product Description
Stop Downtime Before It Starts
When the batteries in your UPS wear out, everything your UPS protects is at risk — servers, network equipment, workstations, and the critical data they hold. The RBC94-2U replacement battery pack from Battery Mart gives you a fast, straightforward path to getting your Eaton Tripp Lite UPS back to full strength. No waiting for a technician, no complicated wiring — just a fresh set of batteries and a few minutes of your time.
Built for Your Eaton Tripp Lite UPS
This battery pack is engineered as a direct replacement for the original Eaton Tripp Lite RBC94-2U cartridge. It's compatible with a wide range of 2U rackmount SmartPro and SmartOnline UPS systems, including popular models in the SMART, SU, SMX, and SM series ranging from 1500VA to 3000VA. Whether you're running a small server closet or a busy data center rack, this pack is built to slot right in.
Four Batteries, One Ready-to-Install Pack
Inside the cartridge, you'll find four 12V 9Ah sealed lead acid batteries pre-assembled and pre-wired into a single 48V DC unit. There's no need to handle individual batteries or figure out how to connect them — everything arrives as one complete, plug-and-play assembly. Just slide it in, connect the lead, and your UPS is back in business.
Sealed, Safe, and Maintenance-Free
These are sealed lead acid batteries, which means they're completely maintenance-free. There's no need to check fluid levels or worry about spills or fumes. The leak-proof design is safe for use in enclosed rack environments and operates reliably across a wide temperature range, making it well-suited for server rooms and IT closets where conditions can vary.
Compact 2U Footprint
Measuring just 8.38" long x 12" wide x 2.75" tall, this battery pack is sized to fit neatly into the standard 2U rack space used by compatible Eaton Tripp Lite UPS systems. The shipping weight is 23 lbs, so be prepared for a solid, dense package — that's the weight of four quality lead acid batteries working together to protect your equipment.
Backed by an 2-Year Warranty
Your purchase is covered by an 2-year warranty giving you confidence that you're investing in a quality product built to perform. If something isn't right, you're protected.
Frequently Asked Questions
What UPS models is the RBC94-2U compatible with?
This battery pack is compatible with a wide range of Eaton Tripp Lite 2U rackmount UPS systems, including models in the SmartPro (SMART) and SmartOnline (SU, SMX, SM) series. Common compatible models include the SMART1500CRMXL, SMART2200RM2U, SMART2200RMXL2U, SMART3000RM2U, SU1500RTXL2UA, SU2200RTXL2UA, SMX2200XLRT2U, SMX3000XLRT2U, and many more. A full cross-reference list is available on the product page.
How many batteries are included, and what are the specs?
The RBC94-2U includes four 12V 9Ah sealed lead acid batteries, pre-assembled into a single cartridge that delivers 48V DC output. This matches the original factory configuration for compatible Eaton Tripp Lite UPS systems.
Is this a plug-and-play replacement?
Yes. The battery pack arrives fully assembled and pre-wired, so no tools or electrical knowledge are required. Simply remove the old cartridge from your UPS, slide in the new pack, connect the lead, and you're done. Most installs take just a few minutes.
Will using a third-party replacement battery void my UPS warranty?
In most cases, no — and federal law backs you up on this. Under the Magnuson-Moss Warranty Act, a manufacturer cannot legally void your warranty simply because you used a third-party replacement part, unless they can demonstrate that the replacement part itself caused the damage or failure. Routine battery replacement with a compatible third-party pack like this one is considered normal maintenance and should not affect your UPS warranty coverage. If you have specific concerns, we recommend reviewing your UPS warranty terms or contacting Eaton Tripp Lite directly.
Do I need to do any maintenance on these batteries?
No maintenance is needed. The sealed lead acid design is completely maintenance-free — no checking fluid levels, no venting required, and no risk of spillage. Once installed, the batteries charge automatically through your UPS.
What are the dimensions and weight of this battery pack?
The RBC94-2U measures 8.38" long x 12" wide x 2.75" tall and weighs approximately 23 lbs. It is designed to fit the standard 2U rack space in compatible Eaton Tripp Lite UPS systems.
What warranty does this battery pack come with?
This battery pack is backed by an 2-year warranty covering defects in materials and workmanship.
Cross Reference & Compatibility
- APC RBC94-2U
This battery can be used in these models:
- APC SM2200RMNAFTA
- APC SM2200RMXL2UP
- APC SM2200RMXL2UPN
- APC SM2200RMXL2UTAA
- APC SM3000RM2UNTAA
- APC SM3000RM2UTAA
- APC SM3000RMNAFTA
- APC SMX2200RT2UTAA
- APC SMX2200XLRT2U
- APC SMX2200XLRT2UN
- APC SMX3000XLRT2U
- Tripp Lite HTR10-2U
- Tripp Lite HTR15-2U
- Tripp Lite SMART1500CRMXL
- Tripp Lite SMART2000RMXL2U
- Tripp Lite SMART2200RM2U
- Tripp Lite SMART2200RM2UN
- Tripp Lite SMART2200RMXL2U
- Tripp Lite SMART2200RMXLN
- Tripp Lite SMART2600RM2U
- Tripp Lite SMART3000RM2U
- Tripp Lite SMART3000RM2UN
- Tripp Lite SU1500RMNAFTA
- Tripp Lite SU1500RTXL2Ua
- Tripp Lite SU1500RTXL2UN
- Tripp Lite SU1500RTXLCD2U
- Tripp Lite SU1500RTXLCDN
- Tripp Lite SU1500RTXLCDTAA
- Tripp Lite SU2000RTXLCD2U
- Tripp Lite SU2200RTXL2Ual
- Tripp Lite SU2200RTXL2UN
- Tripp Lite SU2200RTXLCDN
- Tripp Lite SU2200RTXLCDTAA
- Tripp Lite SUINT1500RTXL2UA
- Tripp Lite SUINT2200RTXL2UA
