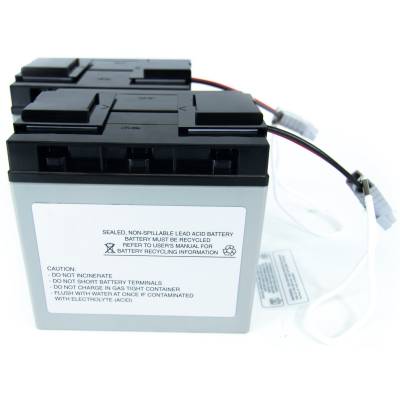

RBC11 Replacement Battery for APC

Product Specifications for RBC11 Replacement Battery for APC

Product Description

Frequently Asked Questions

Is this battery as good as the original APC RBC11?

Yes. This battery uses the same sealed lead acid chemistry, voltage, and capacity as the original APC RBC11. It's manufactured by WSP to the same specifications and will restore your UPS to full runtime capacity. The main difference is price — third-party replacement batteries cost significantly less than APC's branded cartridges while delivering equivalent performance. We back this with an 2-year warranty.

How do I know if my UPS uses an RBC11 battery?

Check your UPS model number against the compatibility list above. If your model is listed, it uses the RBC11. You can also open your UPS battery compartment and look at the existing battery — if it's marked "RBC11" or measures approximately 7.20" x 5.60" x 6.80", this replacement will fit. When in doubt, take a photo of your current battery (including any labels) and contact us for verification before ordering.

Why is this battery 48V instead of 12V or 24V?

The RBC11 is configured as a 48V battery pack, which is achieved by wiring four 12V batteries in series inside a single housing. This higher voltage is required by 1400VA, 2200VA, and 3000VA Smart-UPS models to deliver the necessary power output for servers and enterprise equipment. The battery arrives pre-configured as a 48V unit, so you don't need to worry about wiring multiple batteries together — it's a direct replacement.

How much runtime will I get with this battery?

Runtime depends on the load connected to your UPS. A fully charged 18Ah battery in a 2200VA UPS powering a server and network switch (approximately 800-1000W load) typically provides 10-20 minutes of backup time — enough for a graceful shutdown or to ride through brief power interruptions. Lighter loads (networking equipment only) can run for 30-60+ minutes. Heavier loads (multiple servers, storage arrays) will drain the battery faster. Check your UPS manual or APC's runtime calculator on their website for charts specific to your model and load scenarios.

Can I install this battery myself, or do I need a technician?

Technically, you can install it yourself if you're comfortable working with heavy equipment (49 lbs) and basic electrical connections. However, professional installation is recommended for several reasons: the weight requires proper lifting technique or two people, rack-mount units may need to be stabilized during battery replacement, and improper installation can damage the UPS or void warranties. If you have IT staff experienced with UPS maintenance, they can handle it. If not, consider having a technician perform the replacement, especially for mission-critical systems.

Will this void my UPS warranty?

No. In the United States, the Magnuson-Moss Warranty Act prevents manufacturers from voiding warranties simply because you used a third-party replacement part. Using a compatible replacement battery will not void your APC UPS warranty. However, if you have an active warranty or service contract on your UPS and it's experiencing battery issues, contact APC first — they may replace the battery under warranty at no charge, especially for enterprise support contracts.

How long will this replacement battery last?

Under typical conditions (moderate room temperature, occasional discharge cycles), sealed lead acid UPS batteries last 3-5 years. Factors that shorten battery life include high temperatures (above 77°F/25°C in server rooms), frequent deep discharges, and letting the battery sit uncharged for extended periods. To maximize lifespan, keep your UPS in a cool, well-ventilated area with proper server room climate control, and ensure it remains plugged in continuously so the battery stays charged.

Do I need to charge the battery before installing it?

The battery ships with a partial charge but should be fully charged before relying on it for backup power. Install it in your UPS, plug in the UPS, and let it charge for 12-24 hours before using it for battery backup. Due to the large capacity (48V 18Ah), initial charging takes significantly longer than smaller UPS batteries. The UPS will charge the battery automatically once connected. Some Smart-UPS models may beep or show warnings until the battery is sufficiently charged and passes the self-test.

Can I recycle my old UPS battery?

Yes, and you should. Lead-acid batteries are highly recyclable and should never go in household trash. Most battery retailers (including auto parts stores, hardware stores, and battery specialty shops) accept used SLA batteries for recycling, often at no charge. Due to the weight (49 lbs), you may want to contact commercial battery recyclers or industrial waste disposal companies in your area. Some UPS service providers and data center equipment vendors also offer battery recycling programs.

What if the replacement battery doesn't fit or work?

If you've verified your model number is on the compatibility list and the battery doesn't fit or function properly, contact us immediately. We'll work with you to resolve the issue, whether that means sending a replacement or processing a return. Common issues include incorrect model identification (some APC models look similar but use different battery sizes) or receiving a defective battery, both of which we can address quickly. For large batteries like the RBC11, return shipping can be expensive, so we strongly recommend double-checking compatibility before ordering.

Cross Reference & Compatibility

This battery can be used in these models:
