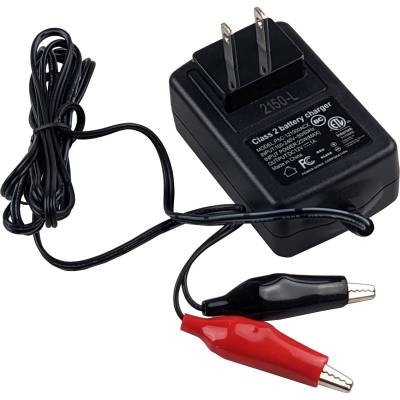

Product Specifications for Power Sonic PSC-121000ACX 12 Volt, 1 Amp Battery Charger
| BM Part #: | 121000ACX |
|---|---|
| Voltage: | 12 Volt |
| Terminals: | NEMA-A/ALGTR |
| Charging Rate: | 1 Amp |
| Charging Battery Capacity: | 5 - 12 Ah |
| Length: | 3.15" |
| Width: | 2.24" |
| Height: | 1.97" |
| Shipping Weight: | 0.22Lbs (3.52 oz) |
| Warranty: | 1 Year |
| Datasheet: | Download |
- Designed for SLA / VRLA batteries.
- Universal input voltage range: 100VAC - 240VAC.
- Automatic, current sensing dual-rate charging for efficient, care-free, and safe operation.
- LED indicators keep you updated on the charging status.
- DOE, CE, FCC compliant.
- ETL approved.
Product Description
The PSC-121000ACX is part of our ACX series of sealed lead acid (VRLA) switch-mode battery chargers. The ACX series chargers are switching type chargers which operate without the use of transformers. I.C�s control and regulate current and voltage and automatically switch from the higher fast charger voltage to the lower float voltage when batteries are very close to be fully charged. The 12V 1000mA plug-in battery charger is ideal for cyclic applications where recharge time is critical and timely charge termination cannot be relied on.
These chargers ensure optimum battery performance and service life for Power Sonic batteries. If you need help finding the right charger for your battery please check the battery technical specification sheet for the recommended charger or contact us for help.
