Free ShippingProduct Specifications for Odyssey ODS-AGM470FTT (PC1800-FT) 12V 214Ah AGM Battery
| BM Part #: | PC1800-FT |
|---|---|
| Brand: | Odyssey |
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 1300 CCA |
| Capacity: | 214 Ah |
| Type: | AGM |
| Length: | 22.75" |
| Width: | 4.9" |
| Height: | 12.44" |
| Shipping Weight: | 143.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
Additional Specs:
- 1300 CCA, 1450 MCA, 1600 HCA
- 1800 Pulse Cranking Amps for 5 Seconds
- 475 Minute Reserve Capacity
- 3/8" Stud Terminals
- 3.3 mOhms Internal Resistance
- 80 in-lbs Torque
- 3800A short circuit current
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- More Specs: (Adobe PDF)
Odyssey trademark is the property of Enersys and affiliates.
- Dual-purpose power: Delivers both massive starting power (1800 PHCA, 1300 CCA) and deep cycling capability.
- Extended service life: Designed for 3–10 years of reliable use.
- Long cycle life: Up to 400 cycles at 80% depth of discharge for long-term durability.
- Fast recharge: Recovers to 100% in as little as 4–6 hours.
- High reserve capacity: 214Ah, with 475 minutes of reserve power.
- Extreme temperature performance: Operates from -40°F to 113°F.
- Vibration & shock resistance: Rugged design prevents premature failure.
- Maintenance-free AGM design: Non-spillable, no water needed, DOT/IMDG/ICAO approved for safe transport.
- Certified quality: Manufactured under ISO 9001 & ISO 14001 standards.
- Recommended charger: Pair with the ODYSSEY OBC-25A for best performance.
Product Description

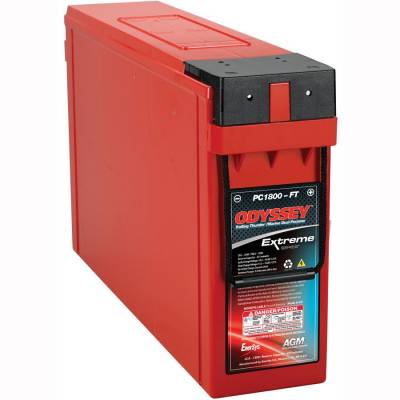

The Odyssey ODS-AGM470FTT, formerly known as the PC1800-FT, is a premium 12V 214Ah AGM battery built for heavy-duty performance. Using advanced Thin Plate Pure Lead (TPPL) technology, it delivers both massive cranking power and deep cycle endurance, making it ideal for marine, RV, commercial, and backup power applications. Every order ships free from Battery Mart.
With 1800 pulse hot cranking amps (PHCA) and 214 amp-hours of capacity, the ODS-AGM470FTT offers the burst of starting power you need plus long-lasting reserve energy for trolling motors, onboard electronics, or auxiliary systems. It provides up to 3 times longer service life and 70% longer cycle life than conventional marine and industrial batteries, with as many as 400 deep cycles at 80% depth of discharge.
This battery is completely maintenance-free thanks to its sealed Absorbed Glass Mat (AGM) design. It is non-spillable, vibration-resistant, and classified as non-hazardous for transport by DOT, IMDG, and ICAO standards. That means it can be installed safely in almost any position (except inverted) and shipped with no special handling concerns.
Engineered for demanding environments, the Odyssey PC1800-FT operates in extreme conditions from -40°F to +113°F, making it a reliable power source for both recreational and industrial use. Its rugged design protects against vibration and shock, two of the leading causes of premature battery failure.
For maximum performance and battery life, we recommend pairing this model with the ODYSSEY OBC-25A Charger, designed specifically to meet the charging requirements of Odyssey’s TPPL AGM batteries.
Specifications
- MPN: ODS-AGM470FTT (formerly PC1800-FT)
- Voltage: 12V
- Capacity (20Hr): 214 Ah
- Capacity (10Hr): 190 Ah
- Pulse Hot Cranking Amps (PHCA): 1800A (5 sec)
- Cold Cranking Amps (CCA): 1300A
- HCA: 1600A
- MCA: 1450A
- Reserve Capacity: 475 minutes
- Internal Resistance: 3.3 mΩ
- Short Circuit Current: 3800A
- Recommended Min. Charge Current: 19A
- Charge Voltage (Cyclic): 14.4 – 14.8V @ 25°C
- Float Voltage: 13.5 – 13.8V @ 25°C
- Operating Temperature: -40°F to +113°F (-40°C to +45°C)
- Optimum Storage Temperature: 68°F (20°C)
- Storage Life: Up to 2 years at 77°F before recharge
- Terminal Type: 3/8-16" front stud
- Torque Spec: 80 in-lbs (9.0 Nm max)
- Length: 22.9 in (582 mm)
- Width: 4.9 in (124 mm)
- Height: 12.5 in (318 mm)
- Weight: 132 lbs (59.9 kg)
- Certifications: ISO 9001 & ISO 14001
- DOT/IMDG/ICAO: Approved non-spillable, non-hazardous transport
- UPC: 635241140859
Frequently Asked Questions (FAQ)
Q: Is the Odyssey ODS-AGM470FTT a deep cycle battery?
A: Yes. The ODS-AGM470FTT is a dual-purpose battery, meaning it provides both strong starting power and deep cycle performance. It can deliver up to 400 cycles at 80% depth of discharge.
Q: What charger should I use with this battery?
A: We recommend the ODYSSEY OBC-25A, which is engineered to properly charge Odyssey TPPL AGM batteries.
Q: How long does the Odyssey ODS-AGM470FTT battery last?
A: With proper care, it offers a service life of 3–10 years, significantly longer than conventional deep cycle or marine batteries.
Q: Does this battery ship free?
A: Yes. All Odyssey ODS-AGM470FTT batteries from Battery Mart include free shipping within the continental U.S..
Q: Can this battery be shipped safely?
A: Yes. The Odyssey ODS-AGM470FTT is classified as non-spillable and approved as non-hazardous cargo for ground, sea, and air transport.
Q: Is the Odyssey PC1800-FT the same as the ODS-AGM470FTT?
A: Yes. The official part number is now ODS-AGM470FTT, but it is the same battery that was previously sold as the Odyssey PC1800-FT.
