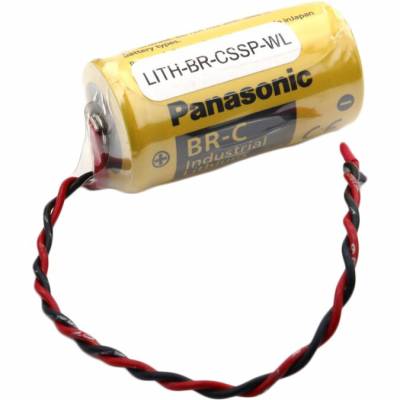

Product Specifications for Panasonic BR-CSSP 3V C Size Lithium Battery with Wire Leads
| BM Part #: | BR-CSSP-WL |
|---|---|
| Voltage: | 3 Volt |
| Capacity: | 5000 mAh |
| Energy Capacity: | 15 Wh |
| Type: | Lithium Carbon Monofloride (BR) |
| Battery Size: | C |
| Length: | 1.97" |
| Diameter: | 1.03" |
| Shipping Weight: | 0.25Lbs (4 oz) |
| Warranty: | 60 Day Return |
- Direct Replacement: Compatible with Panasonic BR-CSSP and BR-C batteries for a drop-in fit
- 6-Inch Wire Leads: Pre-attached leads make installation easy, even in tight or hard-to-reach spaces
- 5,000mAh Capacity: High capacity supports long-running applications without frequent replacements
- Up to 10-Year Shelf Life: Store with confidence — this battery holds its charge for years before use
- Extreme Temperature Rating: Operates reliably from -76°F to 185°F for demanding indoor and outdoor environments
- Stable Voltage Output: Maintains consistent 3V throughout its full discharge cycle, so your equipment always gets clean power
Product Description
When critical equipment depends on consistent power, you need a battery that won't let you down. This 3V C size lithium battery is a direct replacement for the Panasonic BR-CSSP and BR-C, built specifically for industrial use. It ships ready to install with 6-inch wire leads already attached, so swapping it in is quick and straightforward — even in tight or hard-to-reach spaces.
Steady Power for the Long Haul
This battery uses Lithium Carbon Monofluoride (BR) chemistry, a technology well-suited for equipment that needs to stay powered for extended periods without attention. It delivers a stable 3 volts from start to finish — no gradual drop-off as it drains. That kind of consistent output matters in applications where even small voltage fluctuations can cause problems.
With a 5,000mAh capacity and a shelf life of up to 10 years, this battery is a great fit for:
- Programmable Logic Controllers (PLCs)
- Utility and energy meters
- Memory backup systems
- Industrial monitoring equipment
Performs Where Other Batteries Fail
Extreme temperatures are no problem here. This battery operates reliably from -76°F up to 185°F, making it a dependable choice for outdoor enclosures, unheated facilities, and environments where the thermometer rarely stays in a comfortable range. Consumer-grade batteries often struggle in these conditions — this one is built for them.
Wire Leads That Simplify Installation
The included 6-inch wire leads are a practical advantage. Instead of relying on contact clips that may not align with your device, the leads connect directly to your equipment's terminals. This is especially useful when working in cramped control panels or devices with non-standard battery compartments — no adapters, no hassle.
Panasonic Cells, Direct Fit
This replacement uses genuine Panasonic BR cells and is built to match the original BR-CSSP and BR-C in voltage, capacity, and chemistry. If your equipment calls for either of those part numbers, this battery fits and performs the same way — so you can make the swap with confidence.
Frequently Asked Questions
What batteries does this replace?
A: This battery is a direct replacement for the Panasonic BR-CSSP and BR-C. If your equipment lists either of those part numbers, this cell is the correct fit.
What kind of equipment is this battery used in?
A: It's commonly used in PLCs (Programmable Logic Controllers), utility meters, industrial memory backup systems, and other equipment that requires long-term, low-maintenance power.
What are the wire leads for?
A: The 6-inch wire leads allow you to connect the battery directly to your device's terminals. This is especially helpful when working in tight control panels or equipment where a standard battery clip won't reach or fit properly.
How long will this battery last in use?
A: Battery life depends on the equipment and how much power it draws, but this cell offers a 5,000mAh capacity and is designed for long-duration, low-drain applications. It also has a shelf life of up to 10 years, so unused stock stays fresh.
