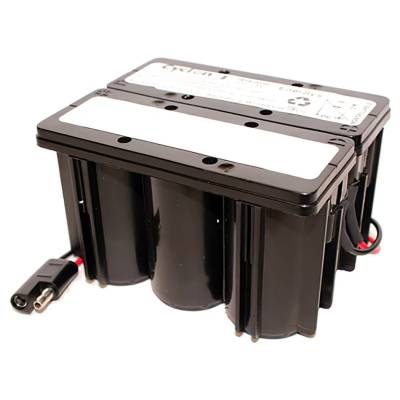

Product Specifications for Enersys Hawker Cyclon 0819-0024 Battery with Plug Harness
| BM Part #: | OSA382 |
|---|---|
| Voltage: | 12 Volt |
| Capacity: | 2.5 Ah |
| Type: | Lead Acid |
| Length: | 4.48" |
| Width: | 3.52" |
| Height: | 2.77" |
| Shipping Weight: | 2.40Lbs |
| Warranty: | 60 Day Return |
- Popular in Lawn Boy / Toro lawn mowers.
- Direct-Fit Plug Harness: Comes with the connector already attached for a clean, plug-in installation with no modifications required.
- Pure Lead AGM Construction: Cylindrical pure lead-tin cells in an absorbed glass mat design deliver superior power density and longer cycle life compared to standard SLA batteries.
- Completely Maintenance-Free: Sealed, non-spillable design requires no watering, checking, or upkeep — just install and forget it.
- Flexible Mounting: Can be installed in virtually any orientation without affecting performance or safety.
- Long Service Life: Rated for up to 2,000 charge/discharge cycles, making it a cost-effective replacement over the long haul.
- UL Recognized: Meets UL 1989 standards, so you can install with confidence in applications where compliance matters.
Product Description
The EnerSys Hawker Cyclon 0819-0024 is a 12-volt, 2.5Ah sealed lead acid battery assembly built on EnerSys's trusted Cyclon pure lead AGM platform. If you're looking for a direct replacement with the right connector already attached, this is it. The 0819-0024 comes factory-assembled with a plug harness, so installation is straightforward — no adapters, no guesswork.
Pure Lead AGM Technology You Can Count On
The Cyclon line has been around since 1973 and has earned a reputation for outlasting conventional sealed lead acid batteries. The secret is in the construction: pure lead-tin cylindrical cells wrapped in absorbed glass mat (AGM) technology. This combination delivers better power density, faster recharge capability, and significantly more charge/discharge cycles than standard SLA designs. Fewer replacements means less hassle over time.
The 0819-0024 is built in EnerSys's signature 2x3 monobloc configuration — six D-size cells arranged in two rows of three, all housed in a compact, rigid enclosure. This layout keeps the footprint small while maintaining the full 12-volt output your equipment needs.
Maintenance-Free and Ready to Work
One of the biggest advantages of the Cyclon design is that it requires zero maintenance. The sealed construction means there's nothing to check, fill, or adjust. It's also non-spillable, so orientation isn't a concern — this battery can be mounted in virtually any position without issue. A built-in safety valve handles any pressure fluctuations internally, keeping everything safe and self-contained.
Specifications at a Glance
- Voltage: 12V
- Capacity: 2.5Ah
- Chemistry: Sealed Lead Acid (Pure Lead AGM)
- Connector: Plug Harness
- Dimensions: 4.48" L x 3.52" W x 2.77" H
- Weight: 2.4 lbs
This battery is a UL Recognized component and meets the safety and performance standards you'd expect from a professional-grade EnerSys assembly. Whether you're restoring a piece of outdoor power equipment or stocking a replacement for future use, the 0819-0024 delivers the reliability the Cyclon name is known for.
Frequently Asked Questions
What equipment does the EnerSys Hawker Cyclon 0819-0024 fit?
This battery is a known replacement for Lawn-Boy and Toro lawn equipment, among other applications. The plug harness connector is what sets this specific assembly apart from other Cyclon 12V 2.5Ah configurations. If you're unsure whether it fits your equipment, compare the connector type and dimensions (4.48" x 3.52" x 2.77") against your current battery before ordering.
What does the plug harness connector mean?
It means the battery ships with a wiring harness already attached, designed to plug directly into your equipment's existing connector. This makes replacement quick and clean — no loose terminals to connect or tools required for the hookup itself.
How is this different from other EnerSys Cyclon 12V 2.5Ah batteries?
The Cyclon line includes several 12V 2.5Ah assemblies that share the same 2x3 monobloc cell configuration but differ in their connector type. The 0819-0024 specifically features a plug harness, while other assemblies in the same family use blade-style terminals or other connection styles. Always match the part number and connector type to your application.
Is this battery safe to ship and store?
Yes. The 0819-0024 is sealed and non-spillable, which qualifies it for standard shipping. EnerSys recommends recharging within 24 months of the manufacture date if the battery has been in storage. Once in use, normal charge cycles will keep it in good working condition.
Does this battery require any special charger?
The 0819-0024 is designed to work with standard 12-volt sealed lead acid chargers. For best results and longest life, use a charger matched to AGM or sealed lead acid chemistry and avoid overcharging. If your equipment has an onboard charging system, it's typically already compatible.
Cross Reference & Compatibility
- Rotary 31-8593
This battery can be used in these models:
- Toro Lawn Mower 55-7520
- Toro Lawn Mower 683637
- Toro Lawn Mower 684128
- Toro Lawn Mower 684708
- Toro Lawn Mower S12ESR
- Wheel Horse Lawn Mowers
