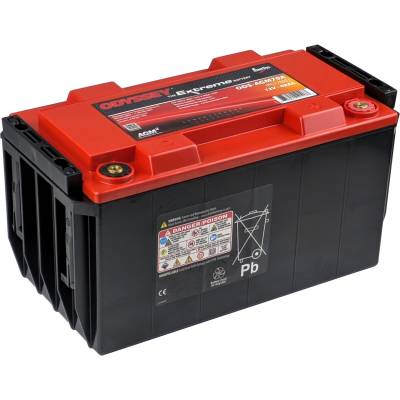

MADE IN THE USA!Product Specifications for Odyssey ODS-AGM70 Extreme Powersport Battery (PC1700)
| BM Part #: | PC1700 |
|---|---|
| Brand: | Odyssey |
| Made In: | U.S.A. |
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 810 CCA |
| Capacity: | 68 Ah |
| Type: | AGM |
| Length: | 13.02" |
| Width: | 6.62" |
| Height: | 6.93" |
| Shipping Weight: | 56.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
Additional Specs:
- 810 CCA, 1175 MCA, 1325 HCA
- 1550 PHCA (Cranking Amps for 5 Seconds)
- 142 Minute Reserve Capacity
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- Stinger Power2 SP1700 equivalent
- Replaces 0771-2021
- More Specs: (Adobe PDF)
- Catalogue number 0765-2021
Odyssey trademark is the property of Enersys and affiliates.
- This item is not eligible for free shipping.
- Made in the USA. Why it matters:
- Superior craftsmanship; rigorously tested; high-quality parts.
- Better warranty
2 Years:- Auxiliary Power Unit (APU)
- Non-engine Start Cycling Applications.
- PowerSports Applications.
- Commercial, Industrial, Marine and Automotive Applications
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system. - Improved safety
US Department of Transportation classified it as a 'non-spillable' battery. No acid spills, no escaping gases.
Product Description
Why choose the Odyssey ODS-AGM70 Extreme Powersport Battery (PC1700)?
(internal threaded brass terminals with M6 SS bolts)
Whether for everyday or emergency use, today's vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power, up to 400 cycles at 80% depth of discharge. That’s twice the overall power and three times the life of conventional batteries.
The ODYSSEY Extreme PC1700 battery delivers the massive starting power, rapid recovery, and amazing deep cycling capability that today's vehicles demand.
Frequently Asked Questions
Does the Odyssey ODS-AGM70 need regular maintenance?
A: The PC1700 is a sealed AGM battery, so it does not require adding water like some traditional flooded batteries. However, it should still be kept properly charged, especially if the vehicle sits unused for long periods. Good charging and storage habits can help support better performance and longer battery life.
What is the difference between the ODS-AGM70 and the PC1700?
A: They are the same battery. The manufacturer, Enersys, simply updated the part number. If you need to replace your old PC1700, the Odyssey ODS-AGM70 is a direct replacement.
What applications can the Odyssey ODS-AGM70 battery be used for?
A: This battery is a high-performance AGM battery designed for powersports applications on land, sea, and snow. It is ideal for a variety of vehicles, including:
What type of charger should I use with the ODS-AGM70?
A: It is best to use a charger that is compatible with AGM batteries. The right charger helps keep the battery properly maintained without overcharging it. This is especially useful for vehicles that sit in storage, are used seasonally, or do not get driven often enough to keep the battery fully charged.
Can I install the PC1700 myself?
A: Many customers can install this battery themselves, but it depends on the vehicle and battery location. Before installing, make sure the vehicle is turned off, the cables are connected securely, and the battery is properly held in place. If you are unsure about fitment, terminal connections, or safe installation, it is best to have a professional install it.
