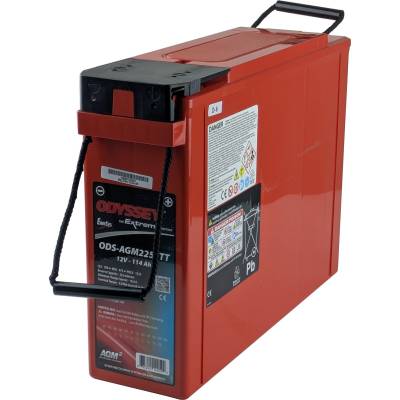

Product Specifications for Odyssey Extreme Series ODS-AGM225FTT (ODS-AGM220FT) Front Terminal Battery
| BM Part #: | ODS-AGM225FTT |
|---|---|
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 700 CCA |
| Capacity: | 114 Ah |
| Type: | AGM |
| Length: | 15.60" |
| Width: | 4.25" |
| Terminal Height: | 11.30" |
| Shipping Weight: | 71.90Lbs |
| Warranty: | 1 Year |
| Pulse (5 second) Hot Cranking Amps (PHCA): | 1125A |
| HCA: | 1000A |
| MCA: | 875A |
| Reserve Capacity Minutes: | 225 mins |
| Torque Spec in-lbs (Nm max): | 60 (6.8) |
| Internal Resistance (mΩ): | 5.6 mΩ |
- Dual-Purpose Performance: Provides massive starting power for engines and deep-cycle capacity for running electronics and accessories.
- Front Terminal Design: Allows for much easier access and installation in narrow or height-restricted compartments.
- Pure Lead Technology: Uses thin-plate pure lead to pack more power into the same space, outlasting standard AGM batteries by years.
- Maintenance-Free Operation: The sealed, non-spillable design means you never have to add water or worry about messy leaks.
- Extreme Vibration Resistance: Military-inspired construction protects the internal plates from the bumps and jars of rough water or bumpy roads.
- Massive Reserve Capacity: Offers 225 minutes of reserve power, ensuring your critical systems stay online even when the engine is off.
Product Description
Double the Power, Triple the Life
When you are out on the water or off the grid in your RV, the last thing you want to worry about is whether your battery can keep up. The Odyssey ODS-AGM225FTT is built like an athlete—it has the "sprinting" power to start heavy engines and the "marathon" endurance to run your electronics for hours on end. Because it uses 99% pure lead plates rather than the lead alloy found in standard batteries, it delivers twice the overall power and lasts up to three times longer than conventional options.
This "Front Terminal" design is specifically engineered for tight spaces. By placing the connections on the front rather than the top, it makes installation and maintenance much easier in cabinets or battery compartments where vertical clearance is limited. Whether you are using it for solar energy storage, telecom backup, or as a high-end marine battery, the ODS-AGM225FTT is designed to be the last battery you'll need to buy for a long time.
Built to Survive Extreme Conditions Standard batteries often fail because of vibration or temperature shifts. This Odyssey battery is housed in a rugged, non-spillable case that handles intense shock and vibration without losing a beat. It is also a true "fit and forget" component; since it is completely sealed, you never have to mess with adding water or cleaning up acid corrosion.
Key Benefits for Your Equipment:
- Fast Recovery: This battery recharges significantly faster than standard lead-acid models, so you spend less time plugged into a charger and more time enjoying your hobbies.
- Worry-Free Storage: With an incredible shelf life, this battery can sit for up to 2 years without a charge and still fire right up when you're ready to head out for the season.
- Flexible Mounting: The sealed design means you can mount it in almost any position (except upside down) without worrying about leaks or messes.
- Extreme Weather Ready: From freezing winter mornings to scorching summer afternoons, this battery is rated to perform in temperatures ranging from -40°F to 113°F.
Frequently Asked Questions
Does this battery replace the ODS-AGM220FT?
Yes, the ODS-AGM225FTT is the direct replacement for the older ODS-AGM220FT (and NorthStar SMS-AGM220) model. It offers the same fitment with updated performance standards.
What are the physical dimensions and weight?
This battery measures approximately 15.6 inches long, 4.25 inches wide, and 11.3 inches tall. It is a heavy-duty unit weighing in at 71.9 lbs.
Do I need a special charger for this battery?
To get the longest life out of your Odyssey battery, we recommend using a high-quality AGM-compatible charger. Because these batteries can handle a very fast charge, they perform best with chargers that can provide at least 10 amps.
Can I use this for my trolling motor?
Absolutely. Because it is a dual-purpose battery, it is excellent for trolling applications where you need consistent, deep-cycle power over a long period of time.
