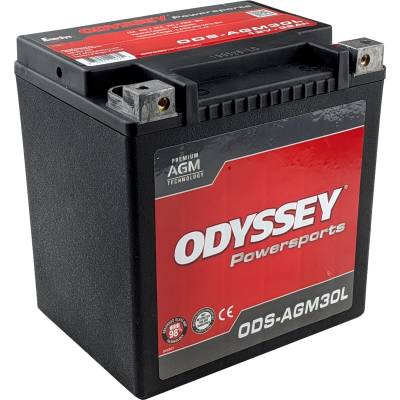

Free ShippingProduct Specifications for Odyssey ODS-AGM30L Extreme Battery
| BM Part #: | ODS-AGM30L |
|---|---|
| Brand: | Odyssey |
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 450 CCA |
| Capacity: | 32 Ah |
| Type: | AGM |
| Battery Size: | BTX30L |
| Length: | 6.6" |
| Width: | 4.9" |
| Height: | 6.9" |
| Shipping Weight: | 22.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
| PHCA | 850 Amp |
| MCA | 585 Amp |
| Reserve Capacity | 50 minutes |
| Terminal | M6 Receptacle |
Odyssey trademark is the property of Enersys and affiliates.
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high, stable voltage for longer periods of time. - Longer shelf life
This 12 volt 30 Ah battery can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. This 12-volt 30 Ah battery can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5-second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high-impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance-free
No need to add water, ever! Dry cell design with resealable venting system. - Improved safety
US Department of Transportation classified it as a 'non-spillable' battery. No acid spills, no escaping gases.
Product Description
Why Choose the Odyssey ODS-AGM30L Battery?
The Odyssey ODS-AGM30L Extreme battery is an AGM battery with Thin Plate Pure Lead (TPPL) technology that provides twice the overall power and up to three times the lifespan of standard conventional batteries. This advanced dual-purpose battery is designed for engine start and deep-cycle use for accessory-heavy setups. Perfect for riding on rough terrain, the ODS-AGM30L is built with rugged construction that can withstand high-impact shock and vibration. Wherever your next ride takes you, the Odyssey ODS-AGM30L can help get you there.
Frequently Asked Questions
What applications is the Odyssey ODS-AGM30L battery best suited for?
A: The ODS-AGM30L is designed for powersports and racing vehicles that require superior starting power and deep-cycle abilities, including:
- Motorcycles
- ATVs/UTVs
- Snowmobiles
- Personal Watercraft
- Performance Racing Engines
What charger should I use with the Odyssey ODS-AGM30L battery?
A: We recommend using a quality 12-volt smart charger that is compatible with AGM batteries. Because the ODS-AGM30L uses TPPL AGM technology, proper charging is important for maintaining its performance and service life.
What is the difference between the Odyssey ODS-AGM30L and the ODS-AGM28?
A: The ODS-AGM30L was designed as an upgrade to the ODS-AGM28. It provides greater power along with improved fitment for powersports applications. If you’re replacing an ODS-AGM28 battery, the ODS-AGM30L is worth considering.
What does TPPL (Thin Plate Pure Lead) technology do?
A: TPPL technology uses very thin plates made from high-quality lead. This allows more plates to fit inside the battery, creating more surface area for energy transfer. The result is strong starting power, efficient recharging, and reliable deep-cycle performance.
What does the "L" stand for in ODS-AGM30L?
A: In this battery model, the "L" refers to "left positive," which indicates the specific polarity orientation and placement of the positive terminal on the battery. When facing the front of the battery, the positive terminal will be located on the left side. Be sure to check your vehicle’s terminal layout before ordering to avoid stretching or crossing cables.
Cross Reference & Compatibility
Customer Reviews
Second Odyssey I have purchased. First one lasted 8 years in my HD Shovelhead Stroker which was difficult to turn over with stock battery. Just purchased one for my HD Dresser. It spins the engine over incredibly faster than a stock battery. Stock Battery was $150. Odyssey was $200. I am betting I will get twice the life for $50 more dollars plus more peace of mind.
This replaces my last Odyssey battery that lasted five years of great service. I had a very difficult time trying to decide between two Odyssey batteries, another one like the last or the new one I purchased. I called and talked to Andrew who was extremely helpful. I would highly recommend Battery Mart for your Harley replacement anytime.
My experimental aircraft is powered by a Lycoming IO-360 engine with a 10:1 compression ratio. It is difficult to crank.
I have used Odyssey batteries for some time - a PC680 at first, then a PC 625. They were both barely adequate when new and temperatures were not too cold. With a few years of age and colder temps, they would just barely turn the engine over.
I have just changed to the AGM30L Odyssey and it is amazing ! 400 CCA vs. the others at 220 CCA. I'll never go back - despite the 6# heavier weight !
I've Ben useing Odysseus batteries for about 25 year or more . I replace them around 5 or 6 years . never had one fail yet.
Ordered agm battery for my HD, shipping was fas and battery was packed well. Woild buy from again
Great customer service. My battery got lost with Fed Ex...n these folks sent me a battery in 2 days. And now I can ride my bike everyday. Can't ask for anything better. Great customer service! 🌟🌟🌟🌟🌟
Odyssey makes the best batteries that I have found, they are more money but you get what you pay for.
My factory battery died on me so I got this one and it spins the motor with ease and faster than the stock HD one ever did.
