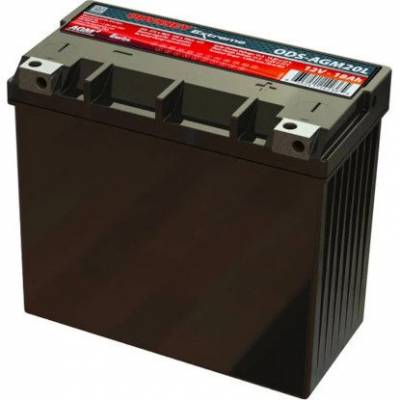

Odyssey ODS-AGM20L Extreme Battery
Item #: ODS-AGM20L |
Backordered: Available July 25th, 2026
(1) Read a Review / Write a Review
Specs
Product Specifications for Odyssey ODS-AGM20L Extreme Battery
Specifications:
| BM Part #: | ODS-AGM20L |
|---|---|
| Brand: | Odyssey |
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 275 CCA |
| Capacity: | 18 Ah |
| Type: | AGM |
| Battery Size: | BTX20L |
| Length: | 6.9" |
| Width: | 3.4" |
| Height: | 6.1" |
| Shipping Weight: | 14.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
| PHCA | 675 Amp |
| MCA | 350 Amp |
| Reserve Capacity | 24 minutes |
| Terminal | M6 Receptacle |
Odyssey trademark is the property of Enersys and affiliates.
Features:
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
This 12 volt 16 Ah battery can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. This 12 volt 16 Ah battery can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system. - Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
Description
Product Description
The Odyssey ODS-AGM20L Extreme battery is an AGM battery with Thin Plate Pure Lead (TPPL) technology. This advanced dual purpose battery is for engine start and deep cycle use.
Replaces
Cross Reference & Compatibility
The Odyssey ODS-AGM20L Extreme Battery has been cross-referenced to be compatible with or replace these OEM part numbers and models:
12N16-3BSENSOR
12V20L
18L-BS
20LBS
26012-0002
26012-0004
26012-0007
26012-0012
26012-0140
26012-1013
26012-1039
26012-1040
26012-1053
26012-1101
26012-1118
26012-1130
26012-1149
26012-1183
26012-1236
26012-1242
26012-1273
26012-1315
26012-1340
26012-1384
26012-1390
26012-3001
26012-3002
26012-3701
26012-3704
26012-3705
26012-3707
26012-3708
26012-3709
26012-3716
26012-3719
26012-3720
26012-3721
26012-3723
26012-3725
26012-3728
26012-3730
26012-501
26012-502
278000108-WP
278000242-WP
278000477-WP
278000712-WP
295500116-WP
296000295-SNOW
31500-MCA-003
31500-MCA-003AH
31500-MCA-R31AH
3306-301
4011496-OPT
4011496-STD
410301203-SNOW
410301203-WP
415129395-SNOW
415129898-SNOW
4SH-82100-22-00
4SH-82100-22-00-SNOW
515175560
515175560-SNOW
515175642
515175642-SNOW
515175643
515175759
515175759-SNOW
515175848
515177719
515177719-SNOW
515177720
515177720-SNOW
5FU-H2100-20-00
65989-90B
65989-97A
65989-97B
65989-97C
65989-97D
65989-97E
65989-98C
66000302
66000343
66000344
715900316
715900316-SNOW
AE20L
B2015
BDM170-00350
BRL-B2015
CB18L-A-FP
CTL 20HL BS
CTL20HL-BS
E04599
EB20-3
EB20H-3
EBX20HL-BS
EBX20L-BS
ES20LBS
ETX-20L
ETX-20L
FAYTX20
FAYTX20H
FAYTX20HL
FAYTX20HL-PW
FAYTX20L
FB16CL-B
GTX20LBS
GYZ20L
K26012-1013
K26012-1053
K26012-2160
K26012-2160A
K26012-2503
K26012-3003
K26012-3721
M320BS
M620BH
M720BH
ODS-AGM20L
SVR20L
TX20L
UTX20L-BS
WP20LBS
WPX20L-BS
WPX20L-LS
WPX20LBS(1)
XTA20HLBS
YB16-LB
YB16CL-B
YB18L-A
YB18L-A-TP
YIX20HL
YTR20-BS
YTX-20LBS-00-00
YTX-20LBS-00-00-SNOW
YTX20HILBS
YTX20HL
YTX20HL-BS
YTX20HL-BS-PW
YTX20HL-PW
YTX20L-BS
YTX20L-BS-SNOW
YTX20LBS
YUAM620BH-P
YUEM620BH
