Specs

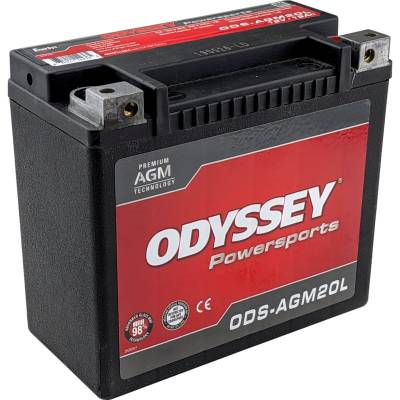

Product Specifications for Odyssey ODS-AGM20L Extreme Battery
Specifications:
BM Part #: | ODS-AGM20L |
---|---|
Voltage: | 12 Volt |
Capacity: | 18 Ah |
Type: | AGM |
Length: | 6.9" |
Width: | 3.4" |
Height: | 6.1" |
Cold Cranking Amps: | 275 CCA |
Shipping Weight: | 14.00Lbs |
Warranty: | 2 Year (Warranty Info) |
PHCA | 675 Amp |
MCA | 350 Amp |
Reserve Capacity | 24 minutes |
Terminal | M6 Receptacle |
Odyssey trademark is the property of Enersys and affiliates.
Features:
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
This 12 volt 16 Ah battery can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. This 12 volt 16 Ah battery can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system. - Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
Description
Product Description
The Odyssey ODS-AGM20L Extreme battery is an AGM battery with Thin Plate Pure Lead (TPPL) technology. This advanced dual purpose battery is for engine start and deep cycle use.
Replaces
Cross Reference
The Odyssey ODS-AGM20L Extreme Battery has been cross-referenced to be compatible with or replace these OEM part numbers and models:
12N16-3BSENSOR
12V20L
18L-BS
20LBS
26012-0002
26012-0004
26012-0007
26012-0012
26012-0140
26012-1013
26012-1039
26012-1040
26012-1053
26012-1101
26012-1118
26012-1130
26012-1149
26012-1183
26012-1236
26012-1242
26012-1273
26012-1315
26012-1340
26012-1384
26012-1390
26012-3001
26012-3002
26012-3701
26012-3704
26012-3705
26012-3707
26012-3708
26012-3709
26012-3716
26012-3719
26012-3720
26012-3721
26012-3723
26012-3725
26012-3728
26012-3730
26012-501
26012-502
278000108-WP
278000242-WP
278000477-WP
278000712-WP
295500116-WP
296000295-SNOW
31500-MCA-003
31500-MCA-003AH
31500-MCA-R31AH
3306-301
4011496-OPT
4011496-STD
410301203-SNOW
410301203-WP
415129395-SNOW
415129898-SNOW
4SH-82100-22-00
4SH-82100-22-00-SNOW
515175560
515175560-SNOW
515175642
515175642-SNOW
515175643
515175759
515175759-SNOW
515175848
515177719
515177719-SNOW
515177720
515177720-SNOW
5FU-H2100-20-00
65989-90B
65989-97A
65989-97B
65989-97C
65989-97D
65989-97E
65989-98C
66000302
66000343
66000344
715900316
715900316-SNOW
AE20L
B2015
BDM170-00350
BRL-B2015
CB18L-A-FP
CTL 20HL BS
CTL20HL-BS
E04599
EB20-3
EB20H-3
EBX20HL-BS
EBX20L-BS
ES20LBS
ETX-20L
ETX-20L
FAYTX20
FAYTX20H
FAYTX20HL
FAYTX20HL-PW
FAYTX20L
FB16CL-B
GTX20LBS
GYZ20L
K26012-1013
K26012-1053
K26012-2160
K26012-2160A
K26012-2503
K26012-3003
K26012-3721
M320BS
M620BH
M720BH
ODS-AGM20L
SVR20L
UTX20L-BS
WP20LBS
WPX20L-BS
WPX20L-LS
WPX20LBS(1)
XTA20HLBS
YB16-LB
YB16CL-B
YB18L-A
YB18L-A-TP
YIX20HL
YTR20-BS
YTX-20LBS-00-00
YTX-20LBS-00-00-SNOW
YTX20HILBS
YTX20HL
YTX20HL-BS
YTX20HL-BS-PW
YTX20HL-PW
YTX20L-BS
YTX20L-BS-SNOW
YTX20LBS
YUAM620BH-P
YUEM620BH
