Specs

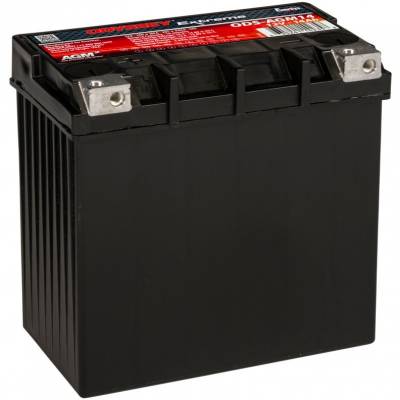

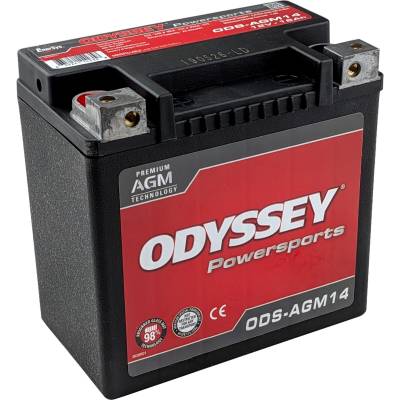

Product Specifications for Odyssey ODS-AGM14 Extreme Battery
Specifications:
BM Part #: | ODS-AGM14 |
---|---|
Voltage: | 12 Volt |
Capacity: | 14 Ah |
Type: | AGM |
Length: | 5.9" |
Width: | 3.4 |
Height: | 5.7" |
Cold Cranking Amps: | 220 CCA |
Shipping Weight: | 12.00Lbs |
Warranty: | 2 Year (Warranty Info) |
PHCA | 565 Amp |
HCA | 320 Amp |
MCA | 300 Amp |
Reserve Capacity | 18 minutes |
Terminal | M6 Receptacle |
Odyssey trademark is the property of Enersys and affiliates.
Features:
- Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation. - Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time. - Longer shelf life
This 12 volt 16 Ah battery can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first. - Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours. - 2 Batteries in 1
The characteristics of two separate batteries are combined in one box. This 12 volt 16 Ah battery can deep cycle (be recharged) as well as provide enormous cranking power. - Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F). - Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted. - Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure. - Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket. - Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system. - Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
Description
Product Description
The Odyssey ODS-AGM14 Extreme battery is an AGM battery with Thin Plate Pure Lead (TPPL) technology. This advanced dual purpose battery is for engine start and deep cycle use.
Replaces
Cross Reference
The Odyssey ODS-AGM14 Extreme Battery has been cross-referenced to be compatible with or replace these OEM part numbers and models:
01-345
182730-10 AT
182730-10AT
2113-0009
2113-0034
2115410001
26012-0047
26012-0582
26012-0589
26012-0595
26012-1275
26012-1279
26012-1279
26012-1296
26012-1302
26012-1334
26012-1357
26012-1368
26012-1371
26012-1409
26012-1410
26012-1411
26012-1412
26012-1414
26012-1414
31500-HA7-675
31500-HA7-676
31500-HA7-678
31500-HC4-722
31500-HC4-725
31500-HC4-726
31500-HC4-726AH
31500-HM5-630
31500-HM5-631
31500-HR0-F01
31500-HR0-F01AH
31500-MB6-672
33610-03G00
33610-03G10
33610-26D10
33610-26D30
33610-31030
33610-31D30
33610-31G00
33610-31G01
33610-38F00
33610-45C00
33610-45C30
3XW-82100-01-00
3XW-82100-01-00-SNOW
61 21 7 723 566
61 21 8 520 153
6121852153
65948-00
65948-00A
AUX14
B14115
BRL-B14115
BTY-Y7X14-BS-00
CB16B-A
CBTX14-BS
DS-325754
EB14C-4
EB16-4
EBX14-BS
EBX16-BS
ES14BS
ETX-14
FAYTX14
FTH16-12B
FTH16-BS
FTH16-BS-1
FTX14-BS
FTX14-BS
FTZ14-BS
FTZ14BS
FTZ16-BS
GYZ16H
K2601-21414
K26012-1017
K26012-1296
KMX14-BS
KMX14-BS
LT14-4
MOFM3RH4S
PTX14BS-FS
RTX14-BS
SVR14
WPH16-A2
YB16
YB16B-A
YTX-14BS0-00-00
YTX-14BS0-00-00
YTX14-BFBS
YTX14-BS
YTX16-BS
