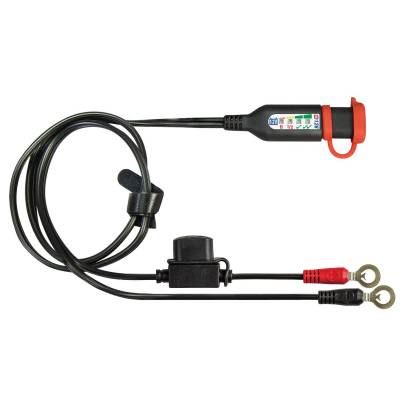

OptiMate MONITOR O-128, Permanent Battery Lead with Battery / charge System Monitor for 12V
Item #: O-128 |
Limited Stock Available
Be the first to Write a Review
Specs
Product Specifications for OptiMate MONITOR O-128, Permanent Battery Lead with Battery / charge System Monitor for 12V
Specifications:
| BM Part #: | O-128 |
|---|---|
| Voltage: | 12 Volt |
| Charging Rate: | n/a |
| Length: | 2.2" |
| Width: | 2.2" |
| Height: | 6.1" |
| Shipping Weight: | 0.40Lbs (6.4 oz) |
| Warranty: | 3 Years Factory Direct |
Features:
- Weatherproof permanent long battery lead with state of charge monitor for '12V' batteries – 24/7 battery status at a blink of a LED!
- SAE quick connect charge port for charging battery when needed!
- 2 automatic Modes – Battery charge level monitor (single LED blink mode) & Charging system test (arrow mode).
- Vehicle storage: 4 LEDs cover 'full to empty' voltage range of all 12V batteries, including higher voltage AGM for power sport (4th √√ LED ≥ 12.7V ). LED matching charge level blinks every 3 seconds (long term draw less than 0.2mA).
- Vehicle running: LED arrow mode activates when charge voltage reaches ideal charging voltage: up to minimum 13.5V (√ green LED) or ideal range 14V+ (√√ green LED).
- Longer 40" length with M8 (5/16") / M10 / (3/8") ringlets that fit a variety of battery terminals, with 15A fuse that protects the -40° rated cable and electronics – Premium quality!
Description
Product Description
Smart battery lead that measures voltage; monitors charge of a 'larger' stored 12V lead-acid battery and confirms if the vehicle charging system is working correctly.
LENGTH: 40".
BATTERY CONNECTOR: 5/16" (M8) / 3/8" (M10) ringlets.
CHARGE CONNECTOR: 2-pin SAE, protected from dirt and liquid with rubber sealing cap and shroud.
CABLE RATING: 16 AWG (1.31mm2) SPT-2W.
FUSE: 15 Amp.
USE: -40°C/-40°F very low temperature, remains flexible at 'below freezing' temperatures.
STYLE: Fully enclosed electronic circuitry with 4 LEDs, SAE charge connector with rubber sealing cap & shroud.
Replaces
Cross Reference & Compatibility
The OptiMate MONITOR O-128, Permanent Battery Lead with Battery / charge System Monitor for 12V has been cross-referenced to be compatible with or replace these OEM part numbers and models:
O-128
