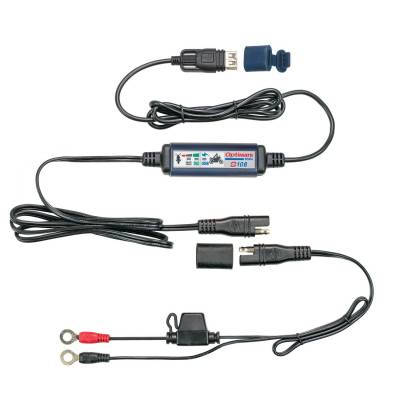

Product Specifications for OptiMate USB O-108KIT, Smart in-line 3300mA USB Charger kit, with Standby Mode and Battery Monitor
| BM Part #: | O-108-KIT |
|---|---|
| Voltage: | 12 Volt |
| Charging Rate: | 3300 mA |
| Length: | 2.2" |
| Width: | 2.2" |
| Height: | 6.1" |
| Shipping Weight: | 0.34Lbs (5.44 oz) |
| Warranty: | 3 Years Factory Direct |
- The sealed in-line battery to USB 3300mA charger with 80" of cable and O-31 battery lead, delivers safe and fast USB charging of any device mounted outside on the handlebar or inside your tank or pannier - Cable routes to where USB charging is needed!
- Supply cable ( 40") with M6 / 1/4" rings fit all powersport battery terminals. - Fuse protected.
- Charges 1x USB device with up to 3300mA current available (or get optional O-110 USB splitter and charge 2 devices). - Charge current adapts to connected device for safe recharging.
- Weatherproof USB charge port easily zip-tie to handlebar, strut or even brake / clutch cable - Seals against inserted USB cable for charging in any weather!
- Built in protection turns off USB charging & prevents your parked vehicle's LFP (LiFePO4) or AGM (Pb)battery from draining - Starts back up when vehicle engine fires up.
- Monitors and displays parked vehicle's battery status - Indicates battery is 'start ready' at the blink of an LED!
Product Description
Smart in-line USB charger, with standby mode & vehicle battery monitor. Charge your phone, GPS, camera & tablet with your weatherproof charger, on your motorcycle or up to 80" away from 12V supply.
LENGTH: 80".
CHARGE CONNECTOR (INPUT): O-31 battery lead with M6 (1/4") rings / eyelets OR 2-pin SAE (if disconnected from O-31).
POWER (INPUT): Vehicle 12V system with 12V lead-acid or 12.8V lithium battery.
CHARGE CONNECTOR (OUTPUT): 1x USB.
POWER (OUTPUT): 3300mA @ 5V.
OPERATION: Fully automatic. Vehicle battery protection: Low input (<12.4V) auto-off protects vehicle battery from total discharge. Supply range: 12.4 to 16Vdc. Turns on if vehicle battery voltage increases above 13.3V. 2 LED battery monitor. Short circuit, overheat, over-voltage protection.
CABLE RATING: SPT-1.
USE: -4°F very low temperature, remains flexible at 'below freezing' temperatures.
STYLE: Fully enclosed electronic circuitry with multiple LEDs, unique seal and cap design for USB socket; use any USB cable, seals when inserted.
