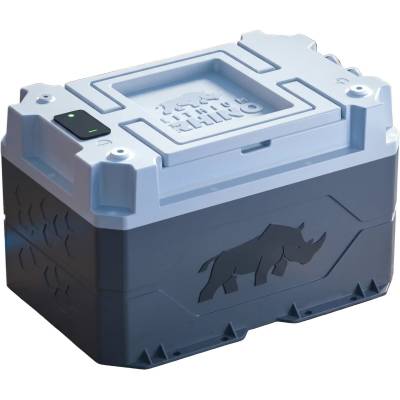

Free ShippingProduct Specifications for 24V 100Ah Lithium Rhino Marine LiFePO4 Conversion Kit
| BM Part #: | LR24V100AH-M |
|---|---|
| Voltage: | 25.6 Volt |
| Capacity: | 100 Ah |
| Energy Capacity: | 2,560 Wh |
| Type: | LiFePO4 |
| Length: | 14.65" |
| Width: | 10.51" |
| Height: | 8.70" |
| Shipping Weight: | 48.00Lbs |
| Warranty: | 8 Years |
| Reserve @ 25A: | 240 Minutes |
| IP Rating: | IP67 |
| Certifications: | UN38.3 |
What's in the box:
- IP67-rated LiFePO4 Battery
- 15A High-efficiency Waterproof Charger
- Full-color Round Gauage with Secondary Power Button
- IP67 Waterproof Protection: Sealed casing shields the battery from rain, spray, and splashes.
- 150A Smart BMS: Active battery management continuously monitors and protects every cell.
- App Connectivity: Free Rhino app tracks live voltage, charge, and cell temperature from your phone.
- Complete Conversion Kit: Includes a waterproof charger, console gauge, power button, and mounting hardware.
- 240-Minute Reserve Capacity: Delivers hours of continuous runtime for long days on the water.
- 6,000+ Cycle Lifespan: Outlasts lead-acid batteries many times over, cutting long-term replacement costs.
- 8-Year Full-Replacement Warranty: Covers the cells, BMS, and electronics for total peace of mind.
- Compact, Lightweight Build: Weighs just 45.4 lbs in a 14.65 x 10.51 x 8.70 inch case.
Product Description
Bigger Boat, Bigger Battery, Zero Compromises
If you're running a larger 24V trolling motor, you already know the frustration of lead-acid batteries running out of steam halfway through the day. The 24V 100Ah Lithium Rhino Marine LiFePO4 Conversion Kit is built for exactly that problem: serious capacity in a single battery, so you're not stacking three heavy lead-acid batteries just to make it to sundown.
Power That Doesn't Fade When You Need It Most
This battery uses LiFePO4 chemistry for a flat, steady voltage curve, so your trolling motor pulls the same power at the end of the day as it did at the start. You get hours of continuous runtime to work with, whether you're out for the afternoon or staying on the water for a multi-day trip.
The rugged, IP67-rated shell shrugs off rain, spray, and splashes, and the whole system is built to handle real marine conditions, not just fair-weather days on the lake.
This is a complete conversion kit, not just a battery, so everything you need is included:
- Rhino IP67 marine battery
- 15-amp waterproof charger
- Full-color console gauge and external power button
- Mounting hardware and the free Rhino app
Install It Once, Trust It for Years
Most owners have this kit wired up and ready to go in under an hour. If you hit a snag, the manufacturer's support team is available by phone or video call to walk you through it. Every kit also carries an 8-year full-replacement warranty on the cells, BMS, and electronics, so you're covered for the long haul.
Ready to Fish Longer and Carry Less?
Stop hauling extra batteries just to keep your motor running. Add the 24V 100Ah Lithium Rhino Marine LiFePO4 Conversion Kit to your cart and get the capacity your boat actually needs.
Frequently Asked Questions
Will this kit fit my boat's existing 24V trolling motor system?
A: This battery measures 14.65" L x 10.51" W x 8.70" H and weighs 45.4 lbs, with M8 female terminals for connecting your existing cables. Compare these measurements to your current battery tray before ordering to confirm a proper fit.
How long does installation take?
A: Most owners complete the swap in under an hour using basic hand tools. The kit includes mounting hardware, a console gauge, and a waterproof charger, so no extra wiring kits are needed.
Do I need the Rhino app to use this battery?
A: No. The battery runs fine without it. The free app is optional and simply lets you check charge level, voltage, and cell temperature from your phone over Bluetooth.
What's the difference between the console gauge and the app?
A: The full-color gauge mounts at your helm for an at-a-glance check while you're driving. The app gives you deeper diagnostics, like per-cell voltage and fault history, when you want more detail.
Is this battery safe to ship and install?
A: Yes. It's UN 3480 and UN38.3 certified for lithium battery transport. These certifications are standard for lithium batteries and don't affect installation or everyday use.
