Product Specifications for LITH-LS26500-WL 3.6V C Size Lithium Battery with Wire Leads
| BM Part #: | LS26500-WL |
|---|---|
| Voltage: | 3.6 Volt |
| Capacity: | 7700 mAh |
| Energy Capacity: | 27.72 Wh |
| Type: | Li-SOCl2 |
| Battery Size: | C |
| Length: | 1.97" |
| Diameter: | 1.03" |
| Shipping Weight: | 0.15Lbs (2.4 oz) |
| Warranty: | 60 Day Return |
- Direct OEM Replacement: Compatible with SAFT LS26500 and LS26500BA — fits any device designed for the original part.

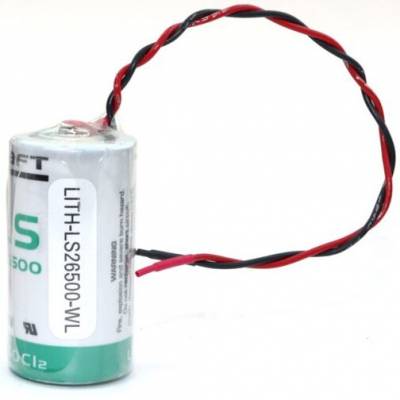

- Pre-Attached 6" Wire Leads: Comes ready to connect for easy installation in tight compartments without a snap-in holder.
- Up to 10-Year Shelf Life: Long-lasting storage performance means you can stock spares and rely on them being ready when needed.
- Wide Temperature Range: Performs from -76°F to +185°F, making it a reliable choice in harsh outdoor and industrial environments.
- Stable Voltage Output: Maintains a consistent 3.6V throughout most of its discharge cycle to keep sensitive equipment operating correctly.
- High Capacity C Size: 7,700mAh in a standard C size form factor — powerful output in a compact, universally recognized package.
Product Description
When your PLC, utility meter, or industrial equipment needs backup power that can go years without attention, the LITH-LS26500-WL is built for the job. This C size 3.6V lithium battery is a direct replacement for the SAFT LS26500 and arrives pre-fitted with 6-inch wire leads for clean, straightforward installation — no adapters or holders required.
Serious Capacity, Proven Chemistry
Rated at 7,700mAh, this battery delivers a generous amount of power in the familiar C size format. It uses lithium thionyl chloride chemistry — a technology that has been trusted across industrial applications worldwide for decades. A few things that sets it apart from standard batteries:
- Shelf life up to 10 years — Stock it with confidence. This battery holds its charge for up to a decade in storage, so it's ready to perform when you finally need it.
- Stable voltage throughout discharge — Unlike alkaline batteries that gradually fade, this battery holds a consistent 3.6V for the vast majority of its discharge cycle, keeping sensitive equipment running as intended.
- Extreme temperature range — Rated from -76°F to +185°F, it operates reliably in environments that would shut down lesser batteries — from frozen outdoor enclosures to hot industrial cabinets.
Where It Gets the Job Done
This battery is a practical choice anywhere a dead cell means shutting down critical systems. Common applications include programmable logic controllers (PLCs), utility and smart meters, memory and data backup systems, and industrial sensors or monitoring equipment.
A Direct SAFT LS26500 Replacement
Cross-referenced as the LS26500 and LS26500BA, this battery is built to the same specifications as the original SAFT part. If your equipment originally shipped with a SAFT LS26500, the LITH-LS26500-WL fits and performs identically — without the search for an OEM part.
The 6-inch wire leads are a thoughtful addition for installations where a snap-in battery holder isn't an option. They allow for flexible mounting and secure connections even in tight or awkward spaces. When uptime matters and maintenance visits are infrequent, this is the battery that earns its place in the panel.
Frequently Asked Questions
What is the LITH-LS26500-WL a replacement for?
A: This battery is a direct replacement for the SAFT LS26500 and LS26500BA. It is cross-referenced to those part numbers and built to the same specifications, so it will fit and perform in any device that originally used one of those batteries.
Does this battery come with wire leads already attached?
A: Yes. The LITH-LS26500-WL comes pre-fitted with 6-inch wire leads, making it ready to install right out of the package. This is especially useful in equipment where a traditional snap-in battery holder is not accessible.
How long will this battery last in storage?
A: Thanks to its lithium thionyl chloride chemistry, this battery has a shelf life of up to 10 years. It retains its charge during long-term storage, which makes it a practical choice for stocking as a spare.
Can this battery handle extreme heat or cold?
A: Yes. The LITH-LS26500-WL is rated to operate in temperatures ranging from -76°F to +185°F. It is well-suited for outdoor enclosures, industrial machinery, and any application where temperature swings are a concern.
Is the LITH-LS26500-WL rechargeable?
A: No. This is a primary (non-rechargeable) lithium battery. It is designed for long-term, single-use applications where reliability and longevity matter more than rechargeability. Do not attempt to recharge this battery.
