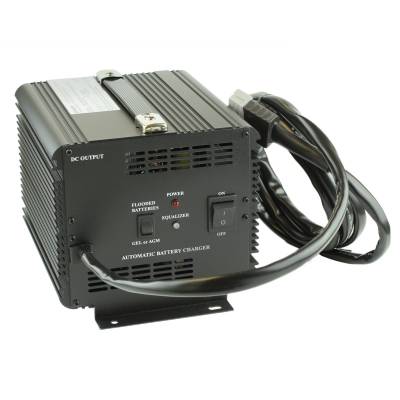

Schauer JAC2036H Charger: 36 Volt, 20 Amp
Item #: JAC2036H   |    In Stock

Schauer JAC2036H Charger: 36 Volt, 20 Amp
zoom in
Processing...

Schauer JAC2036H Charger: 36 Volt, 20 Amp

Item #: JAC2036H   |  In Stock

Price: $259.95


Price: $259.95



Best Value
2 Year Factory Direct Warranty
Brand New
100% Compatibility

Add me to waiting list: Sign up with your email to be notified when this product is back in stock!

Product Specifications for Schauer JAC2036H Charger: 36 Volt, 20 Amp

Specifications:
BM Part #: JAC2036H
Voltage: 36 Volt
Capacity: 20 Amp
Input Voltage: 115/230 volts, 50/60Hz (autosensed)
Length: 6.5"
Width: 8"
Height: 7.5"
Shipping Weight: 13.00Lbs
Warranty: 2 Year Factory Direct
Datasheet: Download
Features:
  • Fully automatic 3 stage charger can be left on the battery in maintaining/float mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Charge control: constant current charge to a constant voltage, then to a float standby.
  • Current limiting.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Continuous - 100% duty cycle.
  • Low voltage start: will start charging a deeply discharged battery with terminal voltage less than 4 volts.
  • Reverse polarity and short circuit proof.
  • Aluminum case.
  • Popular with floor sweepers and floor scrubbers.

Intelligent chargers follow battery impedance to end of charge cycle for all battery types. Fully automatic.

Red LED indicates AC power on, yellow LED indicates battery is charging, green LED indicates float mode.

  • Charge control: constant current charge to a constant voltage, then to a float standby.
  • Current limiting.
  • Fully automatic 3 stage charger can be left on the battery in maintaining/float mode.
  • Can be set for any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Cyclic voltage: FLOODED 2.5 volts/cell; GEL & AGM 2.4 volts/cell. 2.6 volts/cell for 36 & 48 volt batteries. May be preset to customer's specification for battery type.
  • Not intended for use as a DC power supply.
  • Continuous - 100% duty cycle.
  • Low voltage start: will start charging a deeply discharged battery with terminal voltage less than 4 volts.
  • Reverse polarity and short circuit proof.
  • Aluminum case.
  • AC Input 115/230 volts, 50 or 60Hz Input voltage autosensed.
  • Popular with floor sweepers and floor scrubbers.

Plug Options Available, selectable in the Gray Box Below the Price:

Plug: Standard: SB® 50 (Gray)

Plug: SB® 50 Red

Plug: SB® 175 Gray

Plug: SB® 175 Red

Plug: Stripped Lead Adapter

Plug: Battery Clips

Plug:EZ Go TXT (Powerwise)

Plug: Crows Foot

Plug: Star Car 3 Pin Yellow


9 Reviews | 4.7 out of 5
5 stars (6)
4 stars (3)
3 stars (0)
2 stars (0)
1 star (0)
100%
Would recommend this product.
What our Customers are saying
golf car charger
August 10, 2018
by on August 10, 2018

just what I needed and it works as advertised

Stud
Payson, AZ
Would recommend to a friend?
Yes
Schafer JAC2036H
June 16, 2018
by on June 16, 2018

Haven't been able to test full capability of charger, review will be about the ease of the website. Item was purchased and shipping was extremely fast. Thank you.

DD
DE
Would recommend to a friend?
Yes
I really needed this one
July 28, 2016
by on July 28, 2016

I received my new JAC2036H charger a couple of weeks ago, and I got it for my golf cart that I keep at our camper. I was attempting to charge with my old one, had it plugged in and charging for 3.5 hours. It didn't do a thing. I guess it outlived its usefulness. so I purchased the new one and couldn't wait to get out to the campground and try it out. It is very light compared to the old one I was using, the fan is very quiet and it worked as expected. I got a full charge in about 2 hours of time. Another plus about this unit is that it has an auto shut off and the instructions say you can leave it plugged in for months at a time with no harm to the charger or the batteries. Very cool! The only negative I found with the charger is that it has no rubber pad for it to rest on. I just finished staining a deck and was afraid to scratch or gouge it. I simply mounted a piece of wood to the bottom since it already had the holes for it. Problem solved. I highly recommend this charger and the price is a very good value.

Wizard51
Ohio
Would recommend to a friend?
Yes
36 volt charger
May 12, 2016
by on May 12, 2016

I ordered this charger for a forklift I purchased. The charger arrived in a timely manner and was exactly as described. I was very happy with the charger and it worked very well for my application. I would order from this company again if I needed a charger.

Gary G
Would recommend to a friend?
Yes
Better than the origanal
May 5, 2016
by on May 5, 2016

Purchased this charger to replace the original for one of our electric forklifts. Original charger took up floor space, needed a 240V outlet and had a tendency to boil the water out of the batteries due to the high amp output. I mounted this charger next to the seat of the forklift, made an adapter to go from the charger to the battery plugin and added an extension cord so that it could charge anywhere there is an outlet. Does a great job of charging and the forklift has never worked better.

GOTOJW.ORG
Minnesota
Would recommend to a friend?
Yes
Mr.
March 8, 2016
by on March 8, 2016

This was purchased to replace the one I had that was stolen. Of course I liked the quality and engineering of this model, so I didn't hesitate to buy it again.

Bob
Would recommend to a friend?
Yes
Flooded Batteryy Charger
September 7, 2015
by on September 7, 2015

I use the product to charge my golf cart. The fact that the yellow light does not flash and the unit does not shut off automatically means an extra trip to the cart after charging

Burt
North Falmouth,
Would recommend to a friend?
Yes
