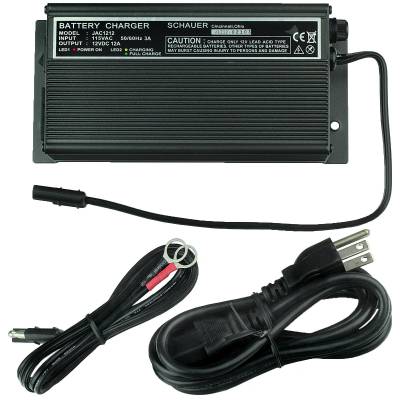

Schauer JAC1212-R Charger: 12 Volt, 12 Amp with Ring Terminals
Item #: JAC1212-R |
In Stock
(1) Read a Review / Write a Review
Specs
Product Specifications for Schauer JAC1212-R Charger: 12 Volt, 12 Amp with Ring Terminals
Specifications:
| BM Part #: | JAC1212-R |
|---|---|
| Voltage: | 12 Volt |
| Capacity: | 12 Amp |
| Input Voltage: | 115 VAC |
| Length: | 1.8" |
| Width: | 6.5" |
| Height: | 3.5" |
| Shipping Weight: | 3.40Lbs |
| Warranty: | 2 Year Factory Direct |
| Product Manual: | Download |
| Datasheet: | Download |
Features:
- For any type of lead acid battery: Conventional, Maintenance-Free, Deep Cycle, Gelled-Type, Valve-Regulated
- Fully automatic, 3-stage charger and can be left on your battery indefinitely.
- Charge control: modified constant current charge to a constant finishing voltage, then to a float standby charge.
- 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to your specification for battery type.
- Reverse polarity protection, short circuit proof, and current limiting.
Description
Product Description
This fully automatic charger is for any type of lead acid battery, including conventional, maintenance free, deep cycle, gelled-typed, and valve-regulated batteries.
This charger confirms operation with three colored LED lights. Red indicates AC power is on, yellow shows the battery is charging, and green lets you know that charger has entered float mode. It is completely safe to be left on your battery indefinitely.
Replaces
Cross Reference
The Schauer JAC1212-R Charger: 12 Volt, 12 Amp with Ring Terminals has been cross-referenced to be compatible with or replace these OEM part numbers and models:
JAC1212
JAC1212-C
JAC1212-R
JAC1212AGM
