Schauer JAC0524 Charger: 24 Volt, 5 Amp with Ring Terminals
Item #: JAC0524 |
In Stock
Be the first to Write a Review
Free ShippingSpecs
Product Specifications for Schauer JAC0524 Charger: 24 Volt, 5 Amp with Ring Terminals
Specifications:
| BM Part #: | JAC0524 |
|---|---|
| Voltage: | 24 Volt |
| Capacity: | 5 Amp |
| Input Voltage: | 115 VAC |
| Length: | 1.8" |
| Width: | 6.5" |
| Height: | 3.5" |
| Shipping Weight: | 3.40Lbs |
| Warranty: | 2 Year Factory Direct |
| Product Manual: | Download |
| Datasheet: | Download |
Features:
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
- Not intended for use as a DC power supply.
- Full load at 2.1 volts per cell continuous - 100% duty cycle.
- Short circuit proof.
- Reverse polarity protection (except 2 amp model).
Description
Product Description

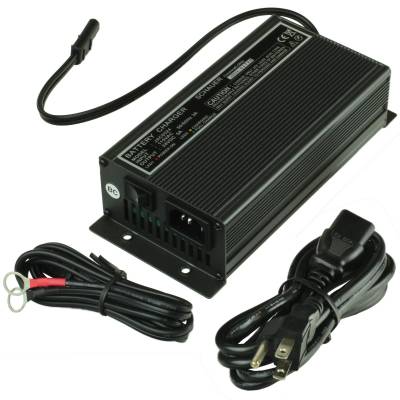

Aluminum-cased 24 Volt, 5 Amp Battery Charger with Ring Terminals
This fully automatic charger confirms operation with three colored LED lights. Red indicates AC power is on, yellow shows the battery is charging, and green lets you know that charger has entered float mode.
- Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
- Current limiting.
- Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
- For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
- Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
- Not intended for use as a DC power supply.
- Full load at 2.1 volts per cell continuous - 100% duty cycle.
- Short circuit proof.
- Reverse polarity protection (except 2 amp model).
Replaces
Cross Reference
The Schauer JAC0524 Charger: 24 Volt, 5 Amp with Ring Terminals has been cross-referenced to be compatible with or replace these OEM part numbers and models:
JAC0524-R
