Schauer JAC0512 Charger: 12 Volt, 5 Amp with Ring Terminals
Item #: JAC0512   |    In Stock
Be the first to Write a Review

Schauer JAC0512 Charger: 12 Volt, 5 Amp with Ring Terminals
zoom in

Schauer JAC0512 Charger: 12 Volt, 5 Amp with Ring Terminals

Item #: JAC0512   |  In Stock
Be the first to Write a Review


Today's Price: $86.95


Price: $86.95


Best Value
2 Year Factory Direct Warranty
Brand New
100% Compatibility
Secure Transaction

Product Specifications for Schauer JAC0512 Charger: 12 Volt, 5 Amp with Ring Terminals

Specifications:
BM Part #: JAC0512
Voltage: 12 Volt
Capacity: 5 Amp
Input Voltage: 115 VAC
Shipping Weight: 3.40Lbs
Warranty: 2 Year Factory Direct
Datasheet: Download
Features:
  • Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
  • Current limiting.
  • Fully Automatic: This charger can be left on the battery indefinitely without overcharging.
  • For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
  • Not intended for use as a DC power supply.
  • Full load at 2.1 volts per cell continuous - 100% duty cycle.
  • Short circuit proof.
  • Reverse polarity protection (except 2 amp model).

Product Description

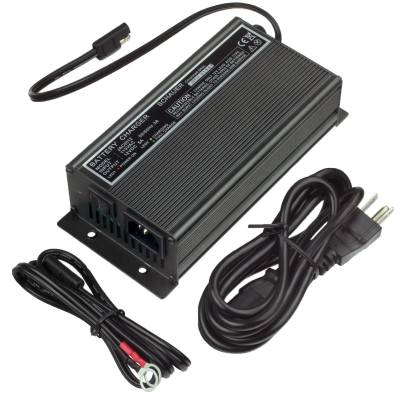

Aluminum-cased 12 Volt, 5 Amp Battery Charger with Ring Terminals

The fully automatic Schauer JAC0512 12 volt, 5 amp battery charger confirms operation with three colored LED lights. Red indicates AC power is on, yellow shows the battery is charging, and green lets you know that charger has entered float mode.

  • Charge control: Starts with a modified constant current charge, then to a constant finishing voltage, finishing with its float standby mode.
  • Current limiting.
  • Fully Automatic: This 12 volt, 5 amp battery charger can be left on the battery indefinitely without overcharging.
  • For any type lead acid battery, including conventional, maintenance free, deep cycle, gelled-type, valve regulated batteries.
  • Finishing voltage: 2.28 volts per cell float; 2.4 volts per cell finishing. May be preset to customers specification for battery type.
  • Not intended for use as a DC power supply.
  • Full load at 2.1 volts per cell continuous - 100% duty cycle.
  • Short circuit proof.
  • Reverse polarity protection (except 2 amp model).

Cross Reference

The Schauer JAC0512 Charger: 12 Volt, 5 Amp with Ring Terminals has been cross-referenced to be compatible with or replace these OEM part numbers and models:
JAC0512-R
