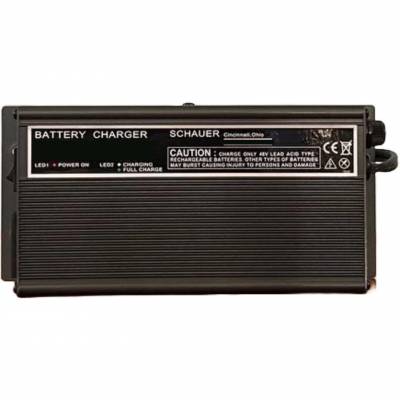

Schauer JAC0436-XLR 36 Vol, 4 Amp Battery Charger with XLR Connector
Item #: JAC0436-XLR |
Ships Directly from Manufacturer
Be the first to Write a Review
Specs
Product Specifications for Schauer JAC0436-XLR 36 Vol, 4 Amp Battery Charger with XLR Connector
Specifications:
| BM Part #: | JAC0436-XLR |
|---|---|
| Voltage: | 36 Volt |
| Capacity: | 4 Amp |
| Input Voltage: | 115 VAC, 50/60 Hz |
| Length: | 7.01" |
| Width: | 3.46" |
| Height: | 1.85" |
| Shipping Weight: | 2.50Lbs |
| Warranty: | 2 Year Factory Direct |
| Datasheet: | Download |
Features:
- 36V 4A Smart Charging: Ideal for mobility scooters, e-bikes, floor scrubbers, and other 36V lead-acid battery systems.
- 3-Stage Charging Technology: Automatically cycles through Constant Current, Constant Voltage, and Float modes for safe, full charging.
- Wide Battery Compatibility: Works with all 36V lead-acid batteries including Flooded, AGM, and Gel types.
- Built-in Cooling Fan: Maintains optimal temperature during operation to extend charger life.
- Advanced Safety Protections: Includes reverse polarity, short circuit, over-voltage, and over-temperature protection.
- Compact & Lightweight: Portable design (1.76 lbs) with rugged aluminum housing and optional mounting flanges.
- LED Status Indicators: Easy-to-read lights show Power (Red), Charging (Amber), and Full/Float (Green) status.
- Energy Efficient & Certified: Meets DOE Title 20 and California BC energy efficiency standards; CE certified for safety.
Description
Product Description
Schauer JAC0436-XLR 36V 4A Battery Charger | Smart, Automatic, Portable
Efficient, smart charging for your 36V battery system starts here. The Schauer JAC0436-XLR 36V 4 Amp Smart Battery Charger is a compact, portable charger designed for precision charging of 36-volt lead-acid batteries. Whether you're powering mobility scooters, electric bikes, floor scrubbers, or small industrial vehicles, this intelligent automatic charger ensures your batteries stay charged, protected, and ready for use.
Top Features of the Schauer JAC0436-XLR 36V Battery Charger:
- Optimized 36V 4A Output: Ideal for fast, safe charging of 36-volt battery systems across many applications.
- Advanced 3-Stage Smart Charging: Automatically cycles through Constant Current (CC), Constant Voltage (CV), and Float/Maintenance mode to extend battery life and prevent overcharging.
- Wide Compatibility: Designed for use with all 36V lead-acid battery types, including Flooded (Wet), AGM, and Gel.
- Lightweight & Portable: Weighs just 1.76 lbs (0.8 kg) and fits anywhere with compact dimensions: 7.01" x 3.46" x 1.85".
- Built-in Cooling Fan: Prevents overheating for consistent performance and long-lasting durability.
- Full Safety Suite: Includes reverse polarity, short circuit, over-voltage, and over-temperature protection. Voltage and current limiting ensure safe operation.
- Convenient Power Switch: Easily turn the charger on or off as needed.
- Durable Build: Rugged aluminum casing with mounting flanges for optional fixed installation.
- Detachable AC Power Cord: Includes 5 ft NEMA 5-15 to IEC C13 cord for flexible setup and storage.
- Intuitive LED Status Lights: Monitor charging with indicators for Power (Red), Charging (Amber), and Float/Full Charge (Green).
- Energy Efficient: Meets stringent energy standards including DOE UEC Title 20 and California BC compliance.
Technical Specifications – Schauer JAC0436-XLR
| Model Number | JAC0436-XLR (0891-102) |
|---|---|
| Input Voltage | 115 VAC, 50/60 Hz (Single Phase) |
| Max Input Current | 3.6 Amps |
| Input Connector | IEC C14 |
| Output Voltage (Nominal) | 36 VDC |
| Output Voltage (Bulk / Cyclic) | 44.1 VDC |
| Float Voltage | 39.3 VDC |
| Max Charging Current | 4 Amps |
| Supported Battery Types | Lead Acid (Flooded, AGM, Gel) |
| Charging Profile | 3-Stage (CC / CV / Float) |
| Minimum Load Detection | 12 Volts |
| Dimensions (L x W x H) | 178 x 88 x 47 mm (7.01" x 3.46" x 1.85") |
| Weight | 0.8 kg (1.76 lbs) |
LED Status Indicators
- Red LED: Power On
- Amber LED (Fan On): Charging Mode
- Green LED (Fan Off): Fully Charged / Float Mode
Certifications & Compliance
- CE Certified for Electrical Safety
- DOE UEC Title 20 Compliant
- California Energy Efficiency Compliant (Battery Charger Regulation)
Included in the Box
- Schauer JAC0436-XLR 36V 4 Amp Battery Charger
- 5 ft Detachable AC Power Cord (NEMA 5-15 to IEC C13)
- User Manual
- 2-Year Limited Manufacturer Warranty
Why Choose Battery Mart?
- Trusted Since 1982: Over 40 years of battery expertise and industry-leading support.
- Fast, Reliable Shipping: Your order ships quickly so you can charge without delay.
- Outstanding Customer Support: Friendly service and expert advice—before and after the sale.
Don’t let your 36V system fall flat. Get dependable charging with the Schauer JAC0436-XLR 36V 4A Smart Battery Charger—the portable, automatic charger trusted by professionals and DIYers alike. Order today from Battery Mart!
Replaces
Cross Reference & Compatibility
The Schauer JAC0436-XLR 36 Vol, 4 Amp Battery Charger with XLR Connector has been cross-referenced to be compatible with or replace these OEM part numbers and models:
JAC0436
JAC0436-R
JAC0436-XLR
