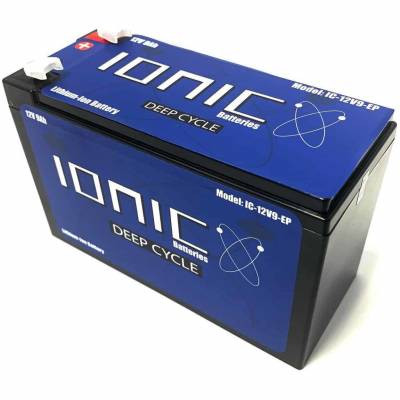

Product Specifications for Ionic Lithium 12V 9Ah | LiFePO4 Deep Cycle Battery
| BM Part #: | ION-12V9 |
|---|---|
| Voltage: | 12.8 Volt |
| Capacity: | 9 Ah |
| Terminals: | F2 (0.25") |
| Type: | LiFePO4 |
| Length: | 5.9" |
| Width: | 2.55" |
| Height: | 3.99" |
| Shipping Weight: | 2.80Lbs |
| Warranty: | 3 Year Factory Direct |
- 70% lighter than lead acid batteries, with two to four times the service life (3000-5000 cycles).
- Great for marine, RV, floor sweepers, lift gates, UPS systems, solar energy storage.
- Battery Management Systems (BMS) with power terminal cut-off and recovery.
- Built in cold weather protection - Does not take a charge if temperatures are below -4C or 24F in our case. Some variations with part tolerances.
- Cell balancing and low voltage/over voltage protection, short-circuit protection.
- Maximize your energy potential with 99% Depth of Discharge (DOD).
- Drop in replacements (plug and play).
- Run as many needed in parallel.
- Comes with an 3 Year Battery Warranty to give you peace of mind with your purchase.
- Compatible with the following chargers: Ionic, Noco Gen Pro, Dual Pro PS/ Auto, Minnkota Precision, Pro Mariner/Pro Tournament Elite, Stealth, Troll Bridge DC, Power Pole.
Product Description
Ionic Lithium Deep Cycle Battery 12V9-EP
World Class Safety Features
Ionic Lithium Deep Cycle Battery 12V9-EP has 12 volts and a 9Ah capacity and is perfect for powering your deep cycle systems. Ionic deep cycle lithium batteries have an internal microprocessor controlled battery management system (BMS) that monitors the key operational parameters during charging and discharging, such as voltages, currents and internal temperatures.
Built for Long Lasting Reliable Power
Ionic Deep Cycle Battery has a cycle life of 3,000 cycles or about 10 calendar years. Our lithium batteries have a usable capacity of 99% compared to 50-60% for traditional lead-acid batteries. LithiumHub Deep Cycle batteries function in the widest range of temperatures with a discharge temperature range (Functional) of –20°C to 60°C (–4°F to 140°F) and a charge temperature range of 0°C to 45°C (32°F to 113°F). Automatically detects if batteries are too cold to take a charge.
The Ionic Deep Cycle line has the best weight to power ratio on the market
At 2.55" (L) x 5.91" (W) x 3.99" (H) and weighing only 2.8 lbs., the LithiumHub Deep Cycle 12V9-EP has the best size to power ratio of any deep cycle battery on the market. Connectors: F2, 0.25", 6.4 mm Spade Terminals allow the battery to be installed in any direction unlike lead-acid batteries which are fixed. Ionic Deep Cycle Batteries self-discharge rate per month is between 1-3% compared to lead-acid batteries which are about 30%.
Max charge voltage is 14.6V and the discharge cut-off voltage is 10.5. Max charge current is 9A and max discharge current is 9A / 35A(3s). Can be charged with solar chargers. Can be charged with most traditional lead-acid chargers that do not have "Desulfate" mode, provided the current levels do not exceed lithium battery charge specification. Using a traditional lead-acid charger that reaches 14.4-14.6 volts will allow the battery to be fully charged. Chargers that do not exceed 13.6 volts will only charge the battery to 50% capacity or less.
Ultimately, LiFePO4 batteries, while a larger investment on the front end, are cheaper long term. Because they last much longer. The Ionic batteries' materials are more expensive, but people are choosing them over the rest, and more than ever. Why? Because Ionic lithium batteries have a substantial edge over other batteries. As we've covered, they're much lighter than lead acid and other battery types, plus they're safer and require no maintenance. Best of all, they last longer, are more reliable, and are far more cost-efficient.
