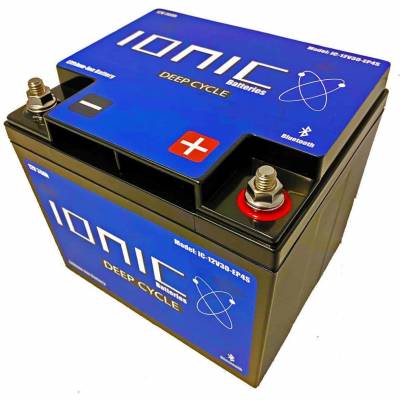

Product Specifications for Ionic Lithium 12V 30Ah | LiFePO4 Deep Cycle Battery + Bluetooth
| BM Part #: | ION-12V30 |
|---|---|
| Voltage: | 12.8 Volt |
| Capacity: | 30 Ah |
| Terminals: | 3/8 UNC Thread |
| Type: | LiFePO4 |
| Battery Size: | Group 25 |
| Length: | 7" |
| Width: | 6.5" |
| Height: | 7.7" |
| Shipping Weight: | 11.70Lbs |
| Warranty: | 11 Year Factory Direct |
Get the Ionic Blue Batteries Bluetooth Monitoring App:
- 70% lighter than lead acid batteries, with two to four times the service life (3000-5000 cycles).
- Great for marine, RV, floor sweepers, lift gates, UPS systems, solar energy storage.
- Battery Management Systems (BMS) with power terminal cut-off and recovery.
- Built in cold weather protection - Does not take a charge if temperatures are below -4C or 24F in our case. Some variations with part tolerances.
- Cell balancing and low voltage/over voltage protection, short-circuit protection.
- Bluetooth technology to monitor battery status.
- Maximize your energy potential with 99% Depth of Discharge (DOD).
- Drop in replacements (plug and play).
- Run as many needed in parallel.
- Can go up to 4 in series with this battery.
- Comes with an 11 Year Battery Warranty to give you peace of mind with your purchase.
- Compatible with the following chargers: Ionic, Noco Gen Pro, Dual Pro PS/ Auto, Minnkota Precision, Pro Mariner/Pro Tournament Elite, Stealth, Troll Bridge DC, Power Pole.
Product Description
Ionic Lithium Battery Deep Cycle 12V30-EP
World Class Safety Features
Ionic Lithium Deep Cycle 12V30-EP has 12 volts and a 30Ah capacity and is perfect for powering your deep cycle systems. Ionic Deep Cycle has an internal microprocessor-controlled battery management system (BMS) that monitors the key operational parameters during charging and discharging, such as voltages, currents and internal temperatures. Ionic Deep Cycle Batteries can be hooked up 4 in series and as many needed in parallel. The 12V 30Ah can also be used for recreational fishing that provides 6-8 hours of trolling on a 36V system. Not recommended for tournament fishing.
Built for Long Lasting Reliable Power
The Ionic Deep Cycle Battery has a cycle life of 3,000 cycles or about 10 calendar years. Our lithium batteries have a usable capacity of 99% compared to 50-60% for traditional lead-acid batteries]. LithiumHub Deep Cycle batteries function in the widest range of temperatures with a discharge temperature range (Functional) of –20°C to 60°C (–4°F to 140°F) and a charge temperature range of 0°C to 45°C (32°F to 113°F). Automatically detects if batteries are too cold to take a charge.
The Ionic Deep Cycle line has the best weight to power ratio on the market
At 6.5" (L) x 7.7" (W) x 7.0" (H) and weighing only 11.7 lbs., the Ionic Deep Cycle 12V30-EP has the best size-to-power ratio compared to any deep cycle battery on the market. Connectors: M6 screws allow you to install the battery in any direction, unlike lead-acid batteries (which are fixed). Ionic Deep Cycle Batteries' monthly self-discharge rate is 1-3%. Compare that to lead-acid batteries' 30% monthly self-discharge rate. The max charge voltage is 14.6V and the discharge cut-off voltage is 10.5V. The max charge current is 15A and the max discharge current is 40A / 170A(3s). You can use solar chargers to charge these batteries. You can use most traditional lead-acid chargers too (the ones without "Desulfate" mode) as long as the current levels do not exceed lithium battery charge specification. A traditional lead-acid charger that reaches 14.4-14.6 volts will fully charge the battery. Chargers that do not exceed 13.6 volts will only charge the battery to 50% capacity or less.
