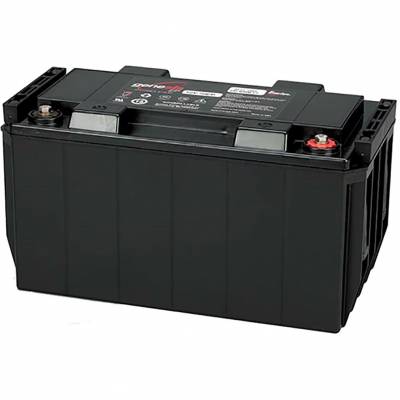

Product Specifications for EnerSys Genesis G70EP 12V 72Ah Sealed Lead Acid Battery [0771-2001]
| BM Part #: | G12V70AH10EP |
|---|---|
| Voltage: | 12 Volt |
| Capacity: | 72 Ah |
| Type: | AGM |
| Length: | 12.95" |
| Width: | 6.54" |
| Height: | 6.85" |
| Shipping Weight: | 53.50Lbs |
| Warranty: | 2 Year |
- Thin Plate Pure Lead (TPPL) Technology: Delivers outstanding energy density and high stable voltage output, so your equipment gets the consistent power it needs throughout the discharge cycle.
- Up to 400 Deep Discharge Cycles: Rated for up to 400 cycles at 80% depth of discharge, making this battery a dependable long-term investment for cyclic applications.
- Extreme Temperature Tolerance: Operates reliably from -40°F to 176°F, handling environments that range from cold storage facilities to high-heat industrial installations.
- Up to 24-Month Shelf Life: Holds its charge for up to two years in storage at 68°F, giving you maximum flexibility for stocking inventory or staging project deployments.
- Non-Spillable, Flexible Mounting: Sealed AGM design allows installation in any position except inverted — no separate battery room needed, and safe for use around people in offices and medical environments.
- Maintenance-Free Operation: No water additions or routine servicing required, reducing the total cost of ownership over the life of the battery.
Product Description
When your equipment demands serious, reliable power, the EnerSys Genesis G70EP delivers. This 12-volt, 72Ah sealed lead acid battery is built on Thin Plate Pure Lead (TPPL) technology — a design that packs exceptional energy into a compact, rugged package. Whether you're protecting a critical UPS system, keeping medical equipment running, or supporting a telecom installation, the G70EP is engineered to perform when it matters most.
Built for Demanding Applications
The G70EP fits comfortably into a wide range of professional and industrial settings. It's a trusted choice for:
- Uninterruptible Power Supply (UPS) systems
- Medical equipment
- Telecommunications infrastructure
- Renewable energy storage
- Computer backup systems
- General electronics
Its non-spillable AGM (Absorbent Glass Mat) construction means it can be safely used in offices, hospitals, and other occupied spaces — no dedicated battery room required. It can be mounted in virtually any orientation except inverted, giving installers real flexibility in tight or unconventional spaces.
Performance You Can Count On
The G70EP is rated for up to 400 charge/discharge cycles at 80% depth of discharge, making it a strong performer in cyclic applications. It also handles fast recharging well, so downtime stays short. When you're not actively using it, the G70EP holds its charge for up to 24 months in storage at 68°F (20°C) — a major advantage for projects where batteries need to sit on the shelf before deployment.
Temperature extremes are no problem either. With an operating range of -40°F to 176°F (-40°C to 80°C, with optional metal jacket), the G70EP keeps working in environments that would challenge lesser batteries.
Quality Construction, Safety Certified
Every G70EP is built with a UL94 V-0 flame retardant housing that's highly resistant to shock and vibration. The battery uses self-regulating pressure relief valves and high-grade microporous glass mat separators to keep things safe and maintenance-free — no water additions, no mess, no hassle.
The Genesis G70EP carries UL recognition (UL File No. MH12544) and is manufactured under ISO 9001 and ISO 14001 certified processes. It's also approved as non-hazardous cargo for land, sea, and air transport, which simplifies shipping logistics for distributors and project managers alike.
Specifications at a Glance
- Voltage: 12V
- Capacity: 72Ah (C10 rate)
- Dimensions (L x W x H): 13.02 x 6.62 x 6.93 inches
- Weight: 53.5 lbs
- Terminals: M6 Female
- Chemistry: TPPL Valve Regulated Lead Acid (VRLA) AGM
Frequently Asked Questions
What is the capacity of the EnerSys Genesis G70EP?
The G70EP has a nominal capacity of 72Ah at the C10 rate (discharged to 1.80V per cell at 68°F). It also delivers 72Ah at the C8 rate, making it a strong performer across a range of discharge timeframes.
What are the dimensions and weight of the G70EP?
The G70EP measures 13.02 inches long by 6.62 inches wide by 6.93 inches tall and weighs approximately 53.5 lbs. It uses M6 female bolt terminals for a secure, reliable connection.
Can the G70EP be mounted on its side?
Yes. Thanks to its sealed, non-spillable AGM design, the G70EP can be installed in any orientation except fully inverted (upside down). This makes it a flexible option for installations where space is limited or unconventional mounting is required.
What types of equipment is the G70EP designed for?
The G70EP is well suited for UPS systems, medical equipment, telecommunications infrastructure, renewable energy storage, computer backup systems, and a broad range of electronics applications. Its rugged construction also makes it a good fit for high-vibration or high-temperature industrial environments.
Is the G70EP safe to ship by air?
Yes. The Genesis G70EP is classified as a non-spillable battery and approved as non-hazardous cargo for land, sea, and air transportation, meeting the requirements of ADR/RID, IMDG, and IATA regulations respectively.
Does the G70EP require any maintenance?
No. The G70EP is completely maintenance-free. There's no need to add water or perform routine service. The sealed VRLA design handles pressure regulation automatically through built-in relief valves.
