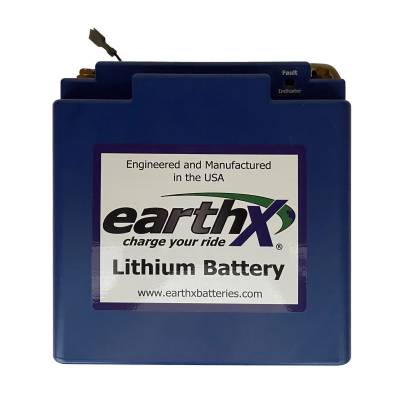

Product Specifications for EarthX ETX900-VNT Lithium Battery for Experimental Aircraft
| BM Part #: | ETX900-VNT |
|---|---|
| Voltage: | 13.2 Volt |
| Capacity: | 16 Ah |
| Type: | LiFePO4 |
| Length: | 6.5" |
| Width: | 3.1" |
| Height: | 6.6" |
| Cold Cranking Amps: | 400 CCA / 840 PCA |
| Shipping Weight: | 5.40Lbs |
| Warranty: | 2 Year Factory Direct |
| Product Manual: | Download |
| Datasheet: | Download |
| Charging Amps | Charging Time |
|---|---|
| 1 amp | 16 hours |
| 5 amp | 3 hours |
| 20 amp | 45 min. |
- This item is not eligible for free shipping.
- Designed for in cabin installations!
- Built-in fault indicator can be programmed into your EFIS or wires to a 12V LED light on your control panel.
- Battery Management System protects the battery cells from damage.
- Ensures charge levels are equally balanced 100% of the time.
- Optimizes performance and power for longer life.
- Will shutoff after 95% energy drainage to prevent cell damage.
- Overcharge protection if readings exceed 15.2 volts, blocking excessive voltage from entering battery while still allowing proper output.
- Very low self-discharge rate. Can hold a charge for over six months when completely disconnected.
- Lithium batteries will not corrode or sulfate.
- Higher starting voltage when engine cranking means faster starts (when compared to lead acid batteries).
- Meets all of the DO-311a lithium battery use in aircraft testing requirements. This is not a TSO or PMA part number.
Product Description
Designed for in-cabin installations!
EarthX is proud to be one of the most trusted brands in the experimental aircraft market.
EarthX's ETX900-VNT lithium battery is based on their ETX900 design; the same cranking power, capacity, and electronic protections (BMS). What sets it apart is the built-in thermal runaway containment and venting for in-cabin installation. The venting tube is 6 ft long, 1/4" inside diameter, and 5/16" outside diameter. The battery is light-weight and can be used in aircraft with an alternator/generator output of 80 amps or less and smaller than 550ci. The ETX900-VNT meets all of the DO-311a lithium battery use in aircraft testing requirements. This is not a TSO or PMA part number.
This battery features an LED battery fault light indicator on the battery itself, which can be programmed into your EFIS or wired to your aircraft control panel with a simple 12V LED light (sold separately) that alerts you to the state of charge and state of health of the battery. (see manual for details)
The battery management system (BMS) keeps all cells charged equally and protects them from:
- Over discharge
- Over charge
- Short circuit
- Heat
